26
AF-R100CX
AF-R120CX
RUNNING CONDITION
Note:
1. Select mode of the Running Condition of a Room Air Conditioner.
SELECTOR................................................HIGH COOL
TEMPERATURE .................................................... 64°F
2. Data of Performance Curve is measured between 40RH% and 70RH%.
If you measure the Room Air Conditioner above or below this rating, the data may miss the range of the performance
curve.
3. Outlet air temp. is influenced by the method of measurement. Measurement examples are shown.
4. Use power input data when checking the Running Condition.
RUNNING CONDITION FOR
MODEL AF-R100CX

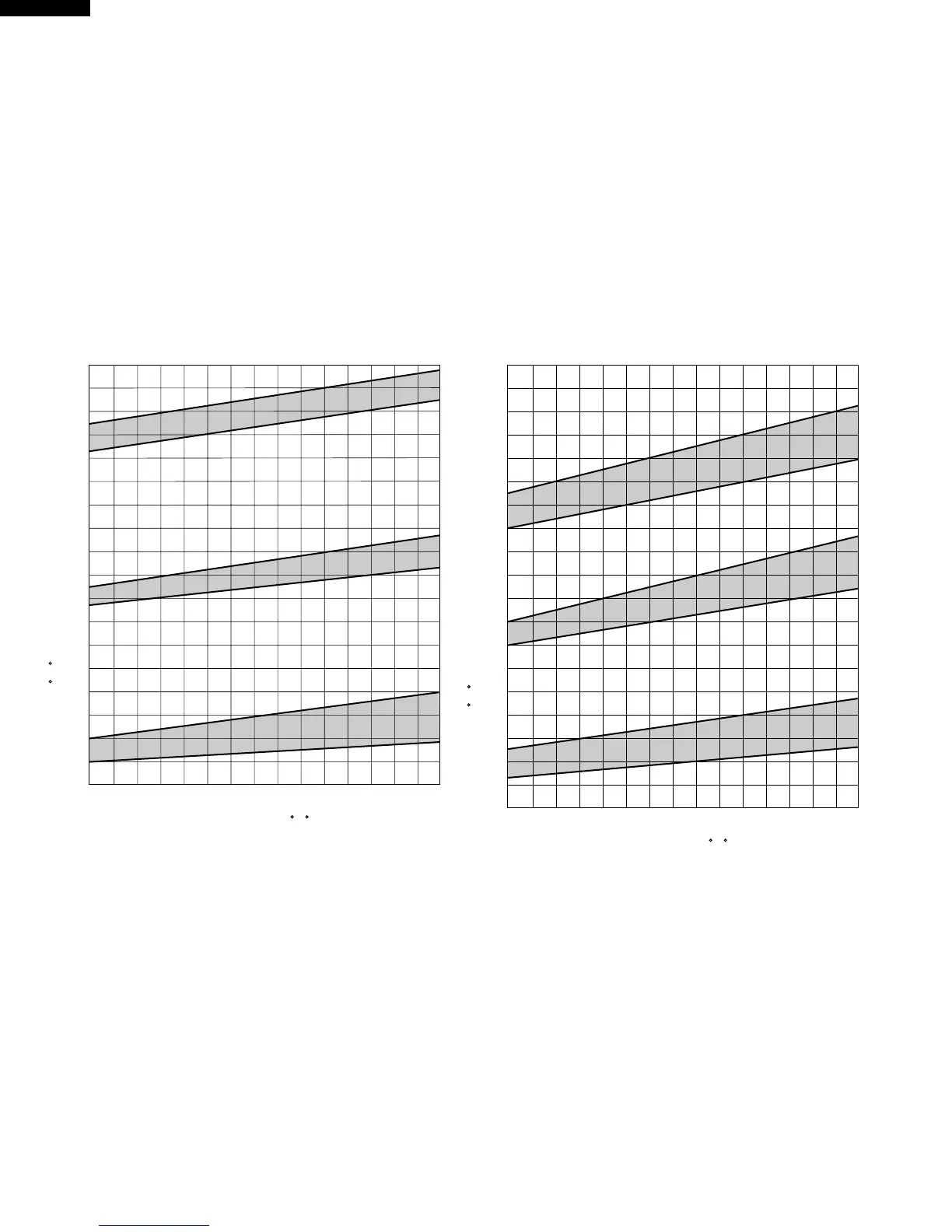

PERFORMANCE CURVE
RUNNING CONDITION FOR
MODEL AF-R120CX
PERFORMANCE CURVE
Outside air temp. C( F)
Outlet air temp. C ( F)
25 30 35 40
5
10
15
20
25
9
10
11
12
13
1100
1200
1000
900
800
1300
1400
1500
Line current(Amp.) Power input (Wa tt)
(41)
(50)
(59)
(68)
(77)
30
(88)
(77) (86) (96)
(104)
Outside air temp. C( F)
Outlet air temp. C ( F)
25 30 35 40
10
15
20
25
6
7
8
9
10
900
1000
800
700
600
1100
Line current(Amp.) Power input (Wa tt)
(50)
(59)
(68)
(77)
30
(88)
35
(96)
(77) (86) (96)
(104)
