6
AF-R100CX
AF-R120CX

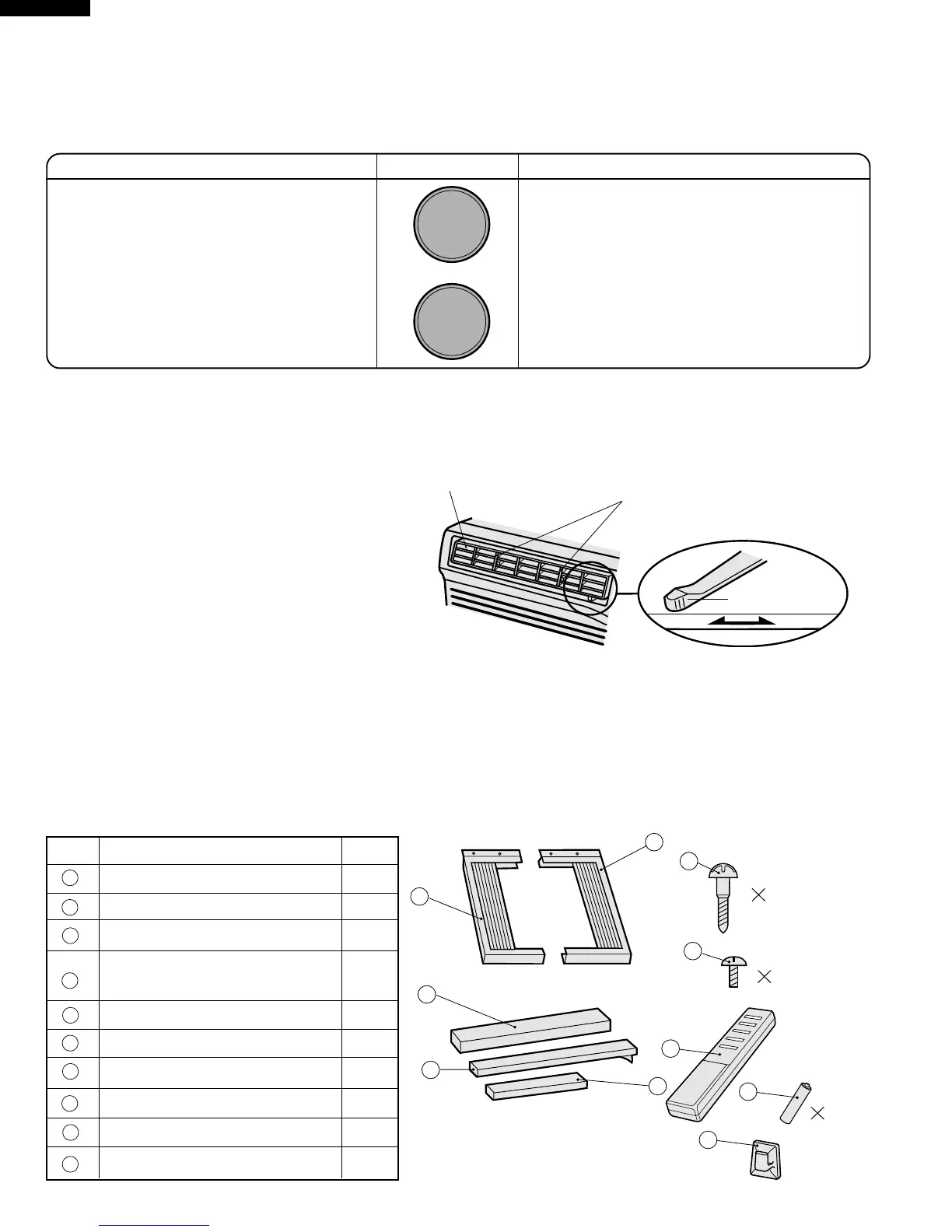

ITEMS PACKED WITH THIS UNIT
No.
6
8
1
2
3
4
5
7
6
8
9
10
ENERGY
SAVER
ENERGY
SAVER
ENERGY SAVER
During normal operation, the thermostat automatically controls cooling and the fan runs continuously. When the
ENERGY SAVER is selected, the thermostat automatically controls cooling and the fan automatically stops when
the compressor is not operating. (Fan will stop 30 seconds after the compressor stops.)
NOTE: ENERGY SAVER cannot be set during FAN ONLY mode operation.
TO CHANGE AIR FLOW DIRECTION
Adjust the louvers to change the direction of air flow for uniform and efficient cooling of the room.
EXHAUST
If air in your room is stale, set the EXHAUST lever
to the OPEN position. This will exhaust stale air to
the outside. The EXHAUST lever should normally
be kept in the CLOSED position during cooling for
maximum efficiency.
During cooling operation
1. Touch ENERGY SAVER pad.
2. To cancel, touch ENERGY SAVER pad
again.
Procedure Pad Display / Indicator
• ENERGY SAVER indicator will light.
• ENERGY SAVER indicator will go off.
7
6
5
4
3
2
1
Accessories Q'ty
Right closure assembly 1
Left closure assembly 1
Window sash foam seal 1
Window sash foam seal
(adhesive type)
1
Bottom gasket 1
Screws(L=1", 25.4mm) 8
Screws(L= 13/ 32", 10mm) 6
Remote control 1
Battery 2
Remote control hook 1
8
9
10
2
INSTALLATION INSTRUCTIONS
CLOSED OPEN
EXHAUST Lever
Vertical louvers
Adjusts LEFT/RIGHT air flow
Horizontal louvers
Adjusts UP/DOWN air flow
To Next Page
