COOLING OPERATION
1. Touch POWER ON/OFF pad.
• The unit is preset at 74°F and HIGH
COOL. This will show in the display
when the power is first turned on.
2. To turn off the unit, touch POWER ON/
OFF pad again.
• POWER indicator and SELECTOR
indicator (HIGH COOL) will light.
• POWER indicator and SELECTOR
indicator will go off.
HOW TO OPERATE
OPERATION INSTRUCTIONS
2
1
SELECTOR indicator
Receiver window for remote control
signal
Display
SELECTOR pad
TIMER ON/OFF pad
TIMER indicator
UNIT
CONTROL PANEL
TEMPERATURE setting pad
----Lower temp.
----Raise temp.
ENERGY SAVER pad
ENERGY SAVER indicator
POWER ON/OFF pad
POWER indicator
6
5
4
3
2
1
7
11
10
9
8

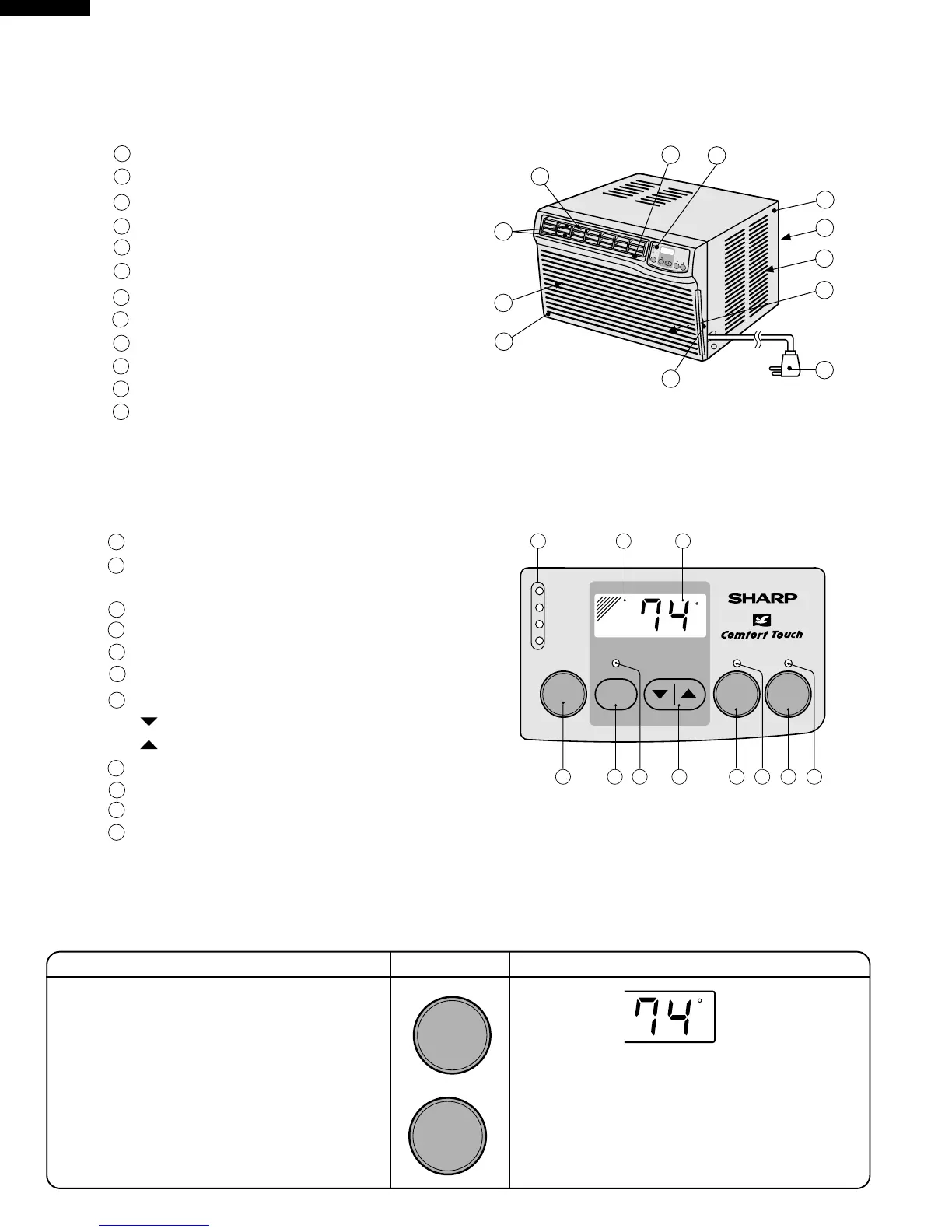

Front panel
Air inlet (Indoor side)
Louvers
Air outlet (Indoor side)
Exhaust lever
Control panel
Cabinet
Air outlet (Outdoor side)
Air inlet (Outdoor side)
Filter (Pull the filter handle to the right to remove.)
Filter handle
Power cord
3
4
5
6
7
8
9
10
11
12
Procedure Pad Display / Indicator
HIGH COOL
MED COOL
LOW COOL
FAN ONLY
SELECTOR
ENERGY
SAVER
POWER
ON/OFF
TEMP
F
hr
TIMER
ON/OFF
1 2 3
4 5 6 7 8 9 10 11
8
12
1
2
3
4
5
6
7
9
10
11
