AF-R100CX
AF-R120CX
F
hr
TEMP
---Lower temp.
---Raise temp.

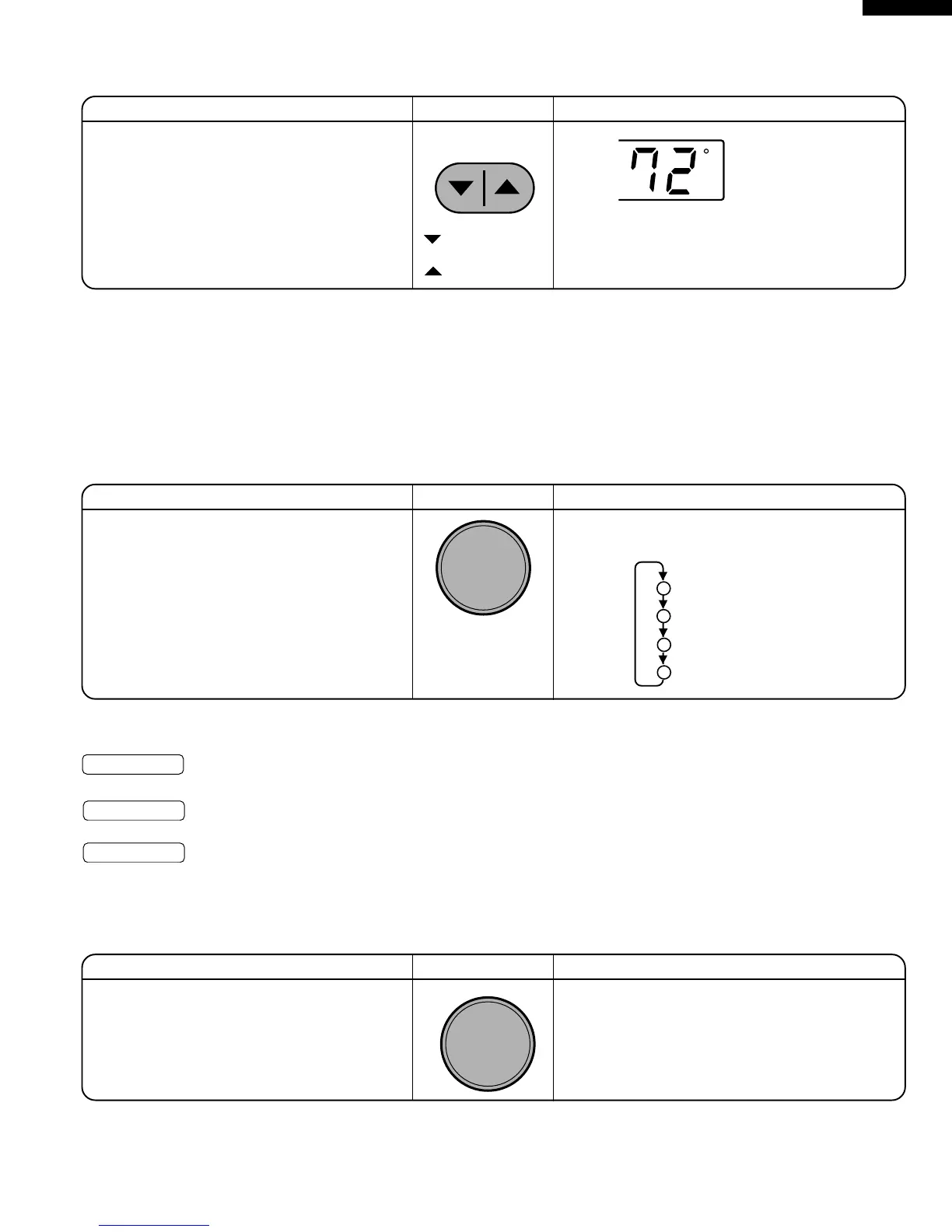

TO CHANGE TEMPERATURE SETTING
• Display will change as you touch the
pad.
The latest temperature setting will be memorized and will appear on the display the next time the unit is
turned on.
NOTE:
In cases of power outages or when the unit is disconnected; when the power is restored or the unit is
plugged in, the unit and display will return to the preset conditions of 74°F and HIGH COOL. The unit will
not automatically turn back on. The user must touch POWER ON/OFF to resume operation.
TO CHANGE FAN SPEED
During cooling operation
Touch the TEMPERATURE setting pad to
adjust the temperature setting.
• It can be set within the range of
64°F to 86°F.
Procedure Pad Display / Indicator
SELECTOR
• SELECTOR indicator will
light in order as you touch.
During operation
Touch SELECTOR pad and select
the desired fan speed.
HIGH COOL
MED COOL
LOW COOL
FAN ONLY
Procedure Pad Display / Indicator
LOW COOL
MED COOL
HIGH COOL
NOTES ON FAN SPEED
Fan and cooling at maximum performance.
Unit is preset to HIGH COOL when first turned on after unit is plugged in.
Fan operates at medium speed; cooling power at medium.
Cooling for sleeping comfort with low fan speed.
FAN ONLY OPERATION
This setting can be used to circulate air whenever cooling is not desired.
The fan will operate at medium speed.
SELECTOR
• SELECTOR indicator FAN ONLY will
light, and the temperature display will
go off. After 5 seconds, the compressor
will stop and the unit will operate in
FAN ONLY mode.
During operation
Touch SELECTOR pad and select FAN
ONLY.
Procedure Pad Display / Indicator
When the unit is turned off, the last fan speed will be stored in memory.
The next time the air conditioner is used, the memorized fan speed will start automatically.
