AF-R100CX
AF-R120CX
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
REF. NO. PART NO. DESCRIPTION Q'TY CODE
SCREWS AND NUTS
6- 1 XTTSD40P12000 Tapping screw 22 AA
6- 2 LX-BZA236JBE0 Special screw 1 AC
6- 3 XHTSD40P08000 Tap tight screw 8 AA
6- 4 LX-NZA148JBE0 Special nut [AF-R100CX] 1 AD
6- 4 LX-NZA136JBE0 Special nut [AF-R120CX] 1 AL
6- 5 LX-HZA001JBE0 Special screw 6 AB
6- 6 XCTSD40P10000 Tapping screw 19 AA
6- 7 LX-NZA074JBE0 Special nut 1 AB
6- 8 LX-NZA028JBE0 Special nut 3 AB
6- 9 XTPSD40P08000 Tapping screw 3 AA
6-10 XCTSD40P06000 Tapping screw 16 AA
6-11 XBPSD40P12J00 Machine screw 2 AB
6-12 LX-CZA038WRE0 Special screw 6 AA
6-13 XHTSD40P10000 Tap tight screw 2 AA
6-14 XTPSD40P12000 Tapping screw 2 AA
A
B
C
D
A
B
C
D
23456
23456
2-10
6-3
2-2
2-14
6-3
6-3
6-3
6-3
6-13
2-11
6-9
1-5
1-57
2-3
2-12
2-4
2-6
2-4
2-15
6-11
6-1
6-14
6-3
2-7
2-9
2-1
2-8
2-13

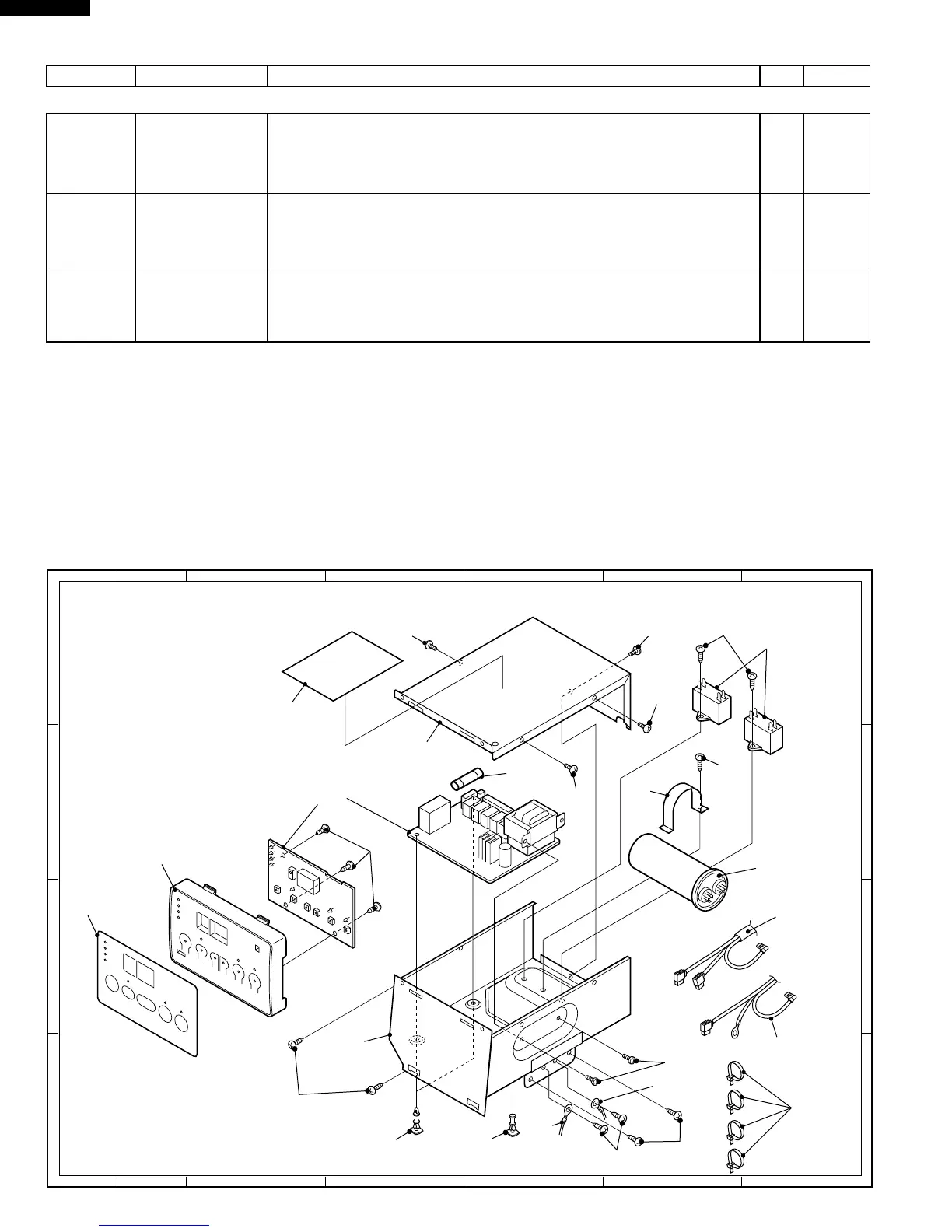

CONTROL BOX PARTS
