INSTALLATION INSTRUCTIONS
Top angle

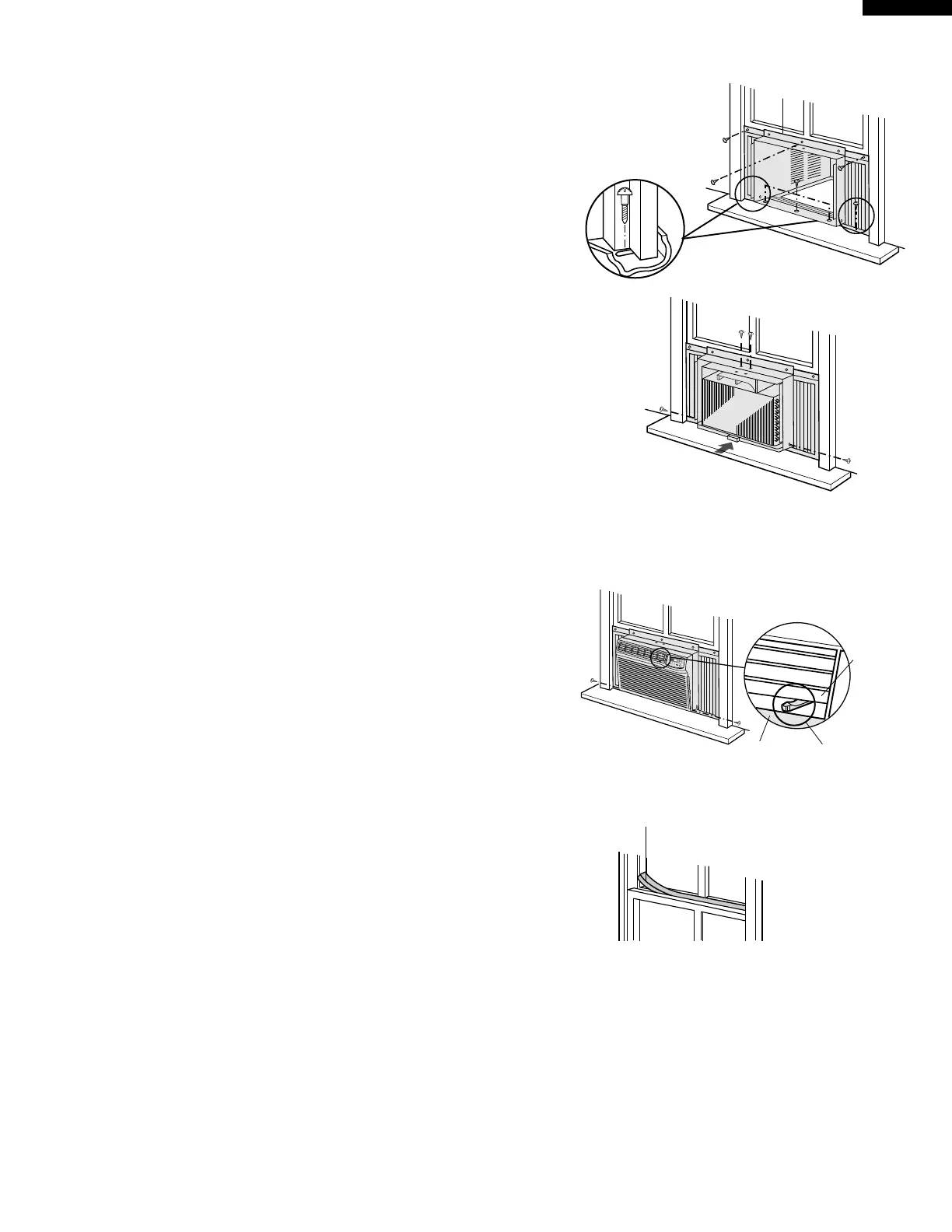

7-1. Secure the cabinet to the window stool with 3 screws (L=1", 25.4 mm),
working from the inside of the cabinet.
7-2. Secure the top angle and the closure assemblies to the window sash with
3 screws (L=1", 25.4 mm).
7-3. Secure the closure assemblies to the sill with 2 screws (L=1", 25.4 mm).
8-1. Slide the chassis back into the cabinet.
8-2. Replace the 4 screws removed in step 3 to the top and side of the
cabinet.
10.Cut the window sash foam seal to the proper length and seal the
opening be- tween the top of the inside window sash and the outside
window sash.
Window sash foam seal
9-1. Replace the front panel. Slip the exhaust lever through the opening
between horizontal louver and front panel, and then hook the cabinet top.
CAUTION: Take care not to damage the exhaust lever with the front
panel.
9-2. Screw the front cabinet on at the bottom corners with 2 screws removed
in step 2.
Exhaust Lever
Front
Panel
Horizontal
Louver
To Next Page
