10
AF-T908X
AF-R908X
AF-R1108X
AF-R1208X

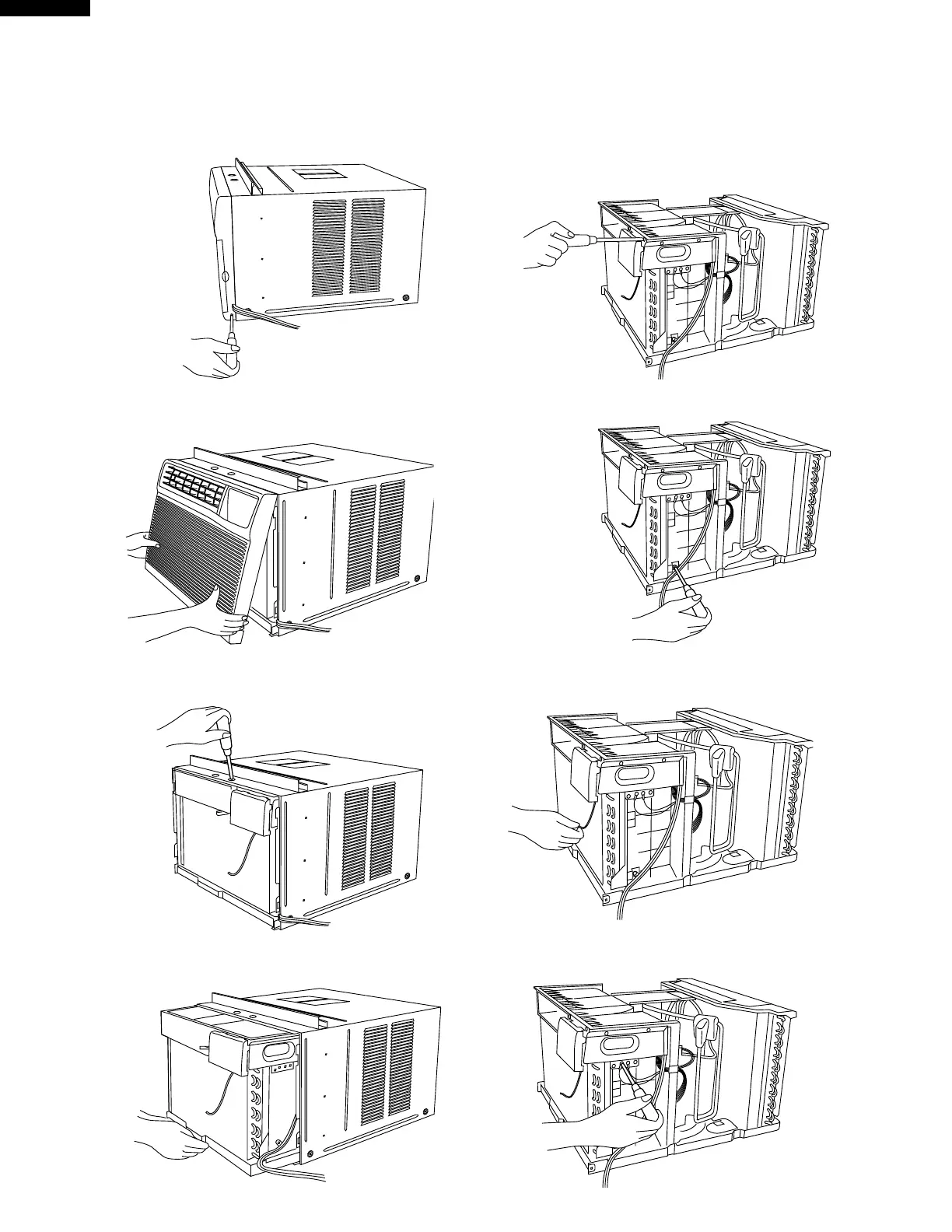

DISASSEMBLING PROCEDURE
CAUTION: DISCONNECT THE ROOM AIR CONDITIONER FROM THE POWER SUPPLY BEFORE ANY SERVICE
1. Unscrew the two screws holding the front panel on each
side.
2. Remove the front panel by pulling it at the lower corner
toward you about 1 inch and next lift up and pull it
toward you.
3. Unscrew the four screws holding the cabinet.
Two screws are on top side.
Two screws are on each side.
4. Slide the chassis away from the cabinet by pulling on
each corner of the base pan.
5. Unscrew the four screws holding the control unit.
Two screws are on front side.
Two screws are on right side.
6. Unscrew the one screw holding the power supply cord.
7. Pull out thermistor holder.
8. Unscrew the one screw holding earth wire code.
To Next Page
