11
AF-T908X
AF-R908X
AF-R1108X
AF-R1208X

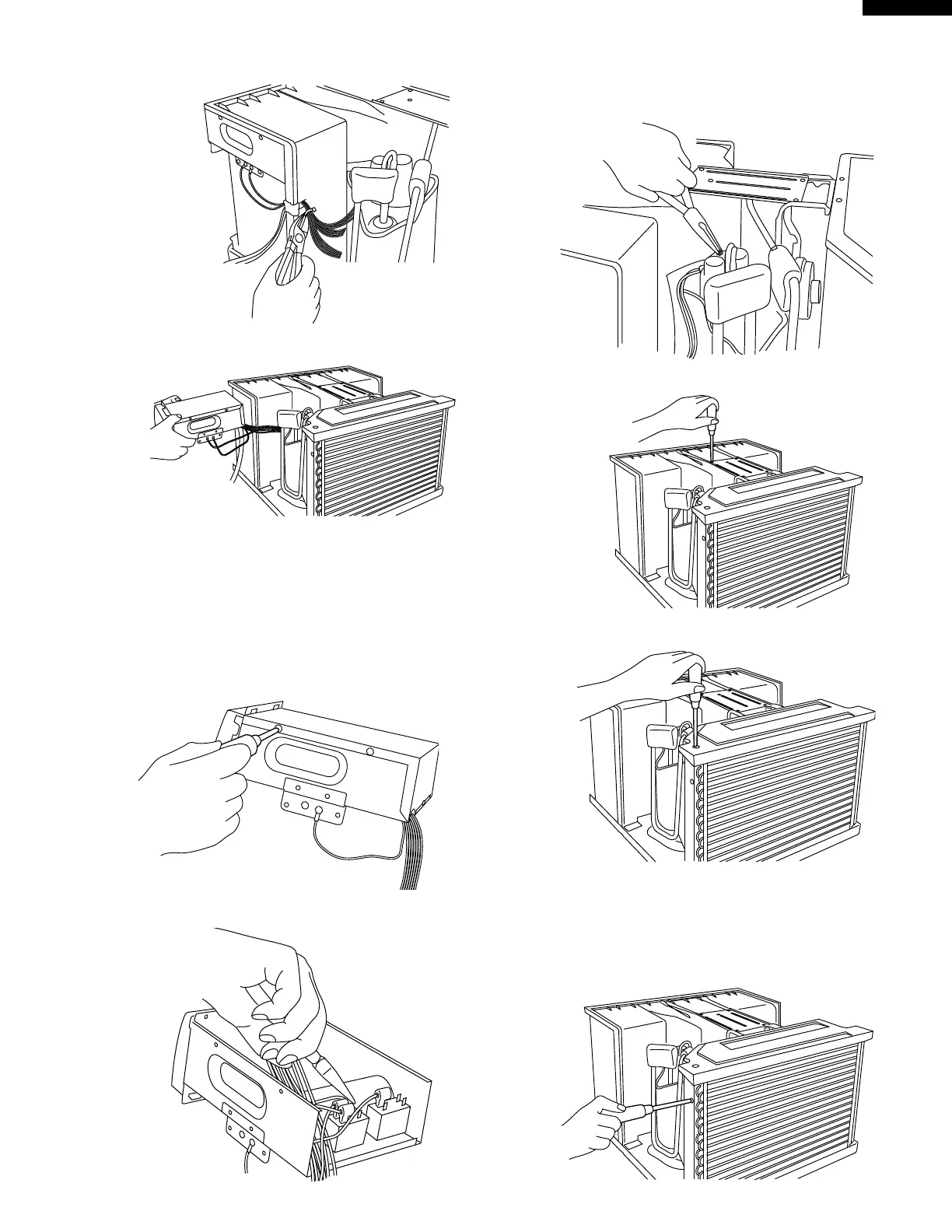

9. Cut the tfixing band holding the wires.
10.Remove the control unit.
11.Unscrew the four screws holding control box cover.
Two are on the right side, one is on the left side, one is
on the back side.
CAUTION: DISCHARGE THE FAN MOTOR CAPACITOR
AND RUNNING CAPACITOR BEFORE
TOUCHING THOSE CAPACITORS OR
OTHER COMPONENTS OR WIRING.
13.Remove the putty and unfasten the one nut at the top of
compressor holding the terminal cover.
Then remove the wiring connector of the compressor
cord.
12.Detach each terminals of fan motors by using long-nose
pliers.
16.Unscrew the six screws holding the condenser and
condenser shroud.
Two screws are on the back side.
Four screws are on the each side.
Unscrew the two screws holding the condenser cover
(AF-R1208X ONLY).
15.Unscrew the four screws holding the shroud cover.
14.Unscrew the five screws holding the connecting stay.
To Next Page
