12
AF-T908X
AF-R908X
AF-R1108X
AF-R1208X

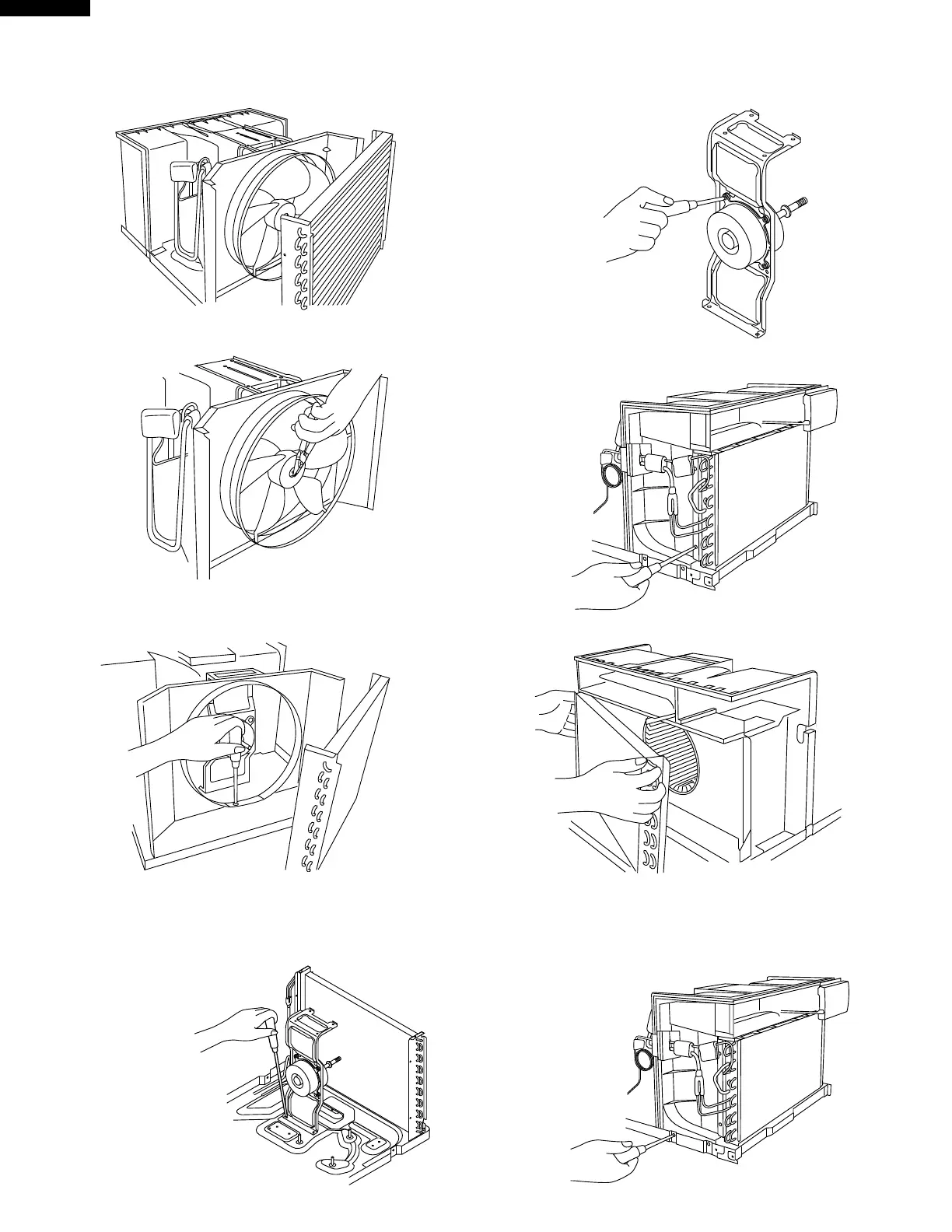

17.Remove the condenser by liftting up about 1 inch and
pull it toward you and move to right.
21.Unscrew the four screws holding the fan motor.
Note: Torque is 7 - 10 kgf.cm at re-installing.
18.Unfasten the one nut holding propeller fan by rotating it
clockwise. And remove the propeller fan.
19.Unscrew the three screws holding condenser shroud.
Note: Seal three female screws with siliconsealer
before re-installing.
20.Unscrew the two screws holding fan motor angle
assembly, and cut wire fixing band holding fan motor
lead wire.
Note: Seal two female screws with siliconsealer
before re-installing.
22.Unscrew the four screws holding the evaporator.
Two are on left side.
Two are on right side.
23.Remove the evaporator.
24.Unscrew the four screws holding the bulkhead.
Three screws are on the each side.
One screw is on the bottom side.
Note: Seal one female screws with siliconsealer
before re-installing.
To Next Page
