FOR OUTDOOR UNIT MODEL AU-N45DP2 / AU-N56DP2
DISASSEMBLING PROCEDURE OF THE CONTROL BOX

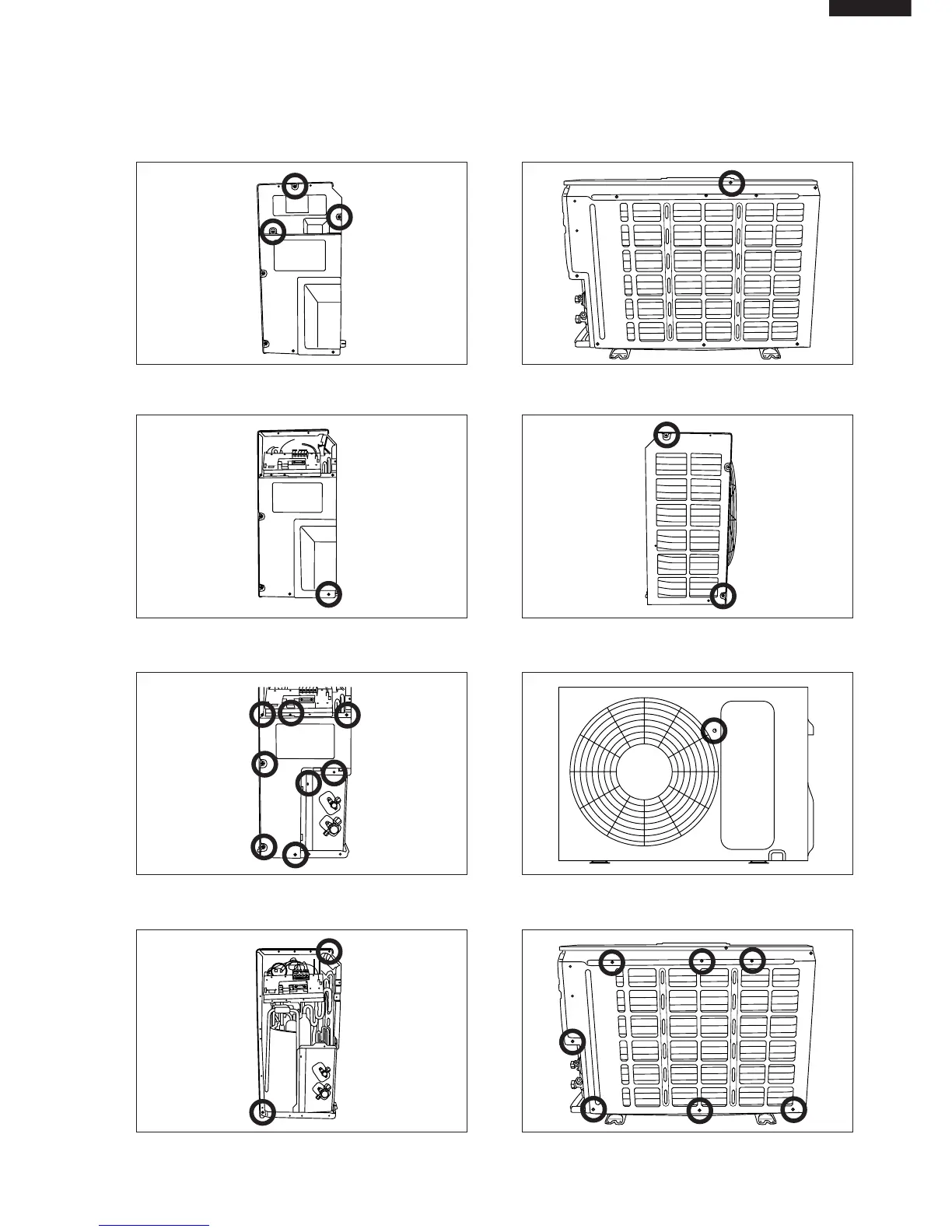

1. Loose 3 screws fixing the control cover.
2. Loose 1 screw fixing the side cover.
3. Loose 8 screws fixing the side cover R.
4. Loose 2 screws fixing the cabinet (left side).
5. Loose 1 screw fixing the cabinet (rear side).
6. Loose 3 screw fixing the cabinet (right side).
7. Loose 1 screw fixing the cabinet (front side).
8. Loose 7 screws fixing the rear cabinet.
