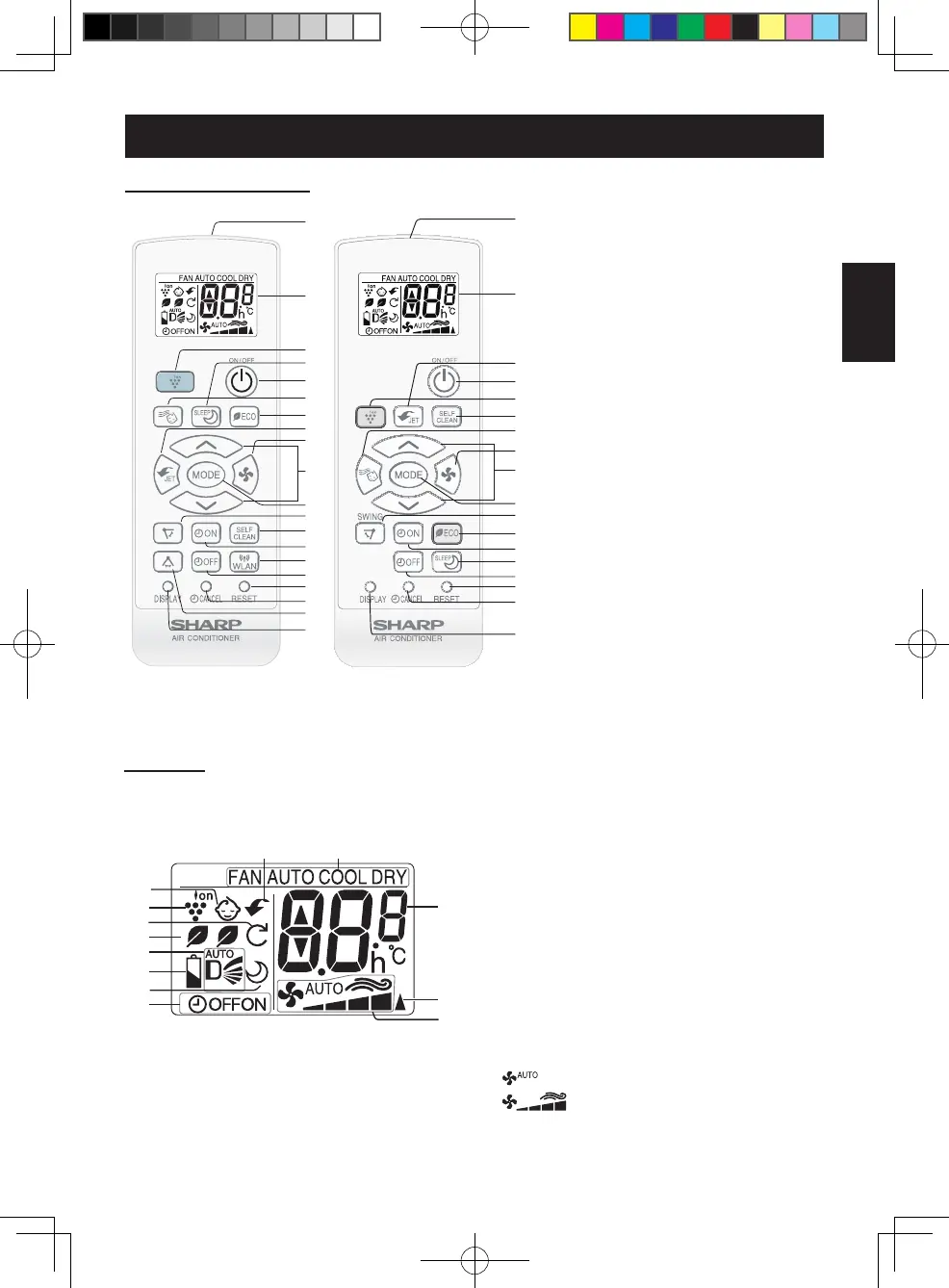

REMOTE CONTROL
1
TRANSMITTER
2
DISPLAY
3
PLASMACLUSTER Button
4
BEST SLEEP Button
5
ON/OFF Button
6
BABY MODE Button
7
ECO Button
8
POWERFUL JET Button
9
FAN Button
10
THERMOSTAT Button
11
MODE Button
12
SWING Button
(Vertical direction)
13
SELF CLEAN Button
14
ON TIMER Button
15
WLAN Button
16
OFF TIMER Button
17
RESET Button
18
TIMER CANCEL Button
19
SWING Button
(Horizontal direction)
20
DISPLAY Button
1
POWERFUL JET Symbol
2
MODE Symbols
FAN / AUTO / COOL / DRY
3
BABY MODE Symbol
4
PLASMACLUSTER Symbol
5
SELF CLEAN Symbol
6
ECO Symbols
7
VERTICAL AIR FLOW Symbol
8
BATTERY Symbol
9
BEST SLEEP Symbol
10
ON TIMER / OFF TIMER Indicator
11
TEMPERATURE Indicator
12
TRANSMITTING Symbol
13
FAN SPEED Symbols
: AUTO
: Manual setting
DISPLAY
2 1
6
5
4
3
10
9
8
7
11
13
12
PART NAMES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
8
5
3
13
6
9
10
11
12
7
14
4
16
17
18
20
Premium models Standard models
