Audio amplifi ers or active speakers
In the connection wizard set “HiFi/AV amplifi er” under “AV setup ->
Audio equipment selection”, “HiFi/AV amplifi er”. The connection wizard
allows confi guration of different audio amplifi ers (stereo amplifi ers,
surround amplifi ers, analogue or digital) with different sound formats
(Dolby Digital, dts, MPEG and Stereo/PCM). Have a look at the audio
amplifi er manual.
Select “Audio transmission” “digital” for digital audio amplifi ers. Connect
the digital audio output of the TV “AUDIO DIGITAL OUT” to the digital
audio input of the digital amplifi er.
Assign the digital audio input to the socket through which the corre-
sponding picture is transmitted (e.g. EXT2 if a DVD player is connected
there). Then the digital sound is passed to the digital audio output of the
TV set and fed to the external audio amplifi er via this.
Specify which sound formats can be decoded with their digital amplifi er
(Dolby Digital, MPEG, dts).
Specify under “Type of Amplifi er” whether the digital amplifi er is a
“Stereo amplifi er” or “Surround amplifi er”.
If it is a surround amplifi er, specify whether or not the TV speakers are to
be used as centre loudspeakers. Connect the centre output of the ampli-
fi er to the centre input of the TV with a cinch cable if necessary.
Note: do not use the centre speaker connection on the amplifi er but the
pre-amplifi er centre output!

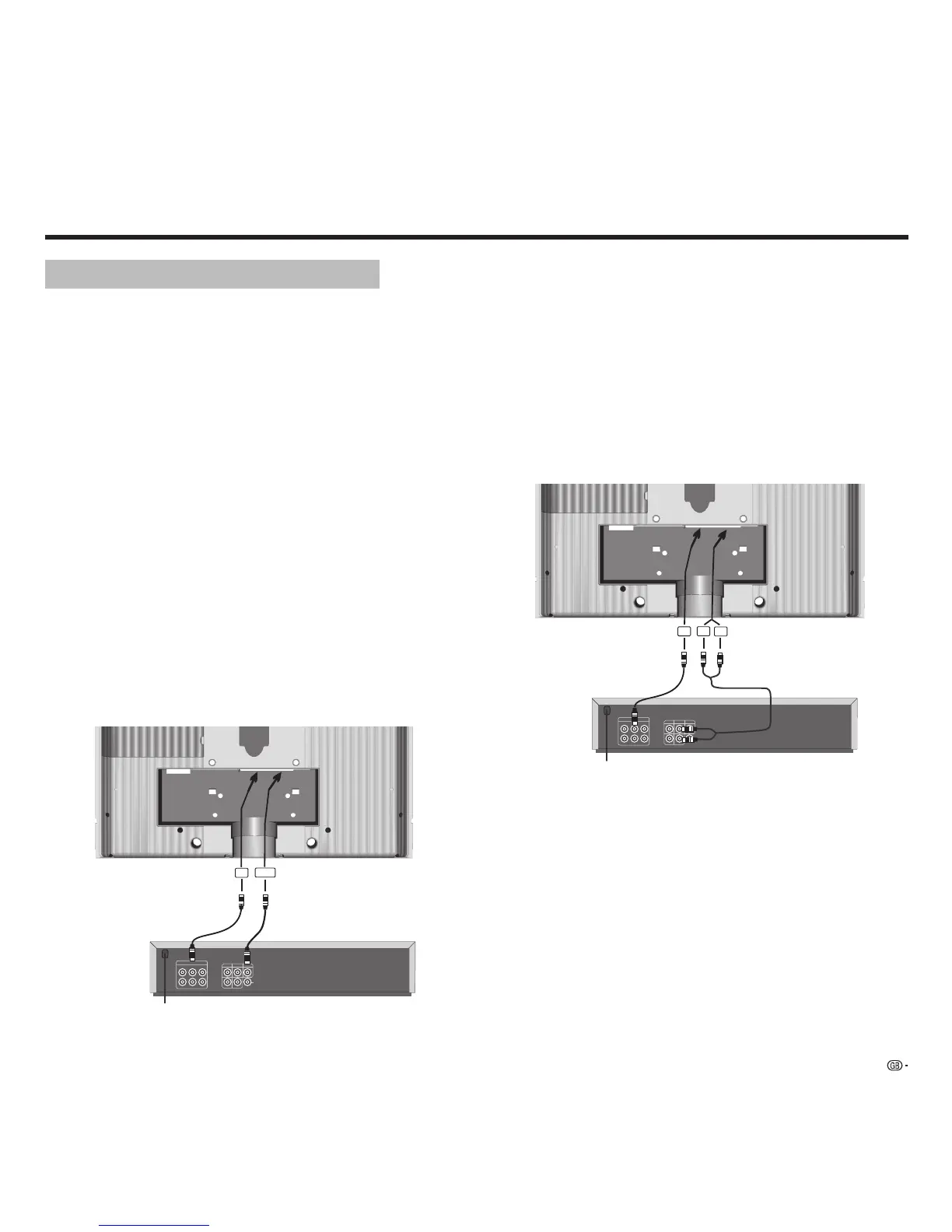

PREOUT
FR
FL
SL SR SUB
C
LL
RR
AUX1 IN
DIGITAL
IN
DIGITAL
OUT
AUX OUT AUX 2
C
OUT
AUDIO
DIGITAL
Select “Audio transmission” “analogue” for analogue audio amplifi ers.
The sound for the analogue amplifi er is transmitted via the AUDIO OUT
L/R connections of the TV to the audio amplifi er. Connect the amplifi er
with two cinch cables.
Specify under “Type of Amplifi er” whether the digital amplifi er is a
“Stereo amplifi er” or “Surround amplifi er”.
If it is a surround amplifi er, also specify whether or not the TV speakers
are to be used as centre loudspeakers. Connect the centre output of the
amplifi er to the centre input of the TV with a cinch cable if necessary.
Note: do not use the centre speaker connection on the amplifi er but the
pre-amplifi er centre output!
PREOUT
FR
FL
SL SR SUB
C
LL
RR
AUX1 IN
DIGITAL
IN
DIGITAL
OUT
AUX OUT AUX 2
C
AUDIO OUT
R
L
If you want to listen to the sound over the TV speakers temporarily, call
the Sound menu with the SOUND button, select “Sound via” and then
“TV”.
When connecting active loudspeakers select “Active speakers” in the
connection wizard under “AV setup -> Audio equipment selection”. The
sound for the active loudspeakers is transmitted via the “AUDIO OUT
L/R“ connections to the active loudspeakers. Make connections to the
active loudspeakers with the cinch cables.
The audio settings on the TV set when active loudspeakers are con-
nected. When using an external audio amplifi er, make the audio settings
on the audio amplifi er.
