6

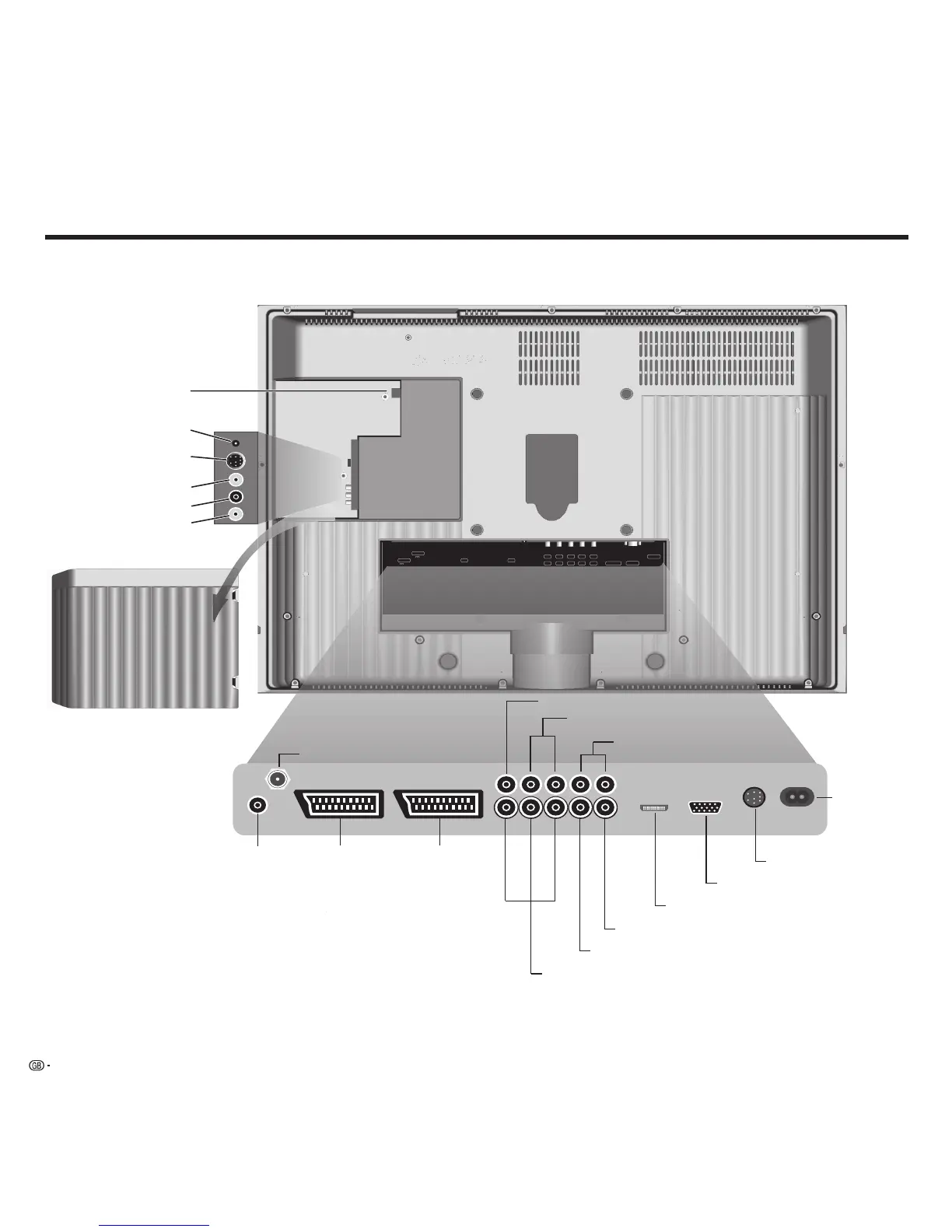

Connections to rear panel
89352.001
SERVICE
VGA/XGA
HDTV IN
AUDIO OUT
AUDIO DIGI TAL
IN
LR
OUT
AUDIO IN
L
SD/HD-COMPONENT IN
C/P
rr
YC/P
bb
R
C
AV 2
RGB / YUV
( )
AV 1
ANT-TV
ANT-SAT
13/18 V /350 mA
5 V /80 mA
HDMI DVI
( )
Common
Interface
Headphones
Video input
Audio input right
Removing the terminal cover
Center audio input (analog)
Audio input left/right (analog)
Audio output left/right (analog)
Socket for
power cable
Service socket
PC input - PC IN
HDMI input - EXT 5
Digital audio output
Digital audio input
Component video inputs (Cb/Pb-Cr/Pr-Y) - EXT 3
✳ Satellite connection socket
- ANT-SAT (13/18V=/350 mA)
Antenna socket VHF/UHF/cable - ANT-TV
( DVB-T 5V=/80 mA)
Caution:
Only if you use an active terrestrial
antenna, switch on the supply voltage (5
Volt). See page 9 under "Antenna".
Euro-AV-
socket
EXT 1
✳ Units with Digital satellite tuner
S-Video input)
(i.e. for camcorder)
Euro-AV-
socket
EXT 2
EXT 4
Press down the hooks to re-
move the cover toward you.
Audio input left
