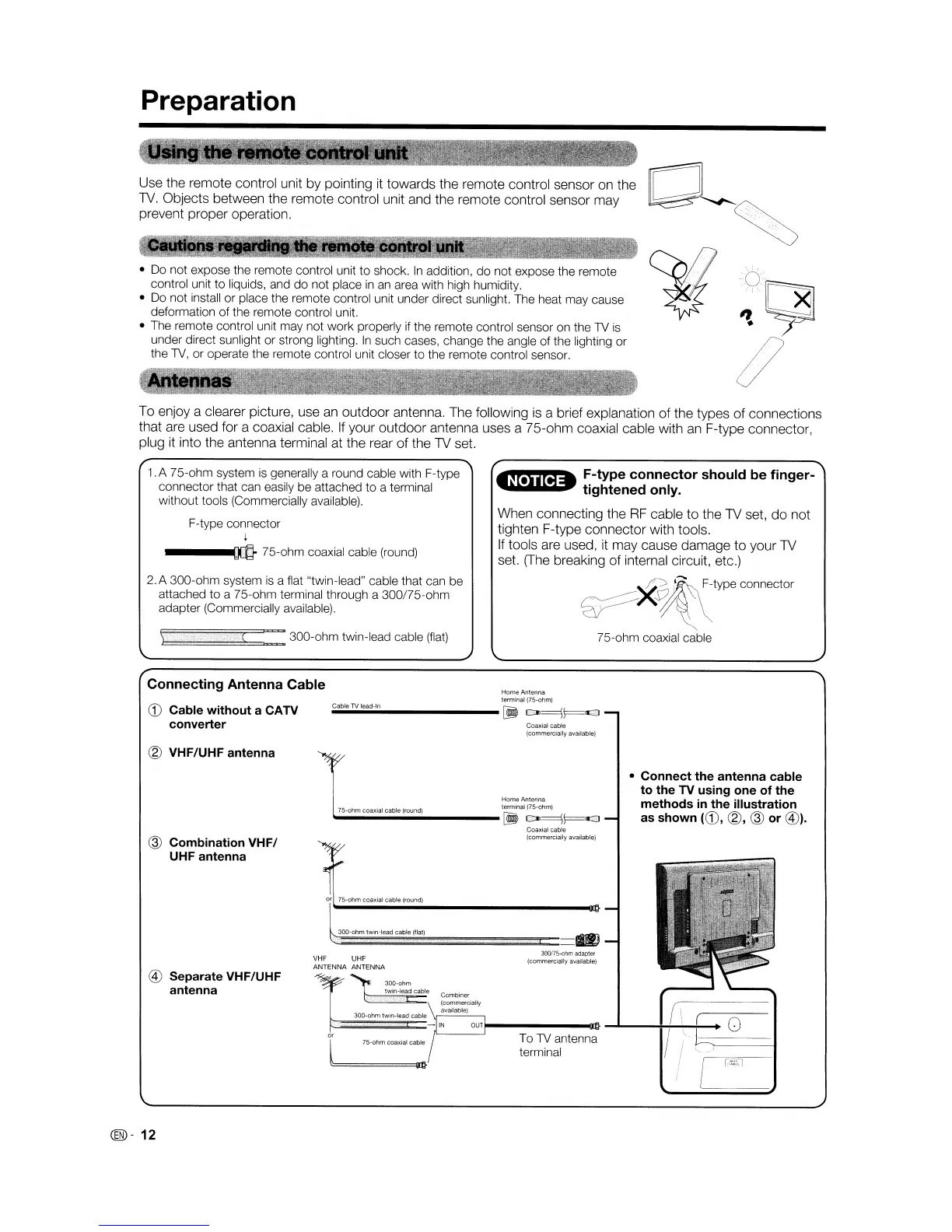

Preparation
Use the remote control unit by pointing
it
towards the remote control sensor on the
TV.
Objects between the remote control unit and the remote control sensor may
prevent proper operation.
• Do not expose the remote control unit
to
shock.
In
addition,
do
not expose the remote
control unit to liquids, and
do
not place
in
an
area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the remote control unit.
• The remote control unit may not work properly
if
the remote control sensor on the TV
is
under direct sunlight or strong lighting.
In
such cases, change the angle of the lighting or
the
TV,
or operate the remote control unit closer to the remote control sensor.
To enjoy a clearer picture, use
an
outdoor antenna. The following
is
a brief explanation of the types of connections
that are used for a coaxial cable.
If
your outdoor antenna uses a 75-ohm coaxial cable with
an
F-type connector,
plug
it
into the antenna terminal at the rear of the TV set.
1.A 75-ohm system
is
generally a round cable with F-type
connector that can easily be attached to a terminal
without tools (Commercially available).
F-
type connector
~
____
• 75-ohm coaxial cable (round)
2.
A 300-ohm system
is
a flat "twin-lead" cable that can be
attached to a 75-ohm terminal through a 300/75-ohm
adapter (Commercially available).
b~~~~~:::
300-ohm twin-lead cable
(flat)
~
F-type connector should be finger-
~
tightened only.
When connecting the
RF
cable to the TV set, do not
tighten F-type connector with tools.
If
tools are used,
it
may cause damage to your TV
set.
(The
breaking of internal circuit, etc.)
~~~::~x~type
connector
75-ohm coaxial cable
Connecting Antenna Cable
CD
Cable without a CATV
converter
Home Antenna
terminal (75-ohm)
_Ca_ble_TV_le_ad_-ln
@i
L2I1D~F=rE8£J
Coaxial cable
(commercially available)
• Connect the antenna cable
to the TV using one of the
methods
in
the illustration
as shown
(CD,
@,
@ or @).
300175-ohmadapter
(commercially available)
Home Antenna
terminal (75-ohm)
-----------
@i
@JID~F=rE8£J
Coaxial cable
(commercially available)
300-ohm
twin-lead cable Combiner
\
(commercially (
available)
""I
300-ohmtwin-lead
cable
~
0
~~~~iit:::-~------~.
-.I----~
.......
---;....-..
.
75-ohm coaxial cable I To
TV
antenna I
terminal
VHF UHF
ANTENNA ANTENNA
@ Separate VHF/UHF
antenna
® VHF/UHF antenna
@ Combination VHF/
UHF antenna
@-
12
Preparation
Use the remote control unit by pointing
it
towards the remote control sensor on the
TV.
Objects between the remote control unit and the remote control sensor may
prevent proper operation.
• Do not expose the remote control unit
to
shock.
In
addition,
do
not expose the remote
control unit to liquids, and
do
not place
in
an
area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the remote control unit.
• The remote control unit may not work properly
if
the remote control sensor on the TV
is
under direct sunlight or strong lighting.
In
such cases, change the angle of the lighting or
the
TV,
or operate the remote control unit closer to the remote control sensor.
To enjoy a clearer picture, use
an
outdoor antenna. The following
is
a brief explanation of the types of connections
that are used for a coaxial cable.
If
your outdoor antenna uses a 75-ohm coaxial cable with
an
F-type connector,
plug
it
into the antenna terminal at the rear of the TV set.
1.A 75-ohm system
is
generally a round cable with F-type
connector that can easily be attached to a terminal
without tools (Commercially available).
F-
type connector
~
____
• 75-ohm coaxial cable (round)
2.
A 300-ohm system
is
a flat "twin-lead" cable that can be
attached to a 75-ohm terminal through a 300/75-ohm
adapter (Commercially available).
b~~~~~:::
300-ohm twin-lead cable
(flat)
~
F-type connector should be finger-
~
tightened only.
When connecting the
RF
cable to the TV set, do not
tighten F-type connector with tools.
If
tools are used,
it
may cause damage to your TV
set.
(The
breaking of internal circuit, etc.)
~~~::~x~type
connector
75-ohm coaxial cable
Connecting Antenna Cable
CD
Cable without a CATV
converter
Home Antenna
terminal (75-ohm)
_Ca_ble_TV_le_ad_-ln
@i
L2I1D~F=rE8£J
Coaxial cable
(commercially available)
• Connect the antenna cable
to the TV using one of the
methods
in
the illustration
as shown
(CD,
@,
@ or @).
300175-ohmadapter
(commercially available)
Home Antenna
terminal (75-ohm)
-----------
@i
@JID~F=rE8£J
Coaxial cable
(commercially available)
300-ohm
twin-lead cable Combiner
\
(commercially (
available)
""I
300-ohmtwin-lead
cable
~
0
~~~~iit:::-~------~.
-.I----~
.......
---;....-..
.
75-ohm coaxial cable I To
TV
antenna I
terminal
VHF UHF
ANTENNA ANTENNA
@ Separate VHF/UHF
antenna
® VHF/UHF antenna
@ Combination VHF/
UHF antenna
@-
