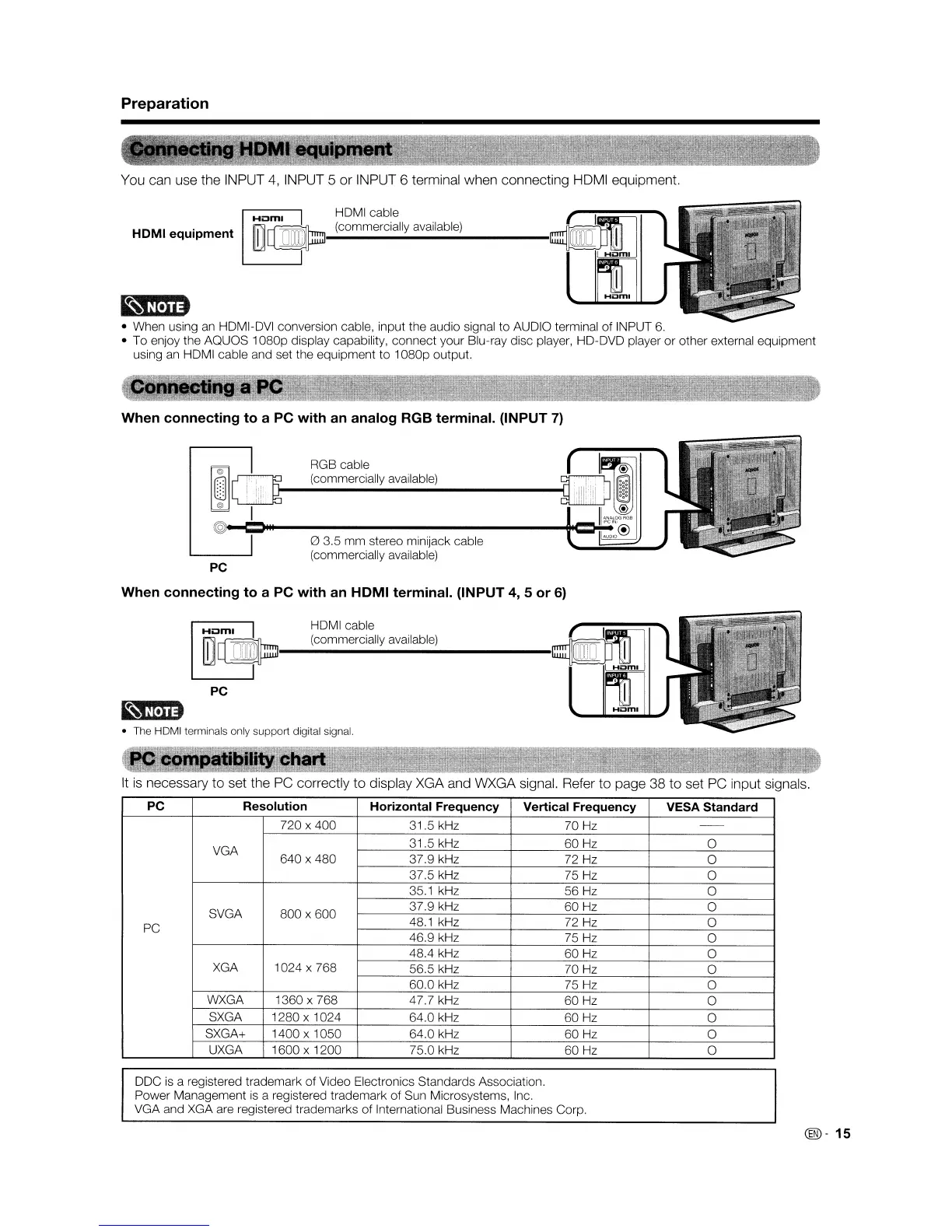

Preparation
You can use the INPUT
4,
INPUT 5 or INPUT 6 terminal when connecting HOMI equipment.
HLlm.
HDMI cable
~
d
m~_(c_om_m_er_c_ia_lly_a_Va_il_ab_le_)
_
HOMI equipment
• When using an HDMI-DVI conversion cable, input the audio signal
to
AUDIO terminal of INPUT 6.
• To enjoy the AQUOS
1080p
display capability,
connect
your Blu-ray disc player, HD-DVD player
or
other external equipment
using an HDMI cable and set the equipment
to
1080p
output.
When connecting to a PC with an analog RGB terminal. (INPUT
7)
RGB cable
iffi]
__
(c_o_m_m_e_rc_ia_ll_y_a_Va_il_a_b_le_)
_
~I
o 3.5
mm
stereo minijack cable
(commercially available)
PC
When connecting to a PC with an
HDMI
terminal. (INPUT 4, 5 or
6)
HDMI cable
(commercially available)
PC
• The HOMI terminals only support digital signal.
It
is
necessary to set the
PC
correctly to display XGA and WXGA signal. Refer to page 38 to set
PC
input signals.
PC Resolution
Horizontal Frequency Vertical Frequency
VESA Standard
720
x
400
31.5
kHz
70
Hz
--
VGA
31.5
kHz
60
Hz 0
640
x
480
37.9
kHz 72 Hz
0
37.5
kHz 75 Hz
0
35.1 kHz
56
Hz
0
SVGA
800
x
600
37.9
kHz
60
Hz
0
48.1 kHz 72 Hz
0
PC
46.9 kHz 75 Hz
0
48.4 kHz
60
Hz
0
XGA
1024
x 768
56.5
kHz
70
Hz
0
60.0 kHz 75 Hz
0
WXGA
1360
x
768
47.7 kHz
60
Hz
0
SXGA
1280
x
1024
64.0
kHz
60
Hz
0
SXGA+
1400
x
1050
64.0
kHz
60
Hz
0
UXGA
1600
x
1200
75.0 kHz 60 Hz
0
DOC
is
a registered trademark of Video Electronics Standards Association.
Power Management
is
a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks
of
International Business Machines Corp.
@-
15
