3

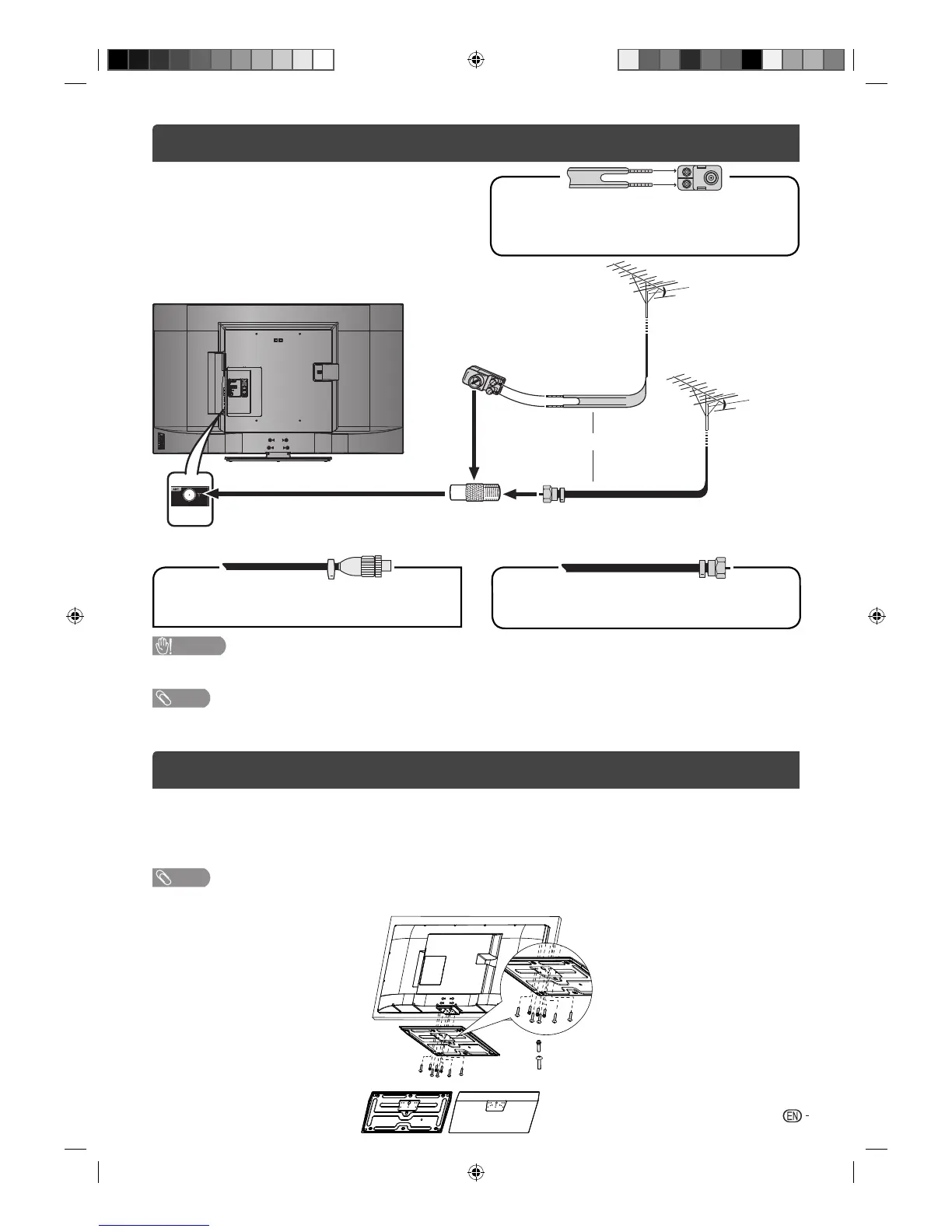

Setting the TV
Connecting the antenna cable
To enjoy a clearer picture, use an outdoor antenna.
VHF/UHF
antenna
or
VHF/UHF
antenna
300-ohm twin-
lead fl at feeder
(not supplied)
75-ohm
impedance
converter
(not supplied)
75-ohm coaxial
cable (round cable)
(not supplied)
To antenna terminal
For Philippine model only
If your outdoor antenna uses a 75-ohm coaxial
cable with a standard DIN45325 plug (IEC 169-2),
plug it into the antenna jack at the rear of the set.
If your outdoor antenna uses a 75-ohm coaxial
cable with F type plug, plug it into the antenna jack
at the rear of the set.
CAUTION
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.
NOTE
• The method of connection differs depending on a type of wires for aerials that you use. Attach an optional conversion plug (for
the Philippines) compatible with the type of wires for arials that you use to the installation device. Make sure to power off the
device for safety when you connect to a wire for aerials.
Attaching the stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
1
Confi rm the screws supplied with the TV.
Screws (4
m
10 mm):
m
3, (4
m
20 mm):
m
5
2
Attach the stand base, insert and tighten the screws into the holes on the bottom of the stand base.
NOTE
• To detach the stand, perform the steps in reverse order.
4x20 mm
4x10 mm
If your outdoor antenna uses a 300-ohm twin-lead fl at
feeder (F type), connect a 300-ohm to 75-ohm impedance
converter and plug it into the antenna jack at the rear of the
set. If you use M type plug, plug it into the antenna jack at
the rear of the set directly.
Antenna adaptor
(supplied for Philippine only)
