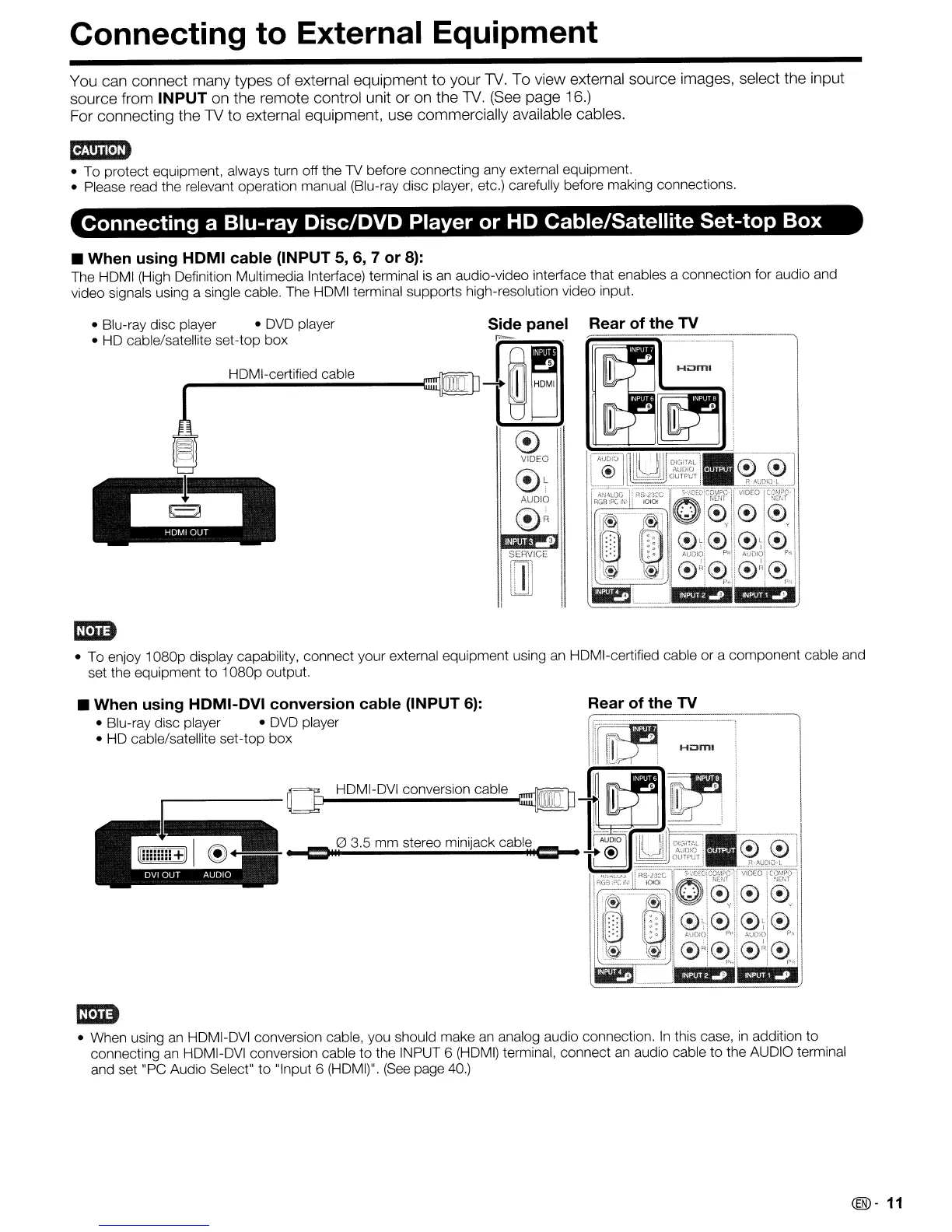

Connecting to External Equipment
You can connect many types of external equipment to your
TV.
To view external source images, select the input
source from
INPUT
on the remote control unit or on the
TV.
(See
page 16.)
For connecting the
TV
to external equipment, use commercially available cables.
EmD
• To protect equipment, always turn off the TV before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
Connecting a Blu-ray Disc/DVD Player or
HD
Cable/Satellite Set-top Box
• When using
HOMI
cable (INPUT 5, 6, 7
or
8):
The HDMI (High Definition Multimedia Interface) terminal
is
an
audio-video interface that enables a connection for audio and
video signals using a single cable. The HDMI terminal supports high-resolution video input.
• Blu-ray disc player •
DVD
player
• HD cable/satellite set-top box
[m~
Ie!)
VIDEO
(!)L
AUDIO
(!)R
3
SERVICE
I
ill
I
Side panel
Rear
of
the TV
f'='=
I
HDMI-certified cable
HDMIOUT
I
• To enjoy 1
D8Dp
display capability, connect your external equipment using
an
HDMI-certified cable or a component cable and
set the equipment to 1
D8Dp
output.
• When using HOMI-OVI conversion cable (INPUT
6):
• Blu-ray disc player •
DVD
player
• HD cable/satellite set-top box
Rear
of the TV
• When using
an
HDMI-DVI conversion cable, you should make
an
analog audio connection.
In
this case,
in
addition to
connecting
an
HDMI-DVI conversion cable to the INPUT 6 (HDMI) terminal, connect
an
audio cable
to
the AUDIO terminal
and set "PC Audio Select" to "Input 6 (HDMI)".
(See
page
4D.)
@)-
11
To Next Page
