TD cartridge replacement
TD CARTRIDGE REPLACEMENT
5

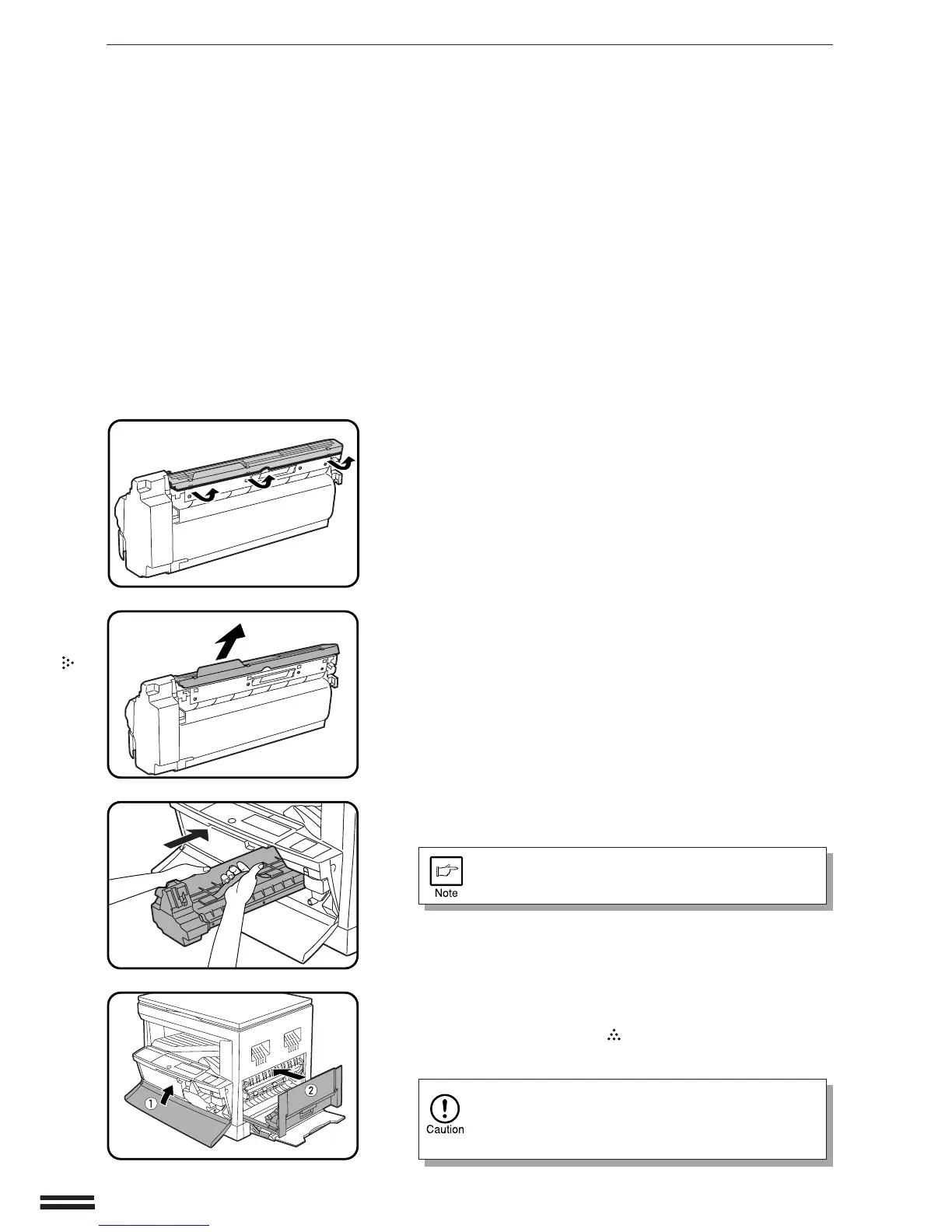

Remove the protective cover from the TD cartridge by
unlatching three cover hooks from the holes on the
cartridge and then pulling the cover in the direction
indicated by the arrow in the illustration.
6
Gently insert the TD cartridge along the guides until it
locks in place.
If dirt or dust is adhered to the TD cartridge, remove it
before installing the cartridge.
7
Close the front cover by pushing both sides with your
hands and then close the side cover by pressing the
handle on the cover. The indicator will go out and the
START key indicator will light up.
When closing the covers, be sure to close the front
cover securely and then close the side cover. If the
covers are closed in the wrong order, the covers may
be damaged.
