AR-M205 DISASSEMBLY AND ASSEMBLY 11-11

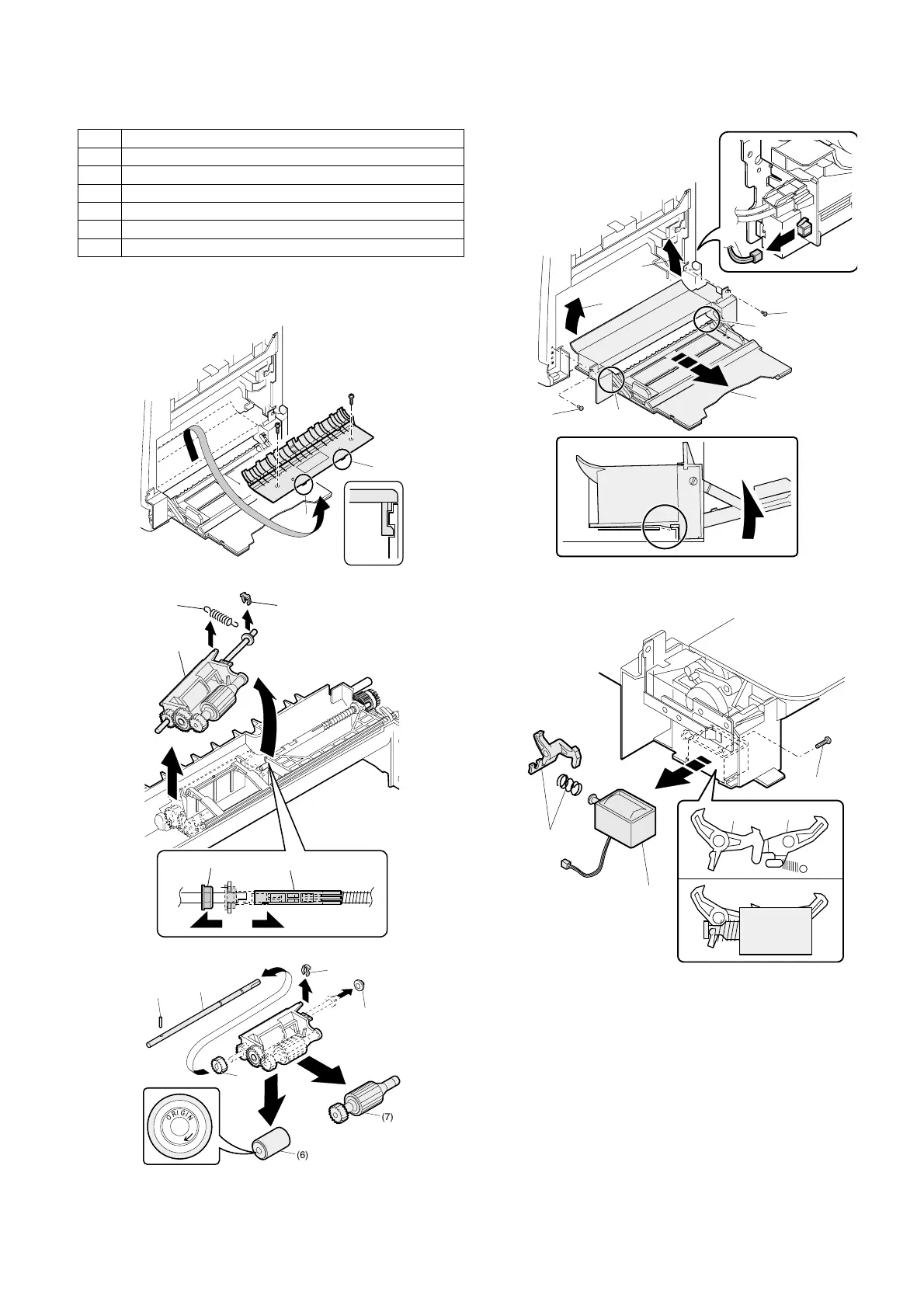

9.Manual multi paper feed section
A.Manual transport roller/Manual paper feed roller
Note:Push the lever at the right edge of the multi frame cover to the right
upper side and remove it.
Installation: Be careful of the installing direction of the manual transport
roller (6)
B. Manual multi paper feed
C. Manual feed solenoid
No. Content
A Manual transport roller/Manual paper feed roller
B Manual multi paper feed
C Manual feed solenoid
D Manual transport clutch
E Pressure plate unit
F Manual paper feed clutch
A
A
A
(3)
(4)
(5)
(2)
(1)
(2)
(3)
(4)
(5)
(1)
O
R
I
G
I
N
(6)
(7)
(2)
(1)
(2)
(3)
(3)
(4)
(4)
A
A
A
(5)
(A)
(1)
(2)
(2)
(B)
