Sharp AR-6026NV - Tray Paper Feed Section;Paper Transport Section

AR-6020V DISASSEMBLY AND ASSEMBLY 10 – 13

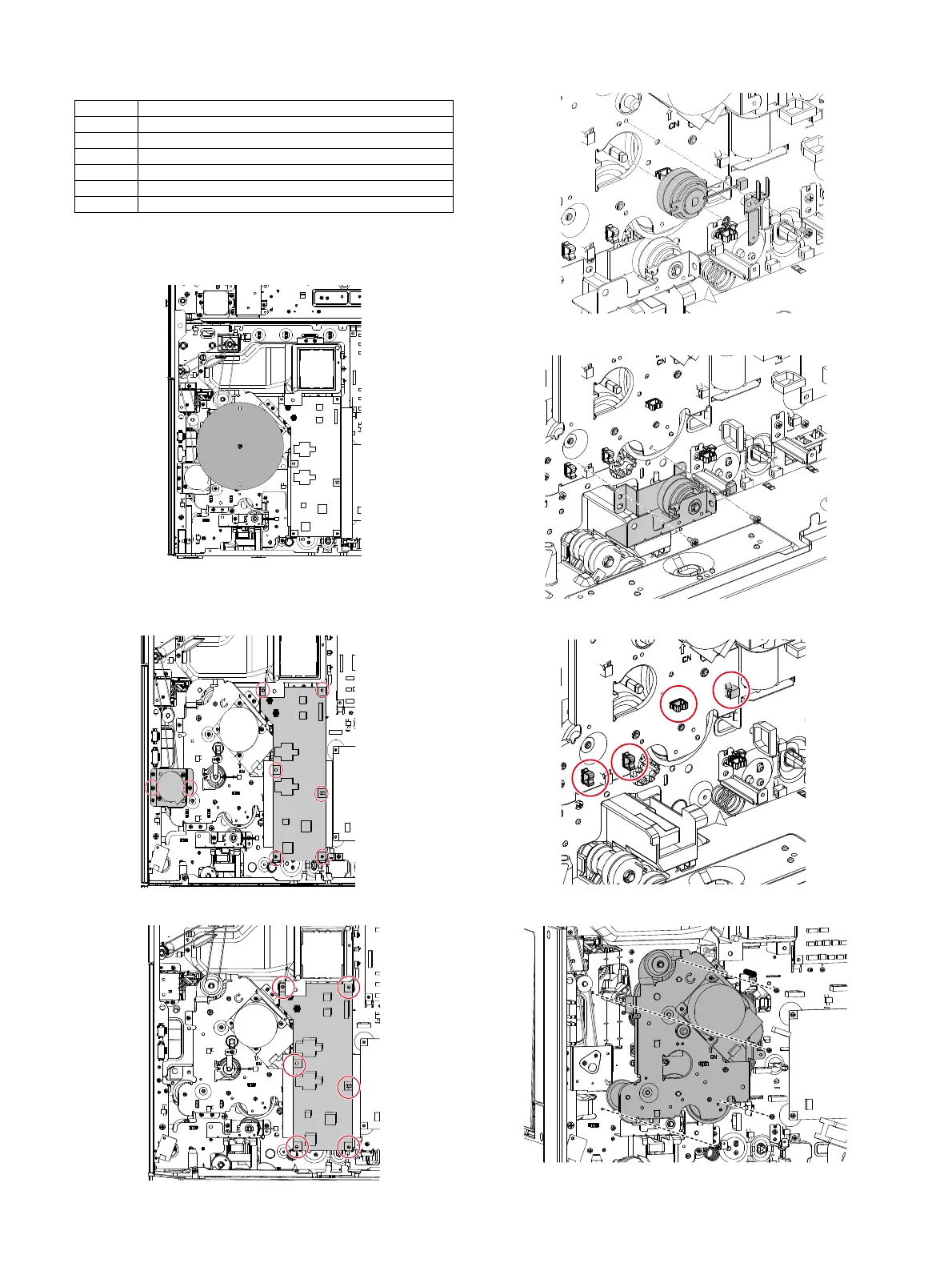

H. Tray paper feed section/Paper transport
section
(1) Main drive unit
1) Remove the flywheel.
2) Remove the power unit and the duplex motor.
<D/N model>
<S model>
3) Remove the drum earth plate and the E-ring. Then, remove
the PS clutch.
4) Remove the paper feed clutch unit.
5) Remove the cable saddles.
6) Remove the main drive unit.
No. Contents
1 Main drive unit
2 Paper feed clutch
3 Paper feed roller
4 Separation roller
5 PIN sensor
6 PS roller
