AR-M205 MAINTENANCE 10-1
[10] MAINTENANCE

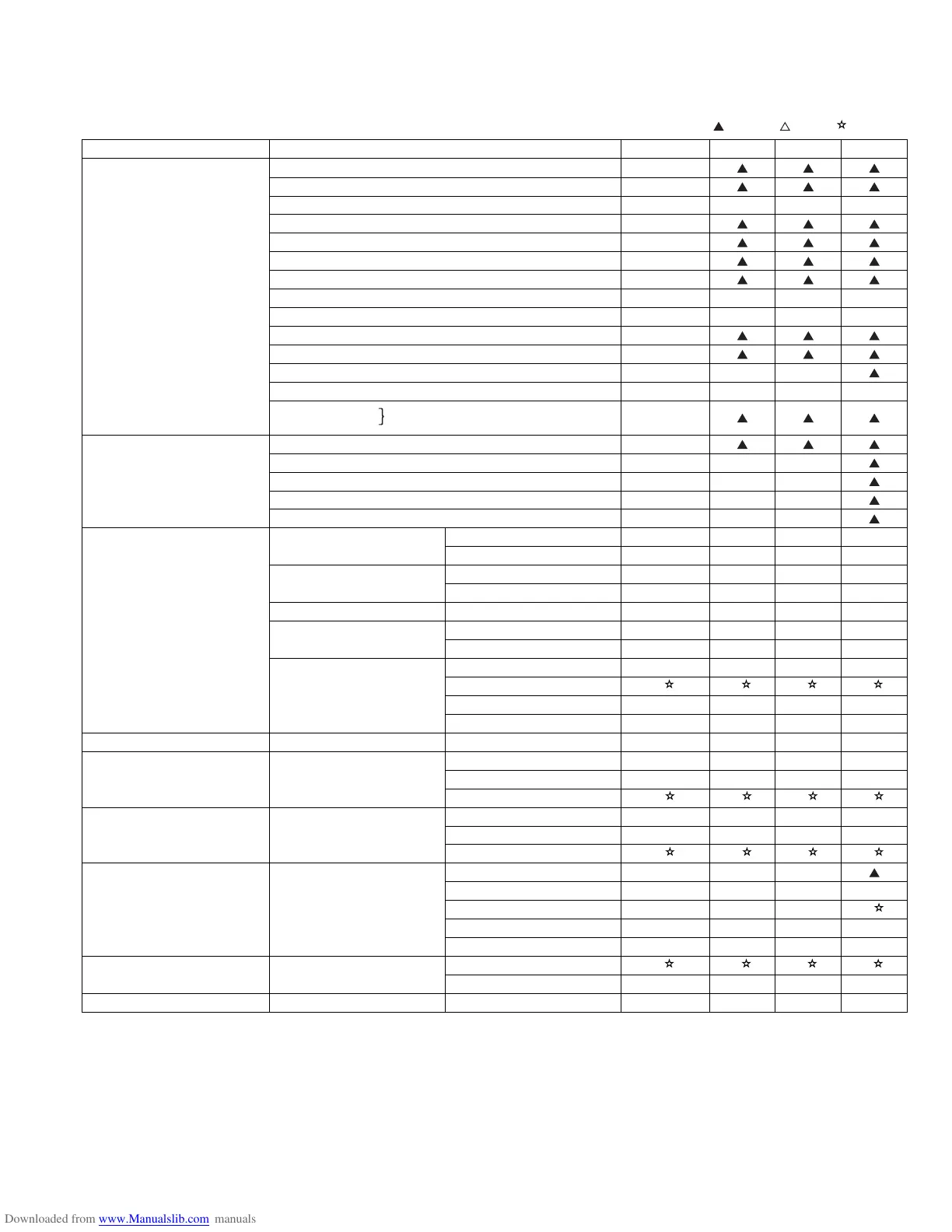

1. Maintenance table
X:Check(Clean, adjust, or replace when required.) O:Clean :Replace :Adjust :Lubricate
*1:Recommendable replacement time:50K(Letter,5%print)
Unit name Part name When calling 50K 100K 150K
Drum peripheral OPC drum -
Cleaning blade -
Side seal F/R X X X X
MC unit X
(MC charging electrode) - ( ) ( ) ( )
(MC grid) - () () ()
(MC case) - () () ()
Transfer wire O O O O
Transfer paper guide O O O O
MC guide sheet (Cleaning blade attached) -
Drum fixing plate B X
Process frame unit X X X
Discharge holder O O O O
Separation pawl
Star ring x 2 pcs
X
Developing section Developer -
DV seal - X X
DV under seal - - -
DV side seal - X X
Side Mylar - - -
Optical section Lamp unit Reflector O O O O
Mirror O O O O
No.2/3 mirror unit Mirror O O O O
Pulley X X X X
CCD peripheral Lens O O O O
Glass Table glass O O O O
White Plate O O O O
Other Drive wire X X X X
Rail X XXX
Document cover O O O O
Document size sensor O O O O
LSU Dust-proof glass O O O O
Paper feed section Multi paper feed section Take-up roller(manual / SPF) O O O O
Paper feed roller O O O O
Spring clutch O O O O
Paper transport section PS roller O O O O
Transport (paper exit) rollers O O O O
Spring clutch O O O O
Fusing section Upper heat roller O O O
Pressure roller O O O O
Pressure roller bearing X X X O
Upper separation pawl X X X O
Lower separation pawl X X X O
Drive section Gears X X X X
Belts X X X O
Paper exit section Ozone filter*1 X X X X*1
Only for Viet Nam
        !"#
