AR-M350 SIMULATIONS 10-39
<List of set values 1>
<List of display values 1>
<List of set values 2>
<List of set values 3>
46-11
Purpose Adjustment
Function (Content) Used to adjust the print density for each density
level (display value) in the copy mode
(binary-Photo mode).
A desired reading density can be set for each
density level (display value).
Section
Item Picture quality
Operation/Procedure The exposure mode to be set is selected.
(Photo mode)
1) The current set value is highlighted on the
right side of each item. In this screen, be sure
to select "1: COPY START." (Set value: 1)
2) Set the exposure level with 10 digit key pad.
Press P to store the set value.
(Default: 50, set range: 0 - 99)
3) Press START, and copying is started and the
set value is stored. (Display value 1)
4) Select a paper feed tray. (Set value 2)
5) Select an exposure level. (Set value 3)

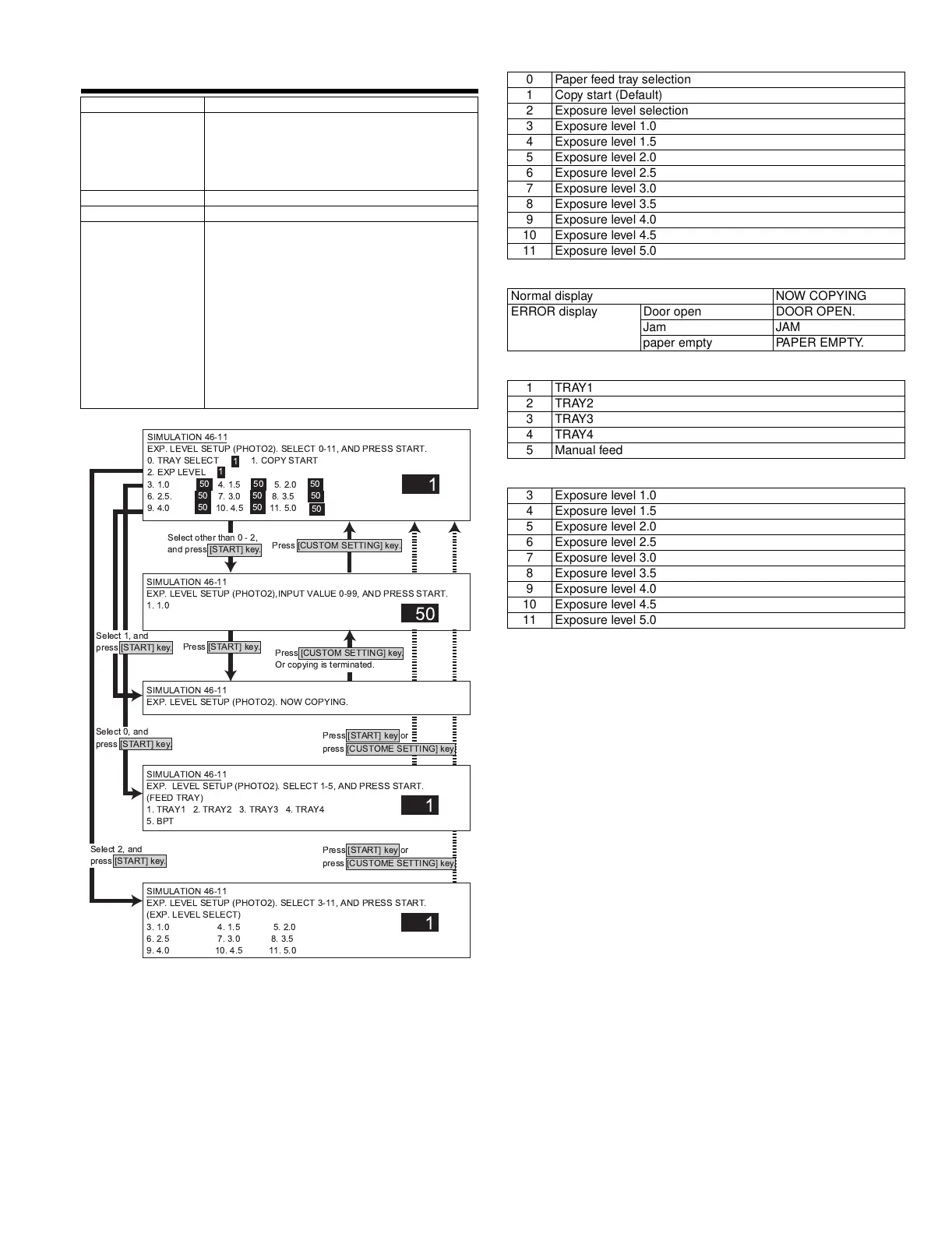

SIMULATION 46-11
EXP. LEVEL SETUP (PHOTO2). SELECT 0-11, AND PRESS START.
0. TRAY SELECT 1. COPY START
2. EXP LEVEL
3. 1.0 4. 1.5 5. 2.0
6. 2.5.  7. 3.0 8. 3.5
9. 4.0 10. 4.5 11. 5.0
1
SIMULATION 46-11
EXP. LEVEL SETUP (PHOTO2),INPUT VALUE 0-99, AND PRESS START.
1. 1.0
50
SIMULATION 46-11
EXP. LEVEL SETUP (PHOTO2). SELECT 1-5, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4
5. BPT
1
SIMULATION 46-11
EXP. LEVEL SETUP (PHOTO2). NOW COPYING.
SIMULATION 46-11
EXP. LEVEL SETUP (PHOTO2). SELECT 3-11, AND PRESS START.
(EXP. LEVEL SELECT)
3. 1.0 4. 1.5 5. 2.0
6. 2.5 7. 3.0 8. 3.5
9. 4.0 10. 4.5 11. 5.0
1
50
50 50
50
50
50
50
1
1
50 50
Press [CUSTOM SETTING] key.
Select other than0-2,
and press [START] key.
Select 1, and
press [START] key.
Select 2, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
0 Paper feed tray selection
1 Copy start (Default)
2 Exposure level selection
3 Exposure level 1.0
4 Exposure level 1.5
5 Exposure level 2.0
6 Exposure level 2.5
7 Exposure level 3.0
8 Exposure level 3.5
9 Exposure level 4.0
10 Exposure level 4.5
11 Exposure level 5.0
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
paper empty PAPER EMPTY.
1TRAY1
2TRAY2
3TRAY3
4TRAY4
5 Manual feed
3 Exposure level 1.0
4 Exposure level 1.5
5 Exposure level 2.0
6 Exposure level 2.5
7 Exposure level 3.0
8 Exposure level 3.5
9 Exposure level 4.0
10 Exposure level 4.5
11 Exposure level 5.0
 +   !" #$%&
