AR-M350 SIMULATIONS 10-43
<List of set values 1>
<List of display values 1>
<List of set values 2>
<List of set values 3>
<Set values>
46-16
Purpose Adjustment
Function (Content) Used to adjust the reading density in the FAX
mode (super fine mode). (Only when FAX is
installed.)
Section
Item Picture quality
Operation/Procedure The exposure mode to be set is selected.
(FAX super fine mode individual adjustment)
1) The current set value is highlighted on the
right side of each item. In this screen, be sure
to select "1: COPY START." (Set value: 1)
2) Set the exposure level with 10 digit key pad.
Press P to store the set value.
(Default: 50, set range: 0 - 99)
3) Press START, and copying is started and the
set value is stored. (Display value 1)
4) Select a paper feed tray. (Set value 2)
5) Select an exposure level. (Set value 3)

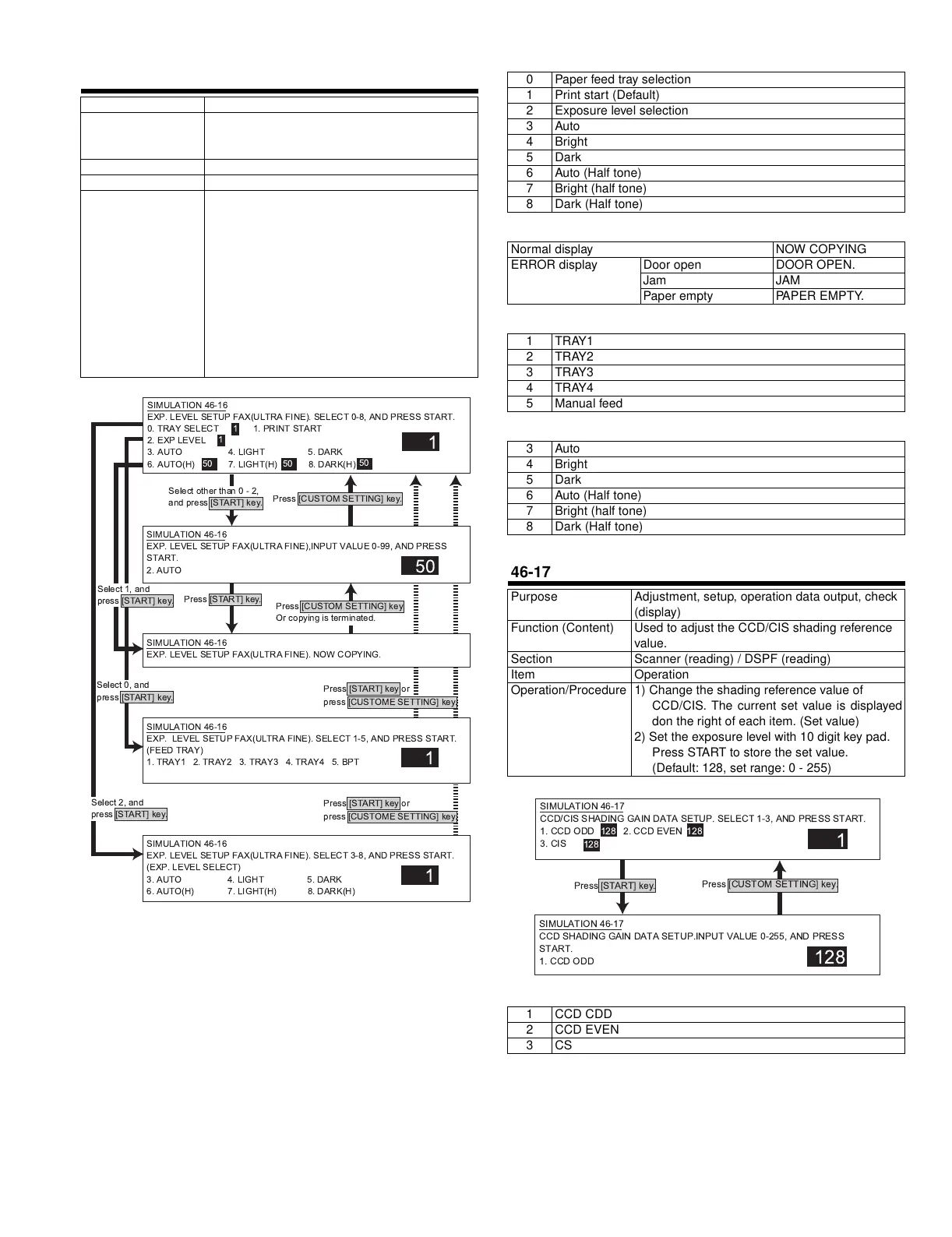

SIMULATION 46-16
EXP. LEVEL SETUP FAX(ULTRA FINE). SELECT 0-8, AND PRESS START.
0. TRAY SELECT 1. PRINT START
2. EXP LEVEL
3. AUTO 4. LIGHT 5. DARK
6. AUTO(H) 7. LIGHT(H) 8. DARK(H)
1
SIMULATION 46-16
EXP. LEVEL SETUP FAX(ULTRA FINE),INPUT VALUE 0-99, AND PRESS
START.
2. AUTO
50
SIMULATION 46-16
EXP. LEVEL SETUP FAX(ULTRA FINE). SELECT 1-5, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4 5. BPT
1
SIMULATION 46-16
EXP. LEVEL SETUP FAX(ULTRA FINE). NOW COPYING.
SIMULATION 46-16
EXP. LEVEL SETUP FAX(ULTRA FINE). SELECT 3-8, AND PRESS START.
(EXP. LEVEL SELECT)
3. AUTO 4. LIGHT 5. DARK
6. AUTO(H) 7. LIGHT(H) 8. DARK(H)
1
50
1
1
50 50
Press [CUSTOM SETTING] key.
Select other than0-2,
and press [START] key.
Select 1, and
press [START] key.
Select 2, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
0 Paper feed tray selection
1 Print start (Default)
2 Exposure level selection
3Auto
4 Bright
5 Dark
6 Auto (Half tone)
7 Bright (half tone)
8 Dark (Half tone)
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
Paper empty PAPER EMPTY.
1TRAY1
2TRAY2
3TRAY3
4TRAY4
5 Manual feed
3Auto
4 Bright
5 Dark
6 Auto (Half tone)
7 Bright (half tone)
8 Dark (Half tone)
46-17
Purpose Adjustment, setup, operation data output, check
(display)
Function (Content) Used to adjust the CCD/CIS shading reference
value.
Section Scanner (reading) / DSPF (reading)
Item Operation
Operation/Procedure 1) Change the shading reference value of
CCD/CIS. The current set value is displayed
don the right of each item. (Set value)
2) Set the exposure level with 10 digit key pad.
Press START to store the set value.
(Default: 128, set range: 0 - 255)
1 CCD CDD
2 CCD EVEN
3CS
SIMULATION 46-17
CCD/CIS SHADING GAIN DATA SETUP. SELECT 1-3, AND PRESS START.
1. CCD ODD 2. CCD EVEN
3. CIS
1
SIMULATION 46-17
CCD SHADING GAIN DATA SETUP.INPUT VALUE 0-255, AND PRESS
START.
1. CCD ODD
128
128128
128
Press [CUSTOM SETTING] key.
Press [START] key.
    !" #$%&
