AR-M350 SIMULATIONS 10-54
<List of set values 1>
<List of display values 1>
<List of set values 2>
* The selected tray is registered as an initial set value in the initial
screen.
Main code 51
51-2
Purpose Adjustment
Function (Content) Used to adjust the contact pressure of paper on
the resist roller in each section (machine paper
feed, duplex paper feed, SPF paper feed).
(This adjustment is required when the print
image position varies or when paper jam occurs
frequently.)
Section Paper transport
(paper exit, switchback, transport)
Item Operation
Operation/Procedure Perform the resist quantity adjustment.
1) The current set value is highlighted on the
right of each item. In this screen, be sure to
select "1: COPY START." (Set value: 1)
2) Enter the correction value with 10 digit key
pad.
Press P to store the set value.
3) When the value is increased by 1, the resist
quantity is changed by 1ms.
4) Press START to start copying and store the
set value. (Display value: 1)
5) Select a paper feed tray. (Set value 2)

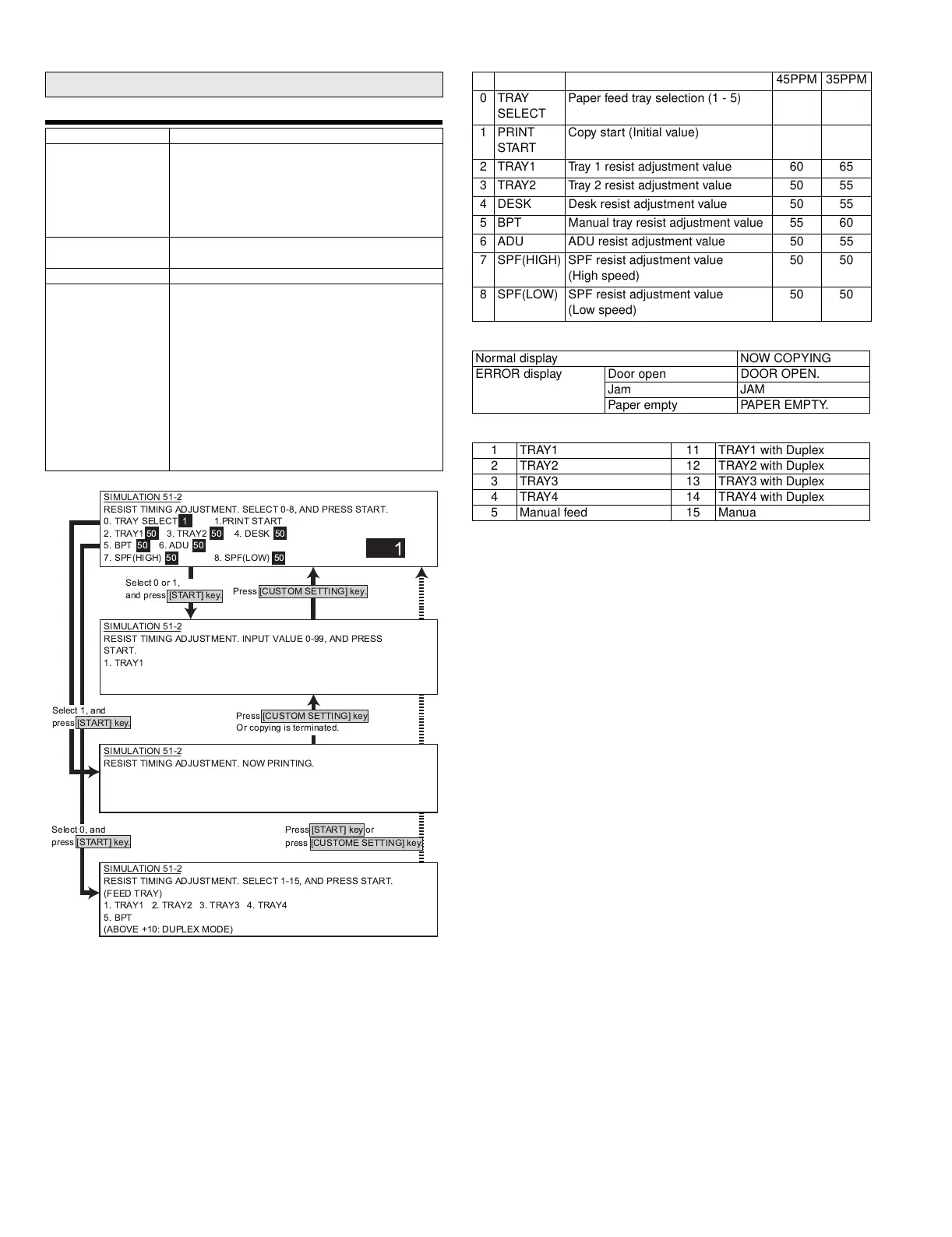

SIMULATION 51-2
RESIST TIMING ADJUSTMENT. SELECT 0-8, AND PRESS START.
0. TRAY SELECT 1 1.PRINT START
2. TRAY1 50 3. TRAY2 50 4. DESK 50
5. BPT 50 6. ADU 50
7. SPF(HIGH) 50 8. SPF(LOW) 50
1
SIMULATION 51-2
RESIST TIMING ADJUSTMENT. INPUT VALUE 0-99, AND PRESS
START.
1. TRAY1
SIMULATION 51-2
RESIST TIMING ADJUSTMENT. NOW PRINTING.
SIMULATION 51-2
RESIST TIMING ADJUSTMENT. SELECT 1-15, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4
5. BPT
(ABOVE +10: DUPLEX MODE)
Press [CUSTOM SETTING] key.
Select 0 or 1,
and press [START] key.
Select 1, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
45PPM 35PPM
0TRAY
SELECT
Paper feed tray selection (1 - 5)
1 PRINT
START
Copy start (Initial value)
2 TRAY1 Tray 1 resist adjustment value 60 65
3 TRAY2 Tray 2 resist adjustment value 50 55
4 DESK Desk resist adjustment value 50 55
5 BPT Manual tray resist adjustment value 55 60
6 ADU ADU resist adjustment value 50 55
7 SPF(HIGH) SPF resist adjustment value
(High speed)
50 50
8 SPF(LOW) SPF resist adjustment value
(Low speed)
50 50
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
Paper empty PAPER EMPTY.
1 TRAY1 11 TRAY1 with Duplex
2 TRAY2 12 TRAY2 with Duplex
3 TRAY3 13 TRAY3 with Duplex
4 TRAY4 14 TRAY4 with Duplex
5 Manual feed 15 Manual feed with Duplex
 *   !" #$%&'
