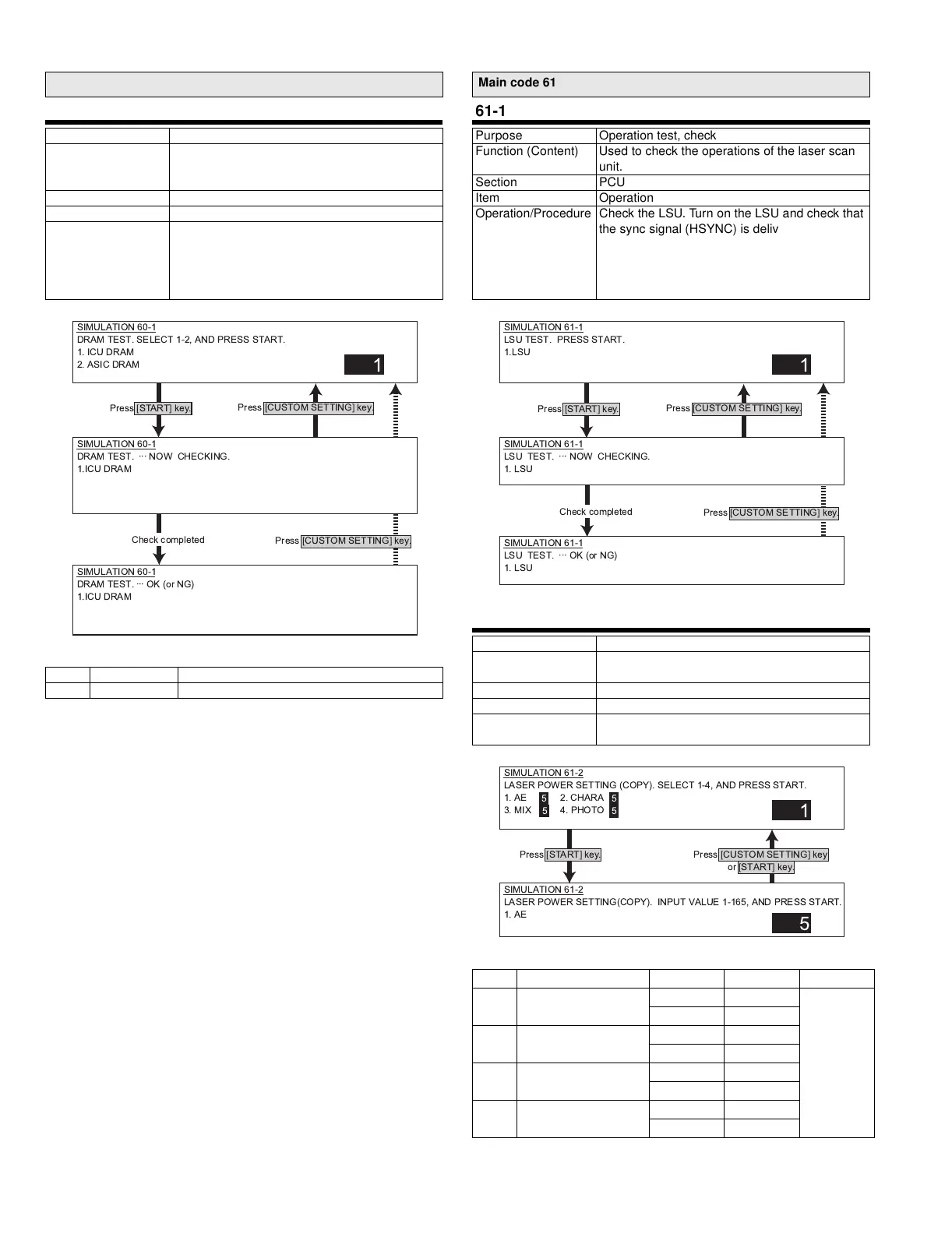

AR-M350 SIMULATIONS 10-56
<List of set values>
<List of set values>
Main code 60
60-1
Purpose Operation test, check
Function (Content) Used to check the ICU (DRAM) operation
(read/write).
(SIMM MEMORY/ON BOARD MEMORY)
Section Image process (ICU)
Item Operation
Operation/Procedure Perform read/write check of the ICU image
DRUM. After starting, NOW CHECKING is
displayed during checking. When the read/write
check is normally completed, OK is displayed.
If an error occurs, NG is displayed.
1 ICU DRAM Image memory for ERDH
2 ASIC DRAM Image memory for ASIC
SIMULATION 60-1
DRAM TEST. SELECT 1-2, AND PRESS START.
1. ICU DRAM
2. ASIC DRAM
1
SIMULATION 60-1
DRAM TEST.
...
NOW CHECKING.
1.ICU DRAM
SIMULATION 60-1
DRAM TEST.
...
OK (or NG)
1.ICU DRAM
Press [CUSTOM SETTING] key.
Press [CUSTOM SETTING] key.
Press [START] key.
Check completed
Main code 61
61-1
Purpose Operation test, check
Function (Content) Used to check the operations of the laser scan
unit.
Section PCU
Item Operation
Operation/Procedure Check the LSU. Turn on the LSU and check that
the sync signal (HSYNC) is delivered or not.
After starting, NOW CHECKING is displayed
during checking. When the test is normally
completed, OK is displayed. When an error
occurs, NG is displayed.
61-2
Purpose Adjustment
Function (Content) Used to adjust the laser power (absolute value)
in the copy mode.
Section PCU
Item Operation
Operation/Procedure Enter the laser power set value in copying,
and press START to store it.
Initial value Set range
1 Auto exposure mode 45PPM 104 104 - 150
(45PPM)
80 - 150
(35PPM)
35PPM 80
2 Text mode 45PPM 104
35PPM 80
3 Text/Photo mode 45PPM 104
35PPM 80
4 Photo mode 45PPM 104
35PPM 80
SIMULATION 61-1
LSU TEST. PRESS START.
1.LSU
1
SIMULATION 61-1
LSU TEST.
...
NOW CHECKING.
1. LSU
SIMULATION 61-1
LSU TEST.
...
OK (or NG)
1. LSU
Press [CUSTOM SETTING] key.
Press [CUSTOM SETTING] key.
Press [START] key.
Check completed
SIMULATION 61-2
LASER POWER SETTING (COPY). SELECT 1-4, AND PRESS START.
1. AE 2. CHARA
3. MIX 4. PHOTO
1
5
SIMULATION 61-2
LASER POWER SETTING(COPY). INPUT VALUE 1-165, AND PRESS START.
1. AE
5 5
55
Press [START] key.
Press [CUSTOM SETTING] key
or [START] key.
 *,   !" #$%&'
