AR-M350 SIMULATIONS 10-60
* SIM 1 cannot be changed with this simulation.

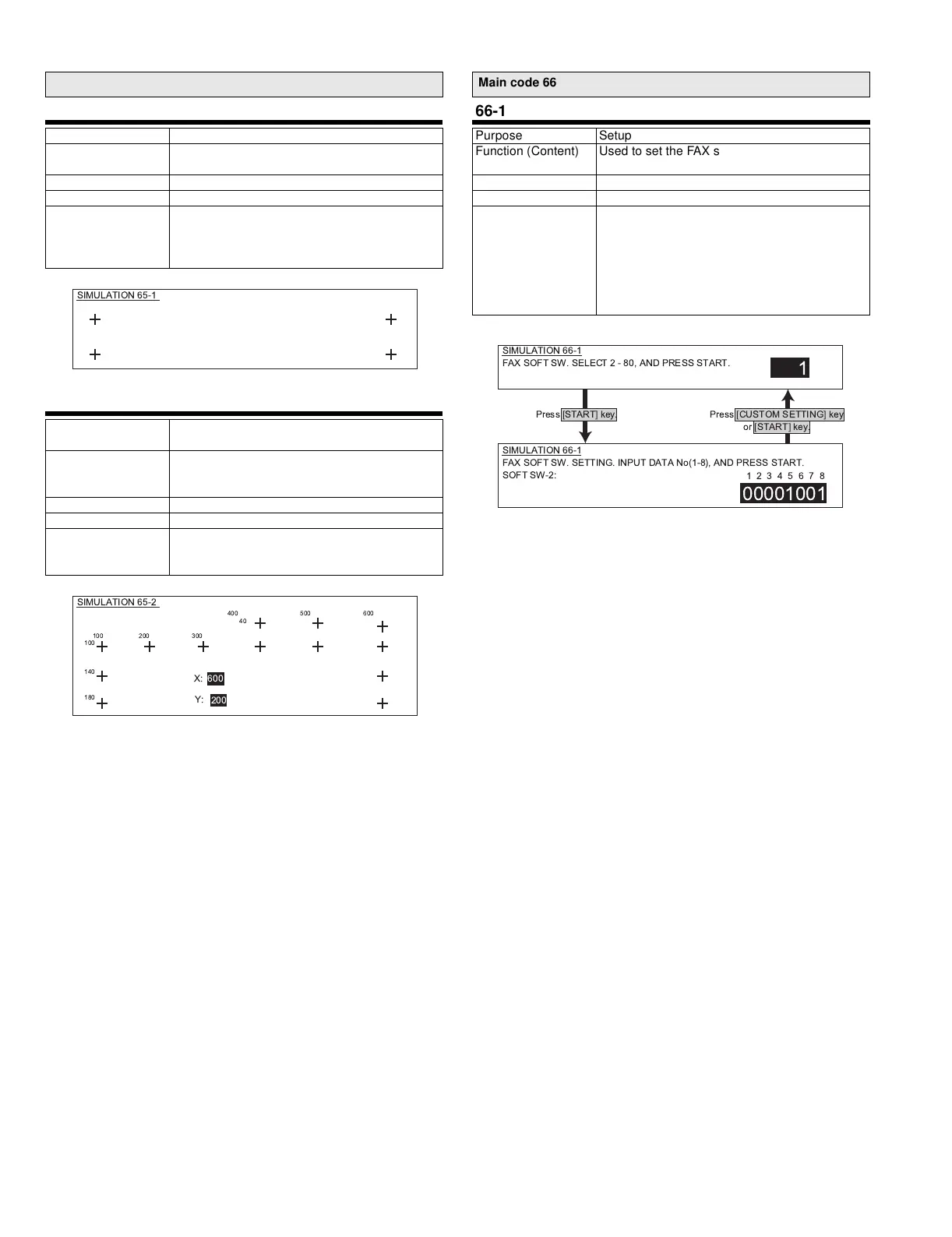

Main code 65
65-1
Purpose Adjustment
Function (Content) Used to adjust the touch panel
(LCD display section) detecting position.
Section Operation (display, operation)
Item
Operation/Procedure Adjust the coordinates of the touch panel.
Press the four cross marks on the LCD, and the
pressed mark will turn gray. When all four marks
are pressed, the adjustment is completed.
65-2
Purpose Adjustment, setup, operation data output, check
(display, print)
Function (Content) Used to check the result of the touch panel
(LCD display section) detecting position
adjustment. (The coordinates are displayed.)
Section Operation (display, operation)
Item
Operation/Procedure Check the touch panel. When the touch panel is
pressed, the coordinates (dot conversion values)
in X/Y directions are displayed.
SIMULATION 65-1
SIMULATION 65-2
600
200
X:
Y:
400 500 600
40
100 200 300
100
140
180
Main code 66
66-1
Purpose Setup
Function (Content) Used to set the FAX soft switch function.
(Used to utilize the FAX soft switch function.)
Section Fax
Item
Operation/Procedure Set the Fax soft switch.
(For details of the soft SW, refer to the AR-FX5
Service Manual.)
Entry of 1 - 8 only is effective.
1) Specify the bit to be changed (highlighted)
with a number.
2) Press START to rewrite the setting.
1
SIMULATION 66-1
FAX SOFT SW. SETTING. INPUT DATA No(1-8), AND PRESS START.
SOFT SW-2:
00001001
SIMULATION 66-1
FAX SOFT SW. SELECT 2 - 80, AND PRESS START.
12345678
Press [START] key.
Press [CUSTOM SETTING] key
or [START] key.
 ,   !" #$%&'
