35 DSPF Upper transfer unit[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
LPLTM5891FCZZ AE
N C Upper delivery rainforce plate
2
PMLT-1272FCZZ AB
N C Damper cushion 3
3
LSTPP0353FCZZ AE
N C Original stopper
5
LPLTM5930FCZZ AD
N C Separate pad rainforce plate
6
XEBSD30P08000 AA
CScrew (3×8)
7
CPLTM5746FC01 AE
N C Separate pad fixing plate AS
8
LPLTP5747FCZZ AC
N C Separate plate
9
MSPRT2864FCZZ AC
N C Pressure spring
10
VHPGP1A73A+-1 AG
B Photo sensor (GP1A73A)
11
PMAGT0072FCZZ AF
C Magnet catch
12
RPLU-0347FCZZ AQ
N B Gate solenoid
13
DHAI-3162FCZZ AK
N C SPF paper feed harness
14
MLEVP0796FCZZ AC
N C Set detect actuator
15
MARMP0248FCZZ AE
C MF gate joint arm
16
MLEVP0804FCZZ AC
N C Stopper lever
17
MSPRP2832FCZZ AC
N C Separate assistance plate spring
18
PSHEZ4878FCZZ AC
N C Separate mylar upper
19
PSHEZ4847FCZZ AL
N C Separate sheet
20
PSHEP4848FCZZ AB
N C Separate mylar lower
21
LSTPP0314FCZZ AA
C E3 stopper
22
MSPRD2870FCZ1 AC
N C Stopper spring
23
NSFTZ2659FCZZ AR
N C Fulcrum shaft
24
LPLTM5932FCZZ AC
C Tray 2 sensor fixing plate
25
XEBSE40P10000 AA
CScrew (4×10)
26
MLEVP0797FCZZ AC
N C PS front actuator
27
MSPRD2879FCZZ AB
N C PS front actuator spring
28
PMLT-1271FCZZ AB
N C Damper cushion 2
29
PSHEP4937FCZZ AB
N C Fixing mylar
30
PGIDM1899FCZZ AY
N C Upper delivery PG
31
MSPRT2863FCZZ AB
N C Paper feed plate spring
32
LPLTP5748FCZZ AD
N C Paper feed plate
34
XHBSE30P06000 AA
CScrew (3×6)
35
XBBS230P10000 AA
CScrew (3×10)

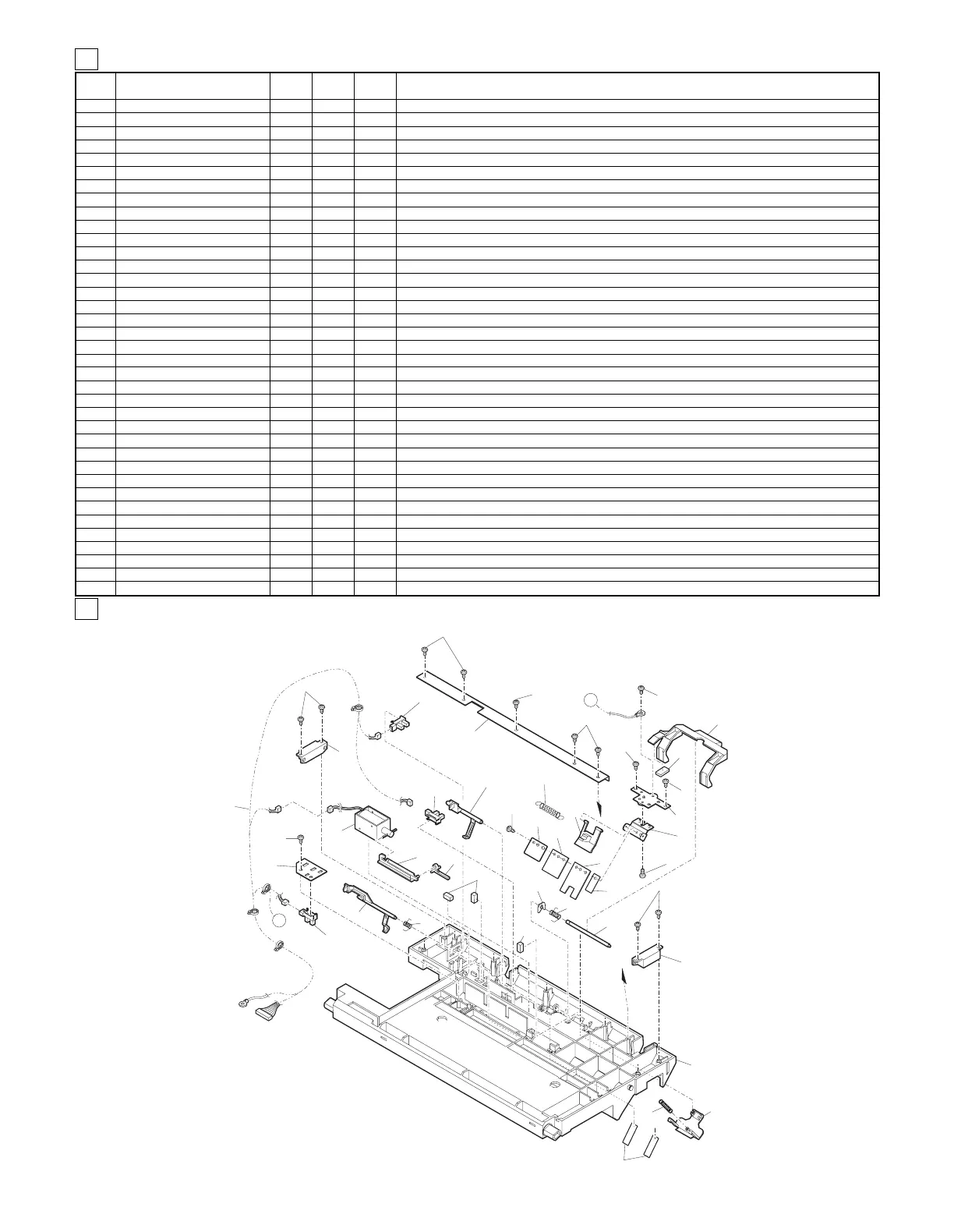

35 DSPF Upper transfor unit[AR-EF1]
A
A
1
3
34
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
6
6
6
10
6
6
11
28
10
31
32
29
35
34
2
6
