40 CIS Control PWB[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
17
VHIFS781BZB-1 AP
B IC (FS781BZB) [IC6]
18
VHIM3064ATC-1 AX
N B IC (M3064ATC) [IC7]
19
VHIVHC244SJ-1 AG
N B IC (VHC244SJ) [IC3]
20
VRS-CZ1JD000J AA
C Resistor (1/16W 0Ω ±5%) [R5,15,18,19,20,21,34]
VRS-CZ1JD000J AA
C Resistor (1/16W 0Ω ±5%) [R35,43,44,45,46,48,49]
VRS-CZ1JD000J AA
C Resistor (1/16W 0Ω ±5%) [R50,51,52,53,54,55,59]
21
VRS-CZ1JD101J AA
C Resistor (1/16W 100Ω ±5%) [R1,2,3,4,9,10,14,22]
VRS-CZ1JD101J AA
C Resistor (1/16W 100Ω ±5%) [R23,24,25,37,38,39,40]
VRS-CZ1JD101J AA
C Resistor (1/16W 100Ω ±5%) [R41,47,56,57]
22
VRS-CZ1JD102J AA
C Resistor (1/16W 1.0KΩ ±5%) [R100,17,26,27,28,29,30]
VRS-CZ1JD102J AA
C Resistor (1/16W 1.0KΩ ±5%) [R31,32,33,36,42]
23
VRS-CZ1JD222J AA
C Resistor (1/16W 2.2KΩ ±5%) [R6,7,8,11,12,13]
24
VRS-CZ1JD332F AA
C Resistor (1/16W 3.3KΩ ±1%) [R58]
(Unit)
901
CPWBN1458FCE1 BF
N E CIS control PWB

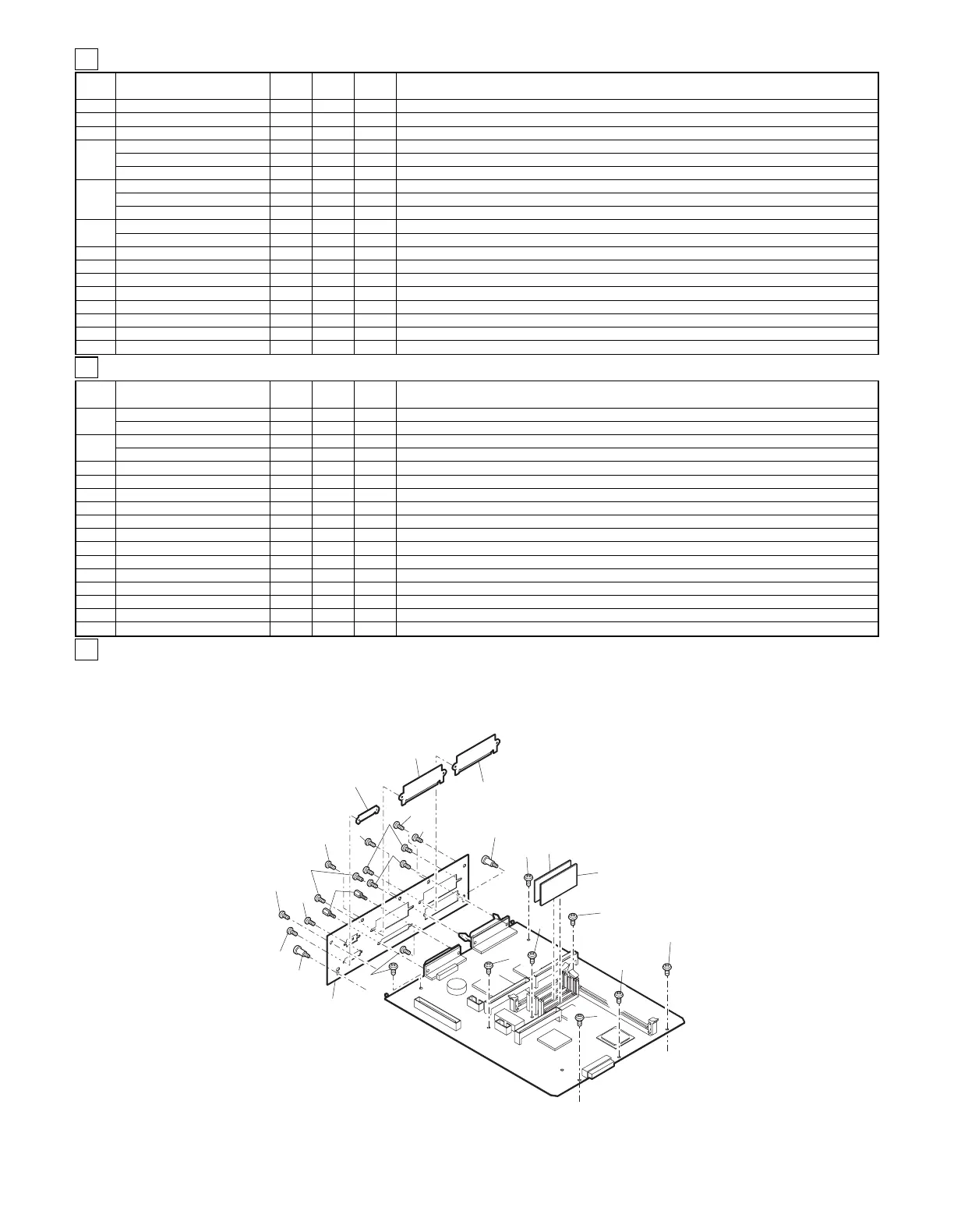

41 MFP Controler PWB[AR-M11]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
VHI28F322L01F BE
N B MFP flash ROM A J (28F322L01F) [Japan]
VHI28F322L03F BF
N B MFP flash ROM A EX (28F322L03F) [except Japan]
2
VHI28F322L02F BF
N B MFP flash ROM B J (28F322L02F) [Japan]
VHI28F322L04F BL
N B MFP flash ROM B EX (28F322L04F) [except Japan]
3
LX-BZ0828FCZZ AD
C Handle fixing screw
4
LX-BZ0921FCZ1 AE
N C Scanner Screw
5
PCOVP1557FCZZ AC
C LAN/option cover
6
PCOVP1560FCZZ AC
N C FAX I/F cover
7
XBBSD30P06000 AA
CScrew (3×6)
8
XBPSD26P06000 AA
C Screw (2.6×6)
9
XBPSD30P06000 AA
CScrew (3×6)
11
XHBSE30P06000 AA
CScrew (3×6)
12
LPLTM5765FCZ1 AH
N C Control joint plate
41 MFP Controler PWB[AR-M11]
8
4
8
9
3
3
2
7
7
7
7
7
7
7
7
7
7
9
11
11
FCP05057
12
5
9
7
1
6
5
