10. Drive section
A. Maintenance and parts replacement
(1) Maintenance list
(2) Maintenance and parts replacement

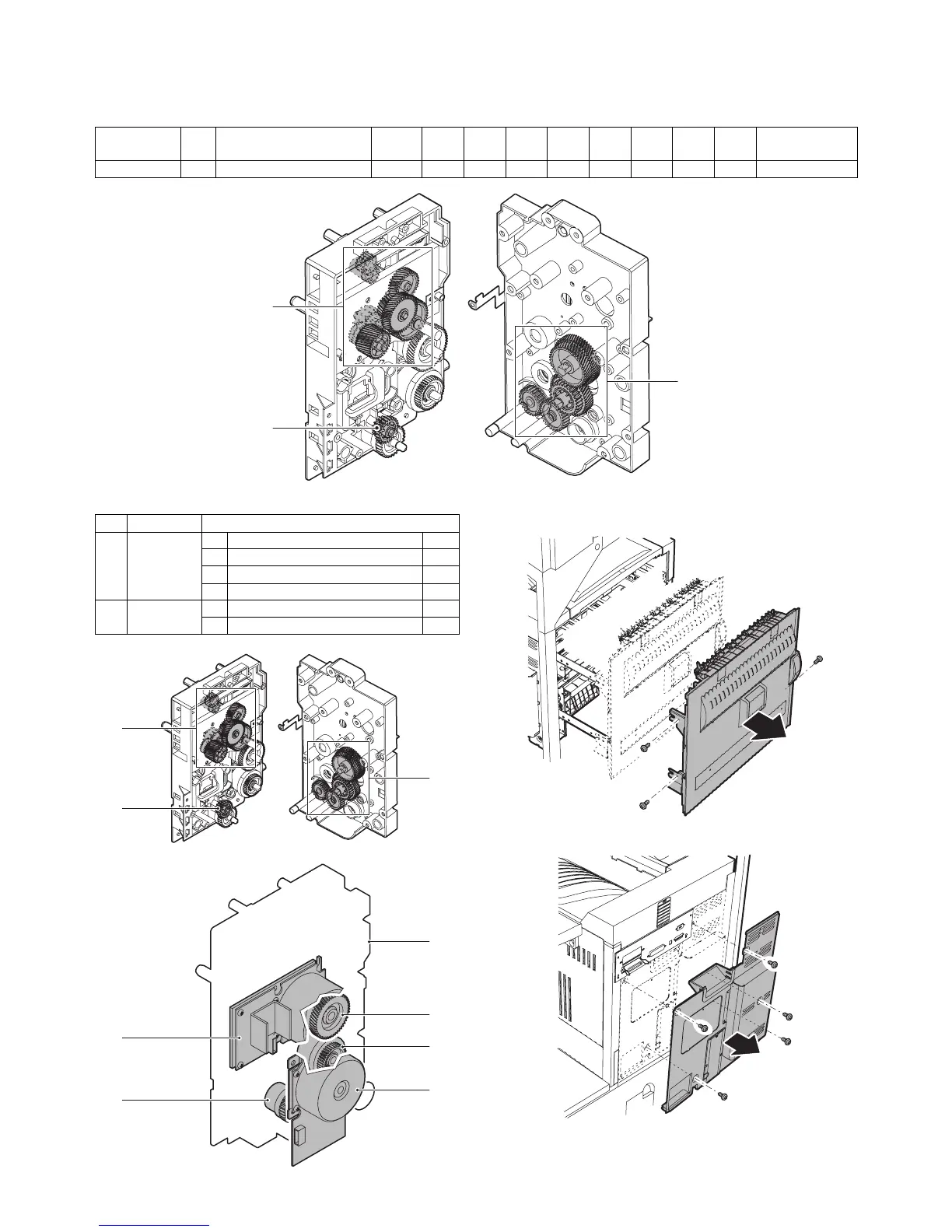

a. Drive unit
1) Remove the screw, and remove the left door.
2) Remove the screw, and remove the rear cabinet.
Unit name No. Part name
When
calling
100K 200K 300K 400K 500K 600K 700K 800K Remark
Drive section 1 Gears (Specified position) ✕ ✩✩✩✩✩✩✩✩
1
1
1
No. Unit Parts
a Drive unit 1 Gears ✕✩
2 Paper cassette paper feed clutch
3 Paper transport clutch
4 Resist roller clutch
b 1 Drum motor
2 Main motor
a-2
b-1
a-4
a
a-3
b-2
a-1
a-1
a-1
