AR-M351U/M451U, AR-M355U/M455U SIMULATION 9 - 56
2) Check the lead edge void area on the self print pattern.
(Enter 1 and press [START] key.)
3) If the adjustment result is not satisfactory, perform the follow-
ing procedures.
∗ If the lead edge void area is not 3.5mm:
Change the adjustment value of RRCB and perform the
adjustment. (Change the adjustment value of RRCB and
press [START] key.)
(Shift for the adjustment value change: 0.1mm/step)
(Front/rear frame direction void area adjustment)
Adjust so that the total of the front/rear direction void areas is
7.0mm. (Change the adjustment values of FRONT/REAR, and
press [START] key.)
Front frame void area = 3.5mm Rear frame void area = 3.5mm
(Paper resist adjustment)
1) Enter the number corresponding to the paper feed tray to be
adjusted with 10-key. (Select one of 3 - 9.) (Table 1)
2) Press [START] key.
3) Enter the adjustment value with 10-key.
4) Press [P] key or [START] key. When [START] key is pressed,
the adjustment value is set and printing is performed. (Table 2)
If the relative positions of paper and print images vary or a paper
jam occurs, change the adjustment value.
(Print condition setting in this simulation)
∗ To select paper (paper feed tray), perform the following proce-
dures.
1) Enter 0 with 10-key.
2) Press [START] key. (The mode is changed to the paper feed
tray selection mode.)
3) Enter the number corresponding to the paper feed tray to be
used with 10-key. (Select one of 1 - 5.) (Table 3)
4) Press [START] key. (The paper feed tray is selected.)
When the total of the above set value (1 - 5) and 10 is entered, the
mode is changed to the duplex print mode.
NOTE: When [P] key is pressed after entering the adjustment
value in this simulation, the adjustment value is set. When
[START] key is pressed instead, the adjustment value is
set and copying is performed.

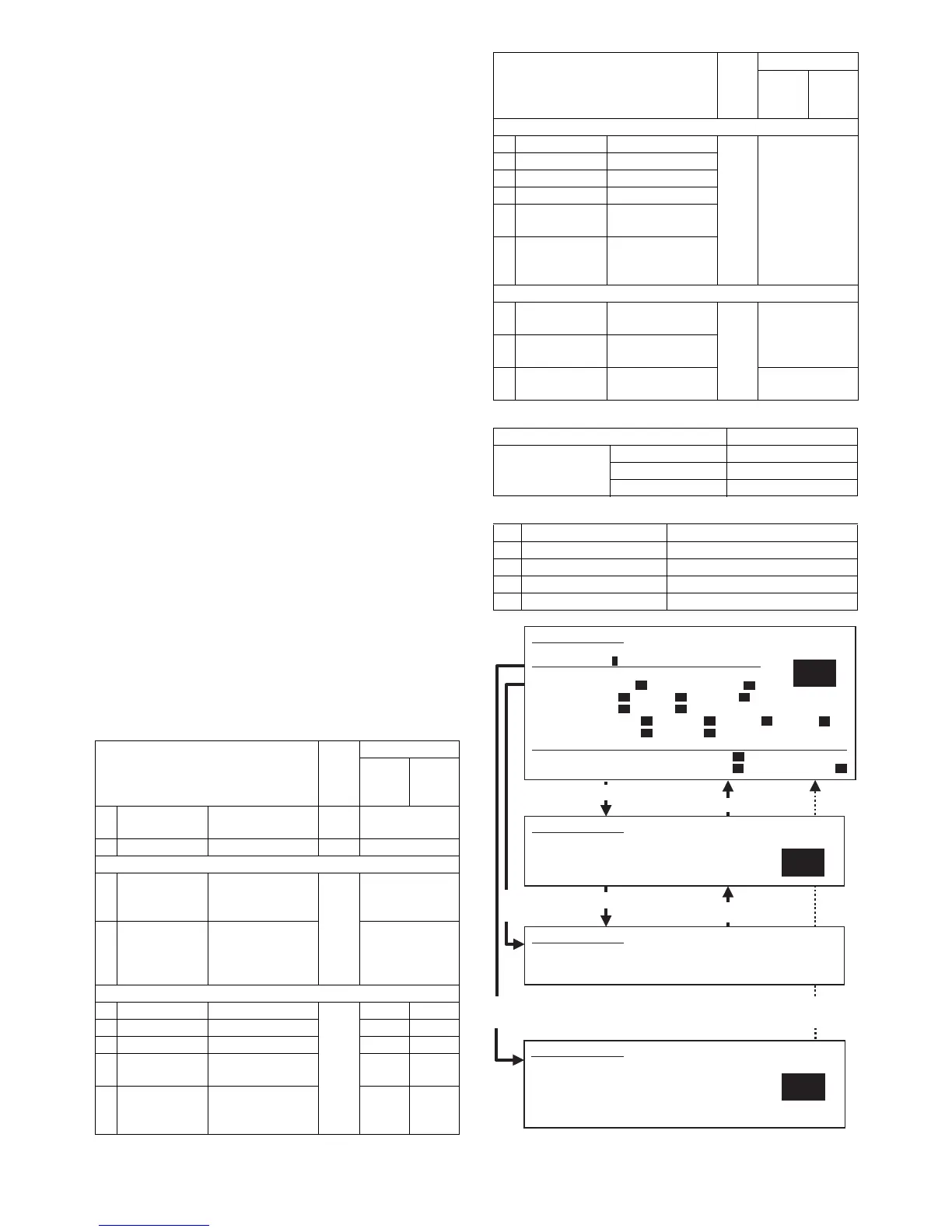

(Table 1)
(Table 2)
(Table 3)
Item
Set
range
Default
AR-
M351U/
M355U
AR-
M451U/
M455U
0 TRAY SELECT Paper feed tray
selection
1 - 5 –
1 PRINT START Print start (Default) ––
(Lead edge adjustment value)
2 RRCB Resist roller clutch
ON timing
adjustment value
0 - 99 50
3 SIDE2 ADJ. Correction value
for RRCB when
refereeing from
ADU
50
(Resist adjustment value)
4 T1 Tray 1 adjustment 0 - 99 65 60
5 T2 Tray 2 adjustment 55 50
6 DESK Tray 4 adjustment 55 50
7 BPT Manual feed tray
adjustment
60 55
8 ADU Adjustment when
paper is fed again
from ADU
55 50
(Off-center set value) Self print
9 T1 Tray 1 adjustment 0 - 99 50
10 T2 Tray 2 adjustment
11 T3 Tray 3 adjustment
12 T4 Tray 4 adjustment
13 BPT Manual feed tray
adjustment
14 ADU Adjustment when
paper is fed again
from ADU
(Void set value)
15 LEAD_EDGE
(DENA)
Lead edge void set
value
0 - 99 35
16 TRAIL_EDGE
(DENB)
Rear edge void
adjustment value
17 FRONT/REAR Front/Rear void
adjustment value
32
Normal display NOW PRINTING.
ERROR display Door open DOOR OPEN.
Jam JAM
Paper empty PAPER EMPTY.
1 TRAY1 TRAY1
2 TRAY2 TRAY2
3 TRAY3 TRAY3
4 TRAY4 TRAY4
5 BPT Manual feed
Select 0, and
press [START] key.
Press [START] key, or
press [CUSTOM SETTINGS] key.
Item
Set
range
Default
AR-
M351U/
M355U
AR-
M451U/
M455U
50
2
Press [CUSTOM SETTINGS] key.
Press [START] key.
Press [CUSTOM SETTINGS] key,
or terminate copying.
SIMULATION 50-5
LEAD EDGE ADJUSTMENT. NOW PRINTING.
SIMULATION 50-5
LEAD EDGE ADJUSTMENT. INPUT VALUE 0-99, AND PRESS
START.
2.RRCB
Select 1,
and press
[START] key.
Select other than 0 - 1, and press [START] key.
SIMULATION 50-5
LEAD EDGE ADJUSTMENT. SELECT 0-20, AND PRESS START.
0.TRAY SELECT 1 1.PRINT START
(ADJUSTMENT DATA)
LEAD EDGE: 2.RRCB 50 3.SIDE2 ADJ. 50
RESIST: 4.T1 50 5.T2 50 6.DESK 50
7.BPT 50 8.ADU 50
OFF CENTER: 9.T1 50 10.T2 50 11.T3 50 12.T4 50
13.BPT 50 14.ADU 50
(VOID SETTING) 15.LEAD_EDGE(DENA) 35
16.TRAIL_EDGE(DENB) 35 17.FRONT/REAR 32
1
SIMULATION 50-5
LEAD EDGE ADJUSTMENT. SELECT 1-15, AND PRESS START.
(FEED TRAY)
1.TRAY1 2.TRAY2 3.TRAY3 4.TRAY4
5.BPT
(ABOVE+10: DUPLEX MODE)
