Service Manual
CHAPTER 5. OPERATION

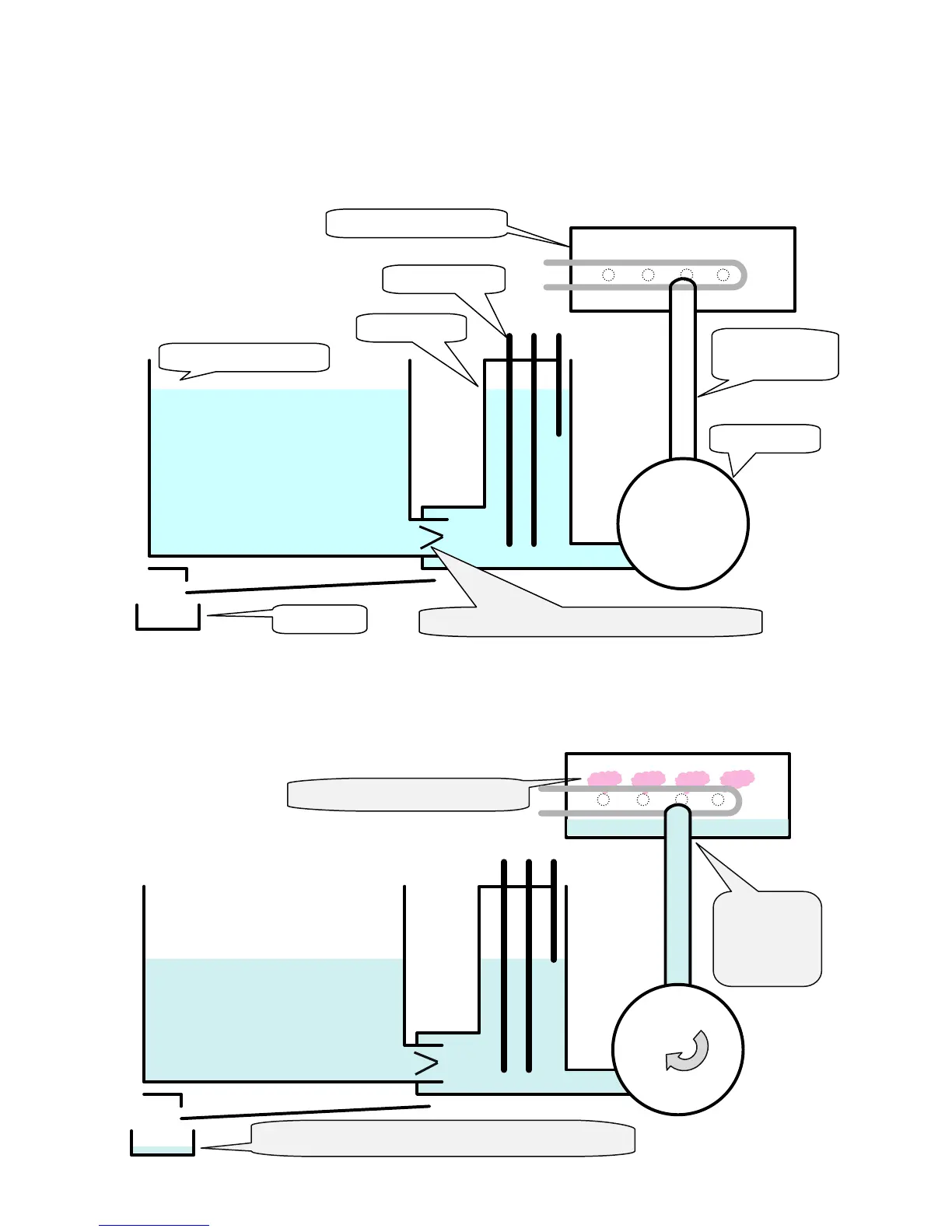

[1] Water supply/drainage schematic
1. When installing the reservoir
2. When Steam, Water Oven and Water Grill operations
FEED-WATER RESERVOIR
Water level sensor
ENGINE UNIT ASSEMBLY
TUBE PUMP
Water level unit
DEW TRAY
Water supply tube
to the engine as-
sembly
Inserting the reservoir delivers water to the water level unit.
Turning the heater ON generates steam.
Dew condensation water in the oven cavity and the exhaust air
duct is discharged to the dew tray
Activation of the
pump delivers
water to the
engine through
the tube.
