Sharp AY-AP9FHR Service Manual

AYAP7FHR
3 – 5
[2] TEST MODE

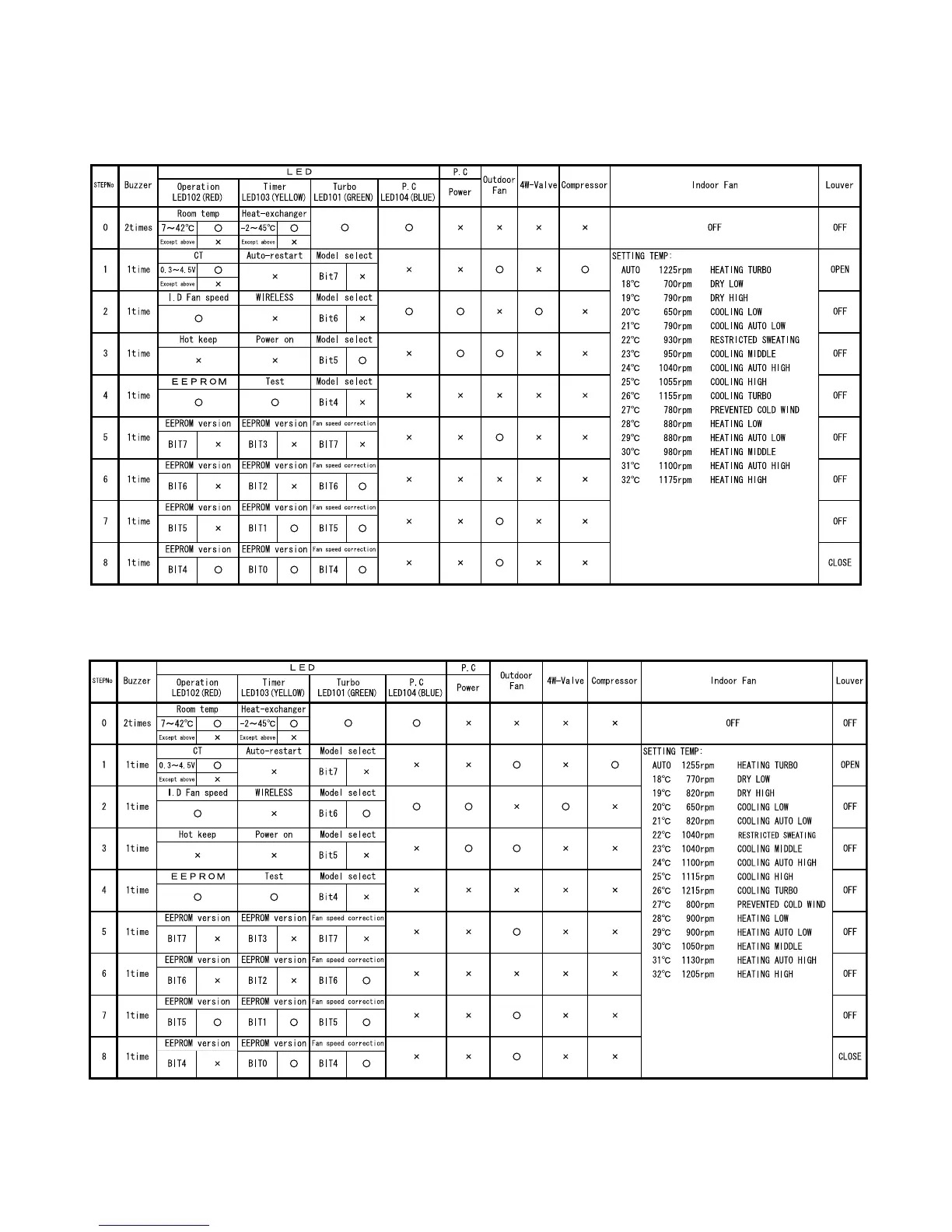

Keep pushing the "AUX." buttons and supply the power, the system will go to the test mode. In this mode, the output of operation is switched by
pushing the "AUX." button in the unit or the "OI" button in the remote controller. Normal outputs are shown in Table.
1. AY-AP7FHR
2. AY-AP9FHR
