Sharp AY-AP9FHR Service Manual

AYAP7FHR
6 – 1
AYAP7FHR
Service Manual
CHAPTER 6. DISASSEMBLING PROCEDURE
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING

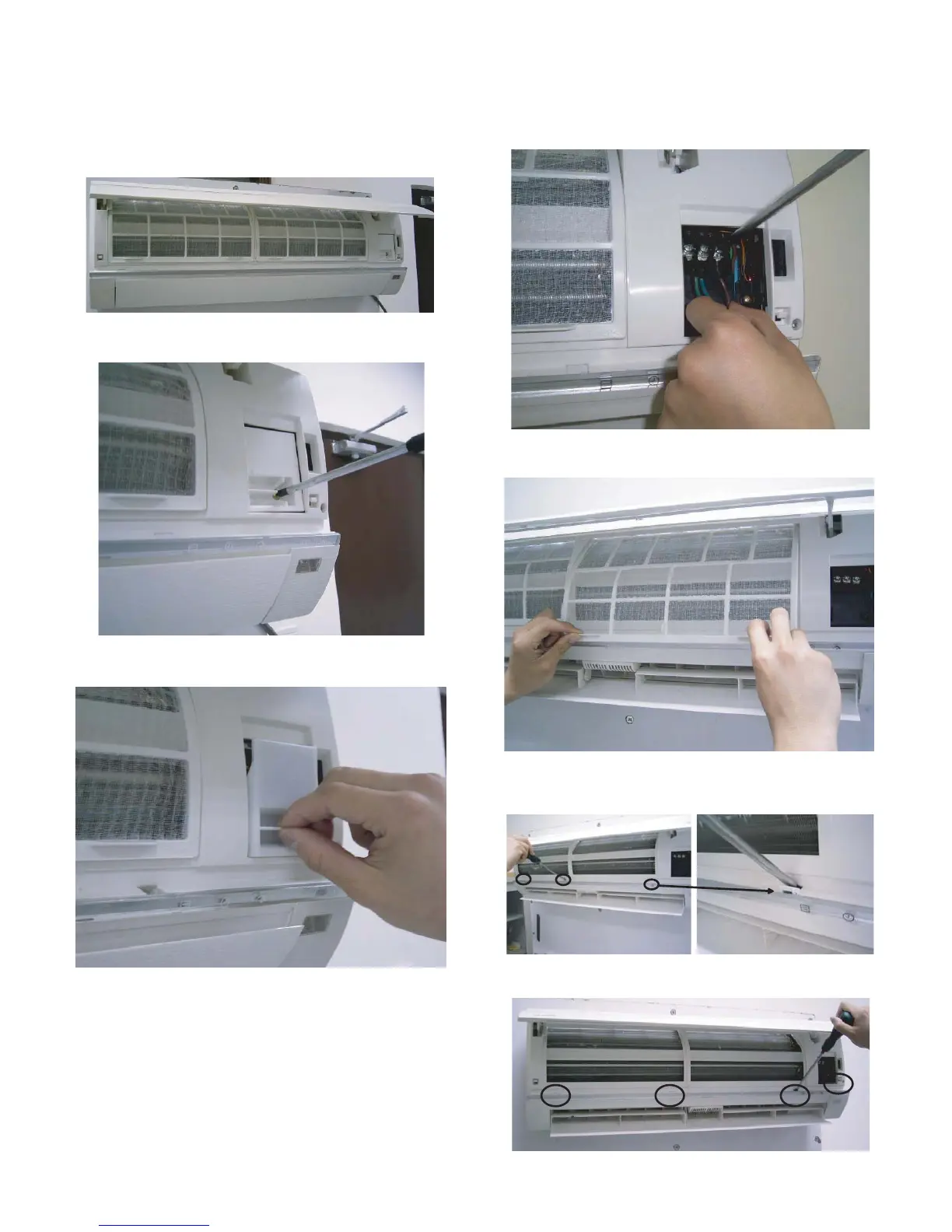

[1] INDOOR UNIT
1) Open the open panel.
2) Remove the screw fixing the cord clamp.
3) Remove the cord clamp.
4) Remove the unit-to-unit wiring from the terminal board
5) Remove 2 air filters.
6) Remove 3 screw covers on front panel,push the bottom with minus
driver and draw them out.
7) Remove 4 screws fixing the front panel.

Sharp AY-AP9FHR Specifications

General

AC input voltage	220-240 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A
Annual energy consumption (cooling)	410 kWh
Hourly energy consumption (cooling)	3.8 kWh
Energy efficiency class (heating) (Warmer heating season)	-
Annual energy consumption (heating) (Warmer heating season)	- kWh
Type	Split system
Multi-split	Yes
Product color	White
Hose length (max)	10 m
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	820 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	855 W
Indoor unit depth	184 mm
Indoor unit width	810 mm
Indoor unit height	270 mm
Indoor unit weight	9000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	55 dB
Outdoor unit depth	250 mm
Outdoor unit width	730 mm
Outdoor unit height	540 mm
Outdoor unit weight	32000 g
Outdoor unit noise level	61 dB
