Sharp AY-AP9FHR Service Manual

AYAP7FHR
6 – 5

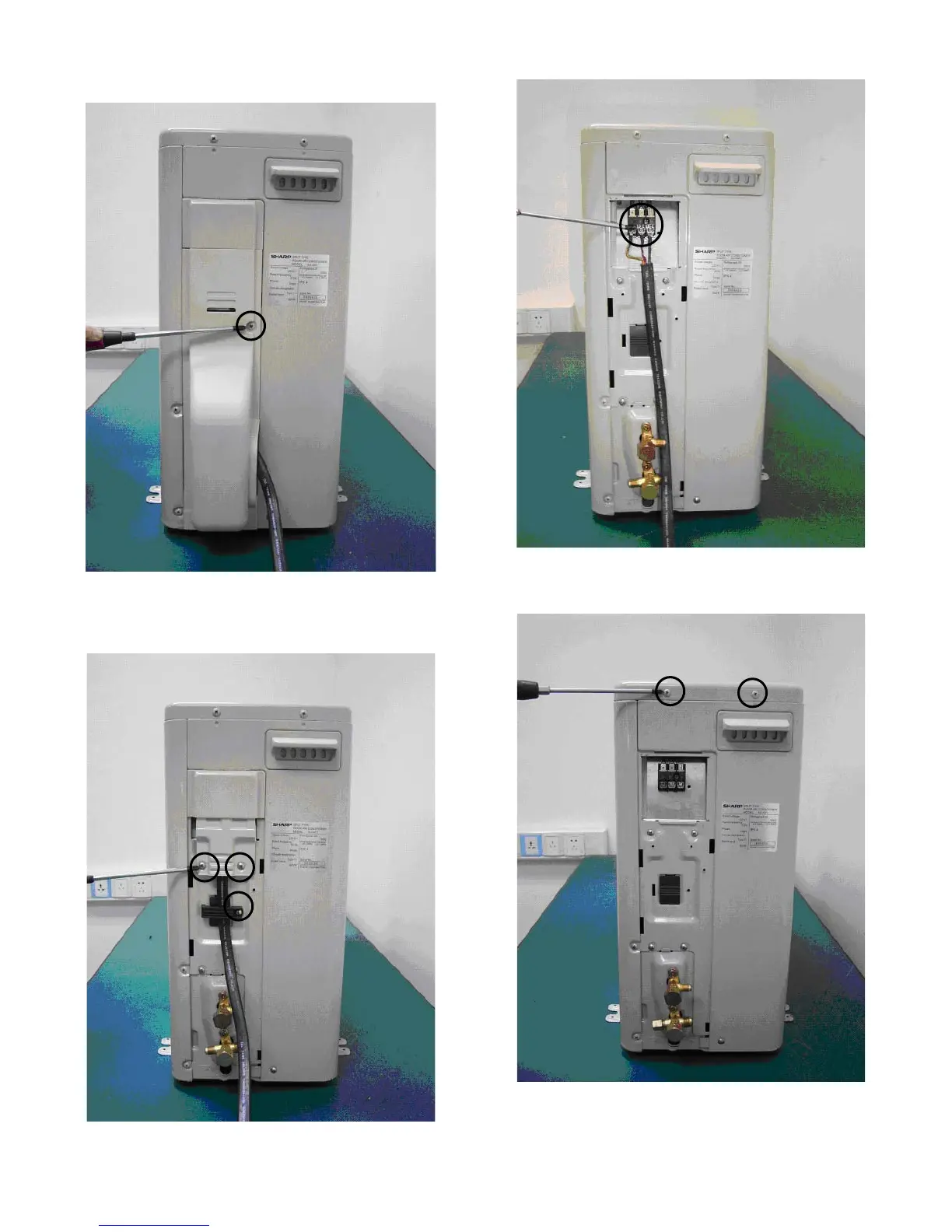

[2] OUTDOOR UNIT
1) Loose a screw fixing the side cover.
2) Loose 2 screws fixing the terminal cover and 1 screw fixing the
cord clamp.
Remove terminal cover and cord clamp.
3) Loose the unit-to-unit cord.
4) Loose 6 screws fixing the top panel.
• Right side view

Sharp AY-AP9FHR Specifications

General

AC input voltage	220-240 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A
Annual energy consumption (cooling)	410 kWh
Hourly energy consumption (cooling)	3.8 kWh
Energy efficiency class (heating) (Warmer heating season)	-
Annual energy consumption (heating) (Warmer heating season)	- kWh
Type	Split system
Multi-split	Yes
Product color	White
Hose length (max)	10 m
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	820 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	855 W
Indoor unit depth	184 mm
Indoor unit width	810 mm
Indoor unit height	270 mm
Indoor unit weight	9000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	55 dB
Outdoor unit depth	250 mm
Outdoor unit width	730 mm
Outdoor unit height	540 mm
Outdoor unit weight	32000 g
Outdoor unit noise level	61 dB
