Sharp AY-AP9FHR User Manual

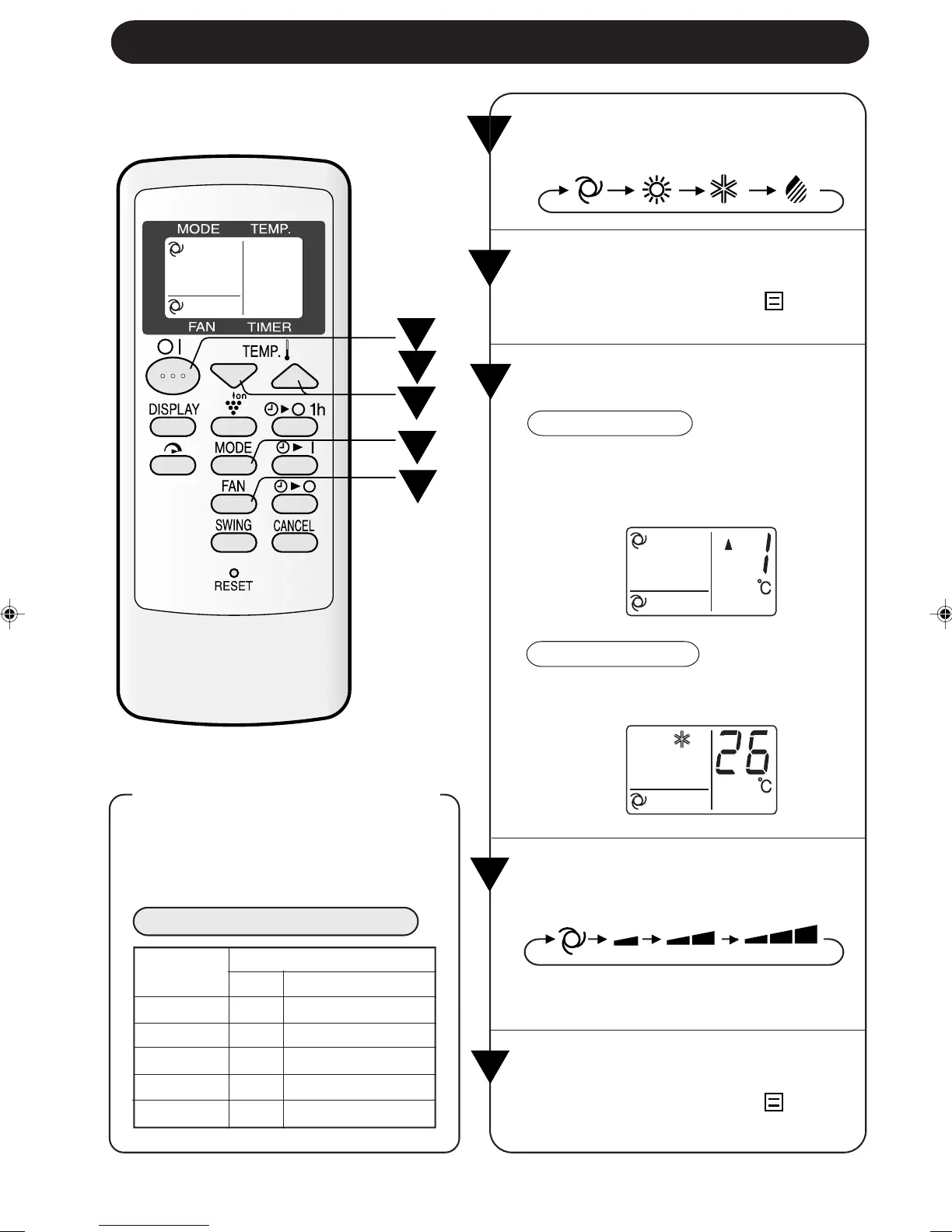

Press the TEMP. button to set the
desired temperature.
AUTO/DRY MODE
The temperature can be changed in 1°C
increments within the range of 2°C higher
to 2°C lower from the temperature auto-
matically determined by the air conditioner.
COOL/HEAT MODE
The temperature can be set within the
range of 18 to 32°C.
1
E-8
BASIC OPERATION
2
Press the ON/OFF button to start
operation.
• The red OPERATION lamp ( ) on the
unit will light.
3
4
Press the MODE button to select
the operation mode.
AUTO HEAT COOL DRY
5
Press the FAN button to set the
desired fan speed.
AUTO SOFT LOW HIGH
• In the DRY mode, the fan speed is pre-
set to AUTO and cannot be changed.
Automatic Operation
Mode Temperature Setting
Below 21°C HEAT 23°C
21°C-24°C DRY Room Temp. at start-up
24°C-26°C COOL 24°C
26°C-28°C COOL 25°C
Above 28°C COOL 26°C
Modes and Temperature Settings
Room temp.
at operation
start-up
TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature set-
ting and mode are automatically selected
according to the room temperature when
the unit is turned on.
To turn off the unit, press the ON/
OFF button again.
• The red OPERATION lamp ( ) on the
unit will turn off.
1
4
5
2
3

Sharp AY-AP9FHR Specifications

General

AC input voltage	220-240 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A
Annual energy consumption (cooling)	410 kWh
Hourly energy consumption (cooling)	3.8 kWh
Energy efficiency class (heating) (Warmer heating season)	-
Annual energy consumption (heating) (Warmer heating season)	- kWh
Type	Split system
Multi-split	Yes
Product color	White
Hose length (max)	10 m
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	820 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	855 W
Indoor unit depth	184 mm
Indoor unit width	810 mm
Indoor unit height	270 mm
Indoor unit weight	9000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	55 dB
Outdoor unit depth	250 mm
Outdoor unit width	730 mm
Outdoor unit height	540 mm
Outdoor unit weight	32000 g
Outdoor unit noise level	61 dB
