A
YXPC18LR
5 – 7

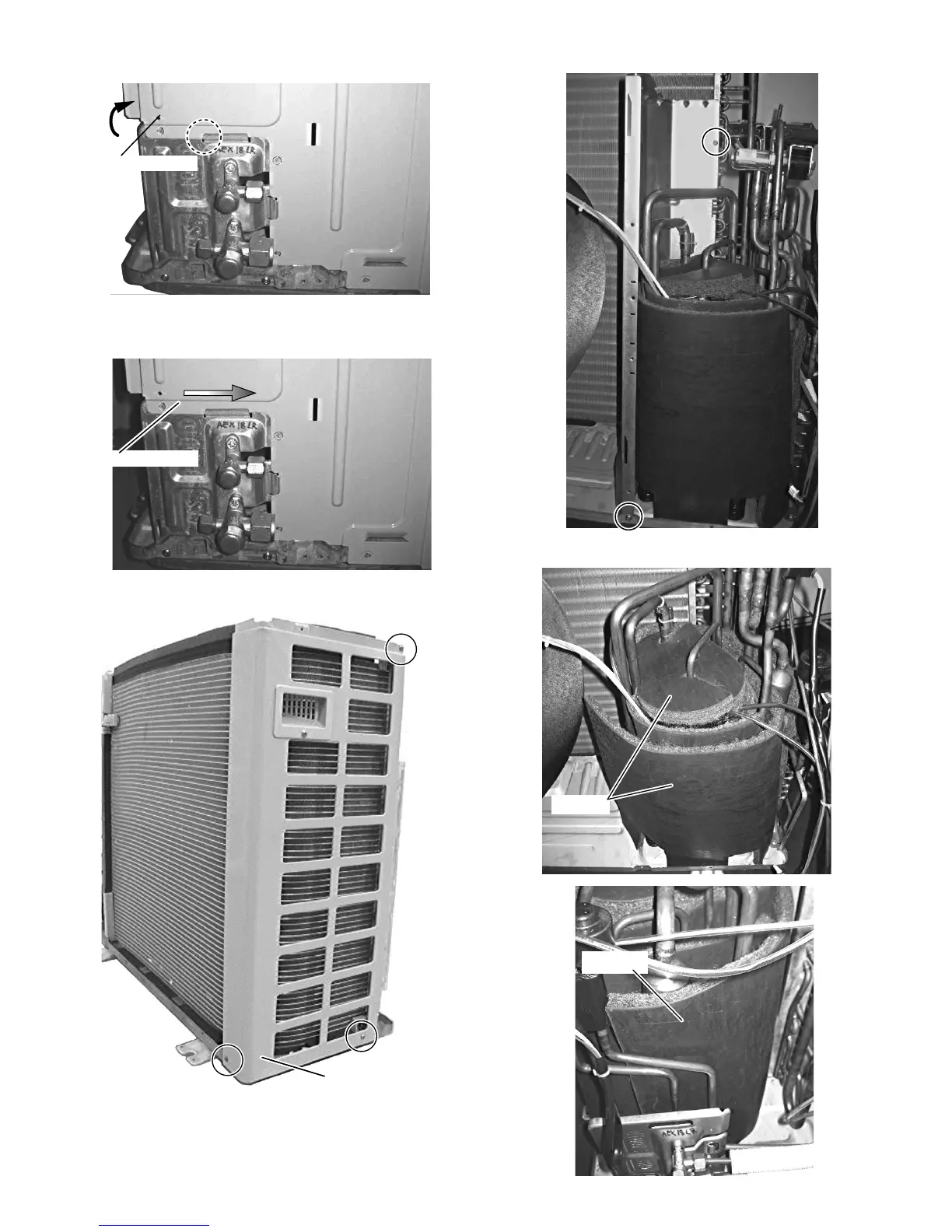

1)
T
ilt the side cabinet R, then remove the left side hook.
2)
Keep the above condition and remove the side cabinet R by
sliding to sideways.
12.
Remove the screws fixing
the
side cabinet L, then remove it.
13.Remove the 2
screws fixing the bulkhead, then remove it.
14.Remove the compressor covers(3pcs).
Side
cabinet
R
Side
cabinet
R
Side
cabinet
L
Remove
Remove
34
36
Table of Contents
Default Chapter
1
Table of Contents
1
Service Manual
1
Chapter 1. Product Specifications
2
Specification
2
External Dimentions
4
Wiring Diagrams
6
Electrical Parts
6
Chapter 2. Explanation of Circuit and Op- Eration Block Diagrams
7
Microcomputer Control System
9
Function
14
Startup Control
14
Full Power Operation
16
Self Clean Operation
16
Energy Saving Operation
17
Chapter 3 . Function and Operation of Pro-
20
Troubleshooting Guide
20
Tective Procedures 1] Troubleshooting Guide
20
Chart
21
Chapter 4. Refrigeration Cycle
26
Refrigeration Cycle
26
Performance Curves
27
Refrigerant Pipe Installation Works
28
Chapter 5. Disassembling Procedure
29
Indoor Unit
29
Outdoor Unit
33
Parts List
39
