CHAPTER 4. DISASSEMBLY PROCEDURE
Be sure to disconnect the power cord from the AC power outlet before starting the disassembly procedure.
Be sure to install screws to their original positions after repairing
After the air conditioner is repaired or parts are replaced, measure insulation resistance of the equipment using an insulation resistance meter. If the
measured resistance is lower than 1 MΩinspect parts and repair or replace defective parts.
[1] INDOOR UNIT

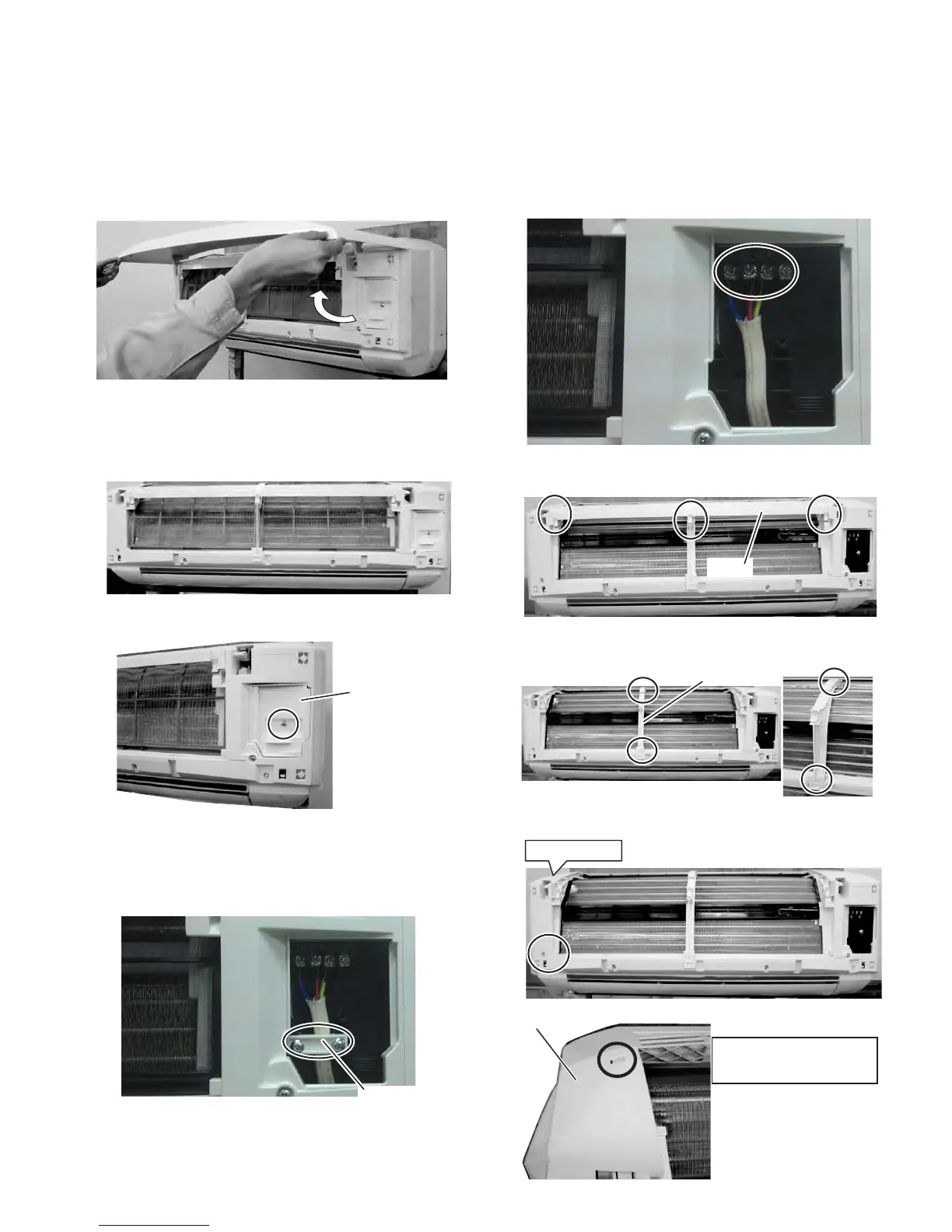

1. Open the open panel to the horizontal position and remove with
pulling it forward.
2. Remove the 2 air filters.
3. Unscrew the screw fixing cable cover and remove it.
Cable cover
4. Unscrew the 2 screws and remove the cable holder.
Cable holder
5. Remove the connecting cable and power supply cable from termi-
nal board.
6. Remove the grille by releasing the 3 hooks.
Grille
7. Release the 2 hooks and remove the filter guide.
Filter guide
8 . Unscrew the screw fixing the front panel L and remove it.
Front panel L
Remove the front panel L
with pushing the hook
Front panel L
