Sharp BD-HP20S

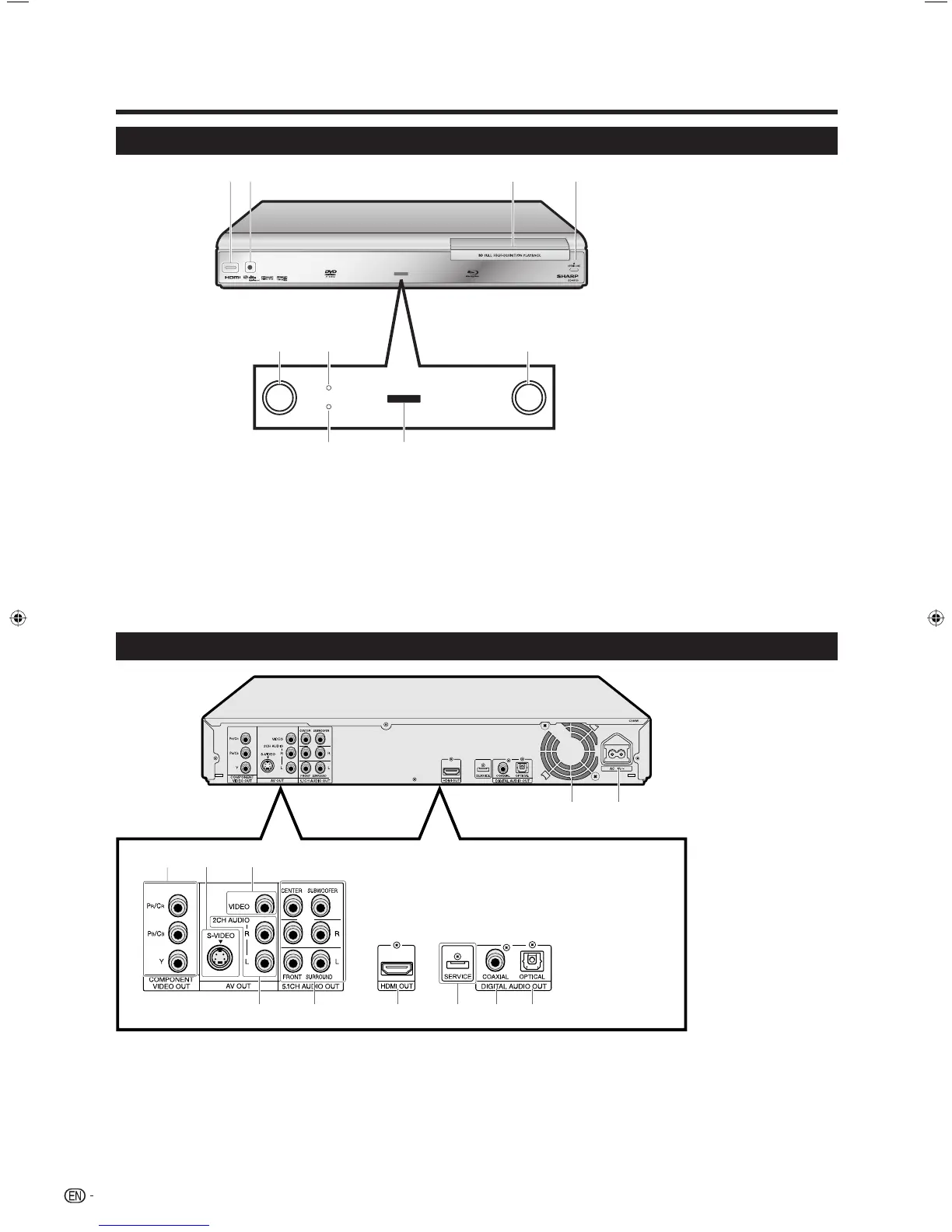

Major Components
Main Unit (Front)
765
8
21 43
9
1 B (POWER) (p. 23)
2 Remote control sensor (p. 21)
3 Disc tray (p. 25)
4 OPEN/CLOSE (p. 25)
5 DVD/CD mode indicator (p. 23)
6 BD mode indicator (p. 23)
7 I (ON) indicator (p. 23)
8 a (STANDBY) indicator (p. 23)
9 Front panel display (p. 23)
Main Unit (Rear)
1
4
865 711
2
3
9 10
1 COMPONENT VIDEO OUT jacks (p. 16)
2 S-VIDEO output jack (p. 17)
3 VIDEO output jack (p. 17)
4 2CH AUDIO output jacks (p. 20)
5 5.1CH AUDIO OUT jacks (p. 18)
6 HDMI OUT terminal (p. 15)
7 DIGITAL AUDIO OUT COAXIAL jack (p.19)
8 DIGITAL AUDIO OUT OPTICAL terminal (p. 19)
9 Cooling fan
The cooling fan operates while the power to the Player
is on.
10 AC IN terminal (p. 21)
11 SERVICE terminal for software (p. 46)
12
