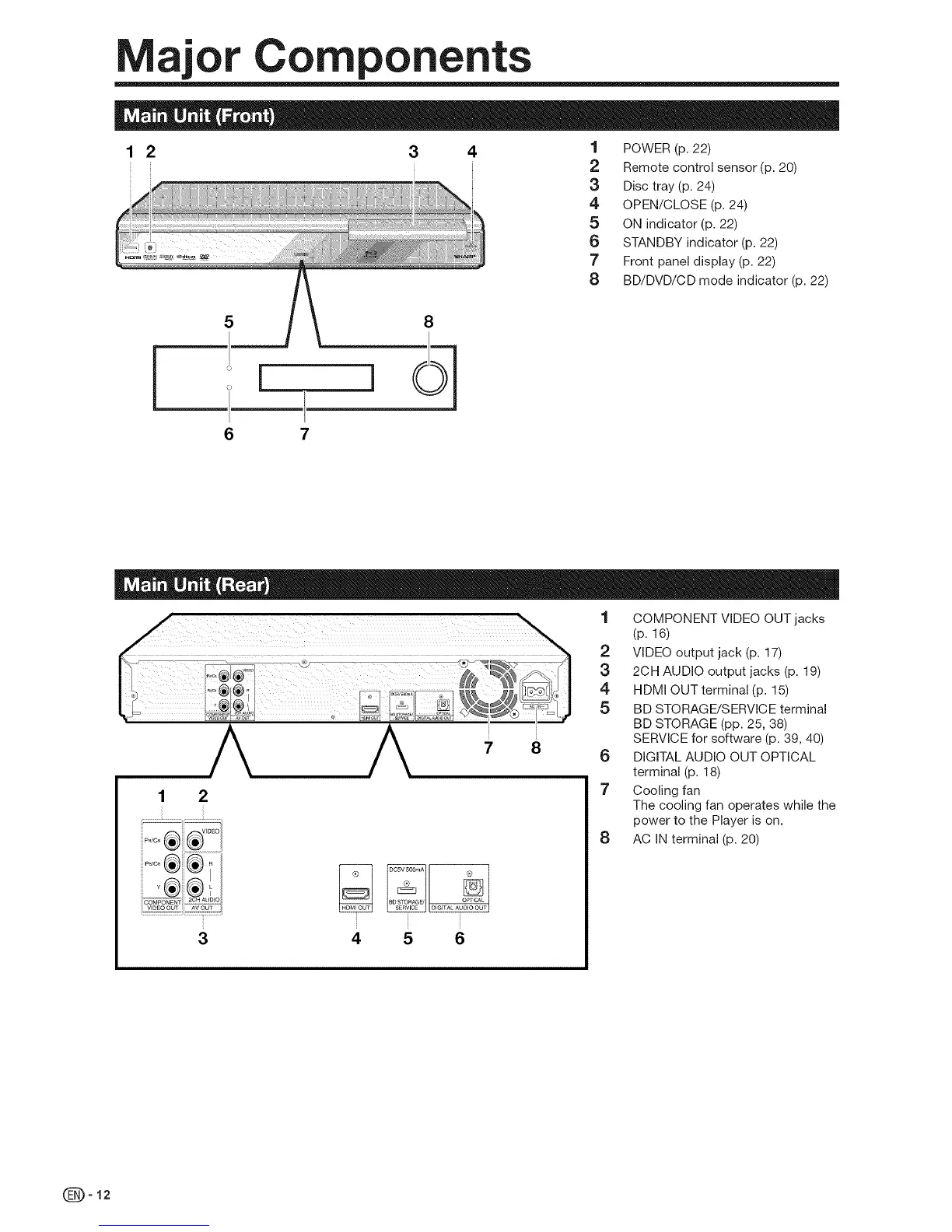

ajor Components
1 2 3 4 1 POWER(p.22)
2 Remote control sensor (p. 20)
3 Disc tray (p. 24)
4 OPEN/CLOSE (p. 24)
5 ON indicator (p. 22)
6 STANDBY indicator (p. 22)
7 Front panel display (p. 22)
8 BD/DVD/CD mode indicator (p. 22)
5
[
6 7
1
7
2
3 4 5 6
1 COMPONENT VIDEO OUT jacks
(p. 16)
2 VIDEO output jack (p. 17)
3 2OH AUDIO output jacks (p. 19)
4 HDMI OUT terminal (p. 15)
5 BD STORAGE/SERVICE terminal
BD STORAGE (pp. 25, 38)
SERVICE for software (p. 39, 40)
6 DIGITAL AUDIO OUT OPTICAL
terminal (p. 18)
7 Cooling fan
The cooling fan operates while the
power to the Player is on.
8 AC IN terminal (p. 20)
(_=12
