BEFORE USING THE MACHINE
17

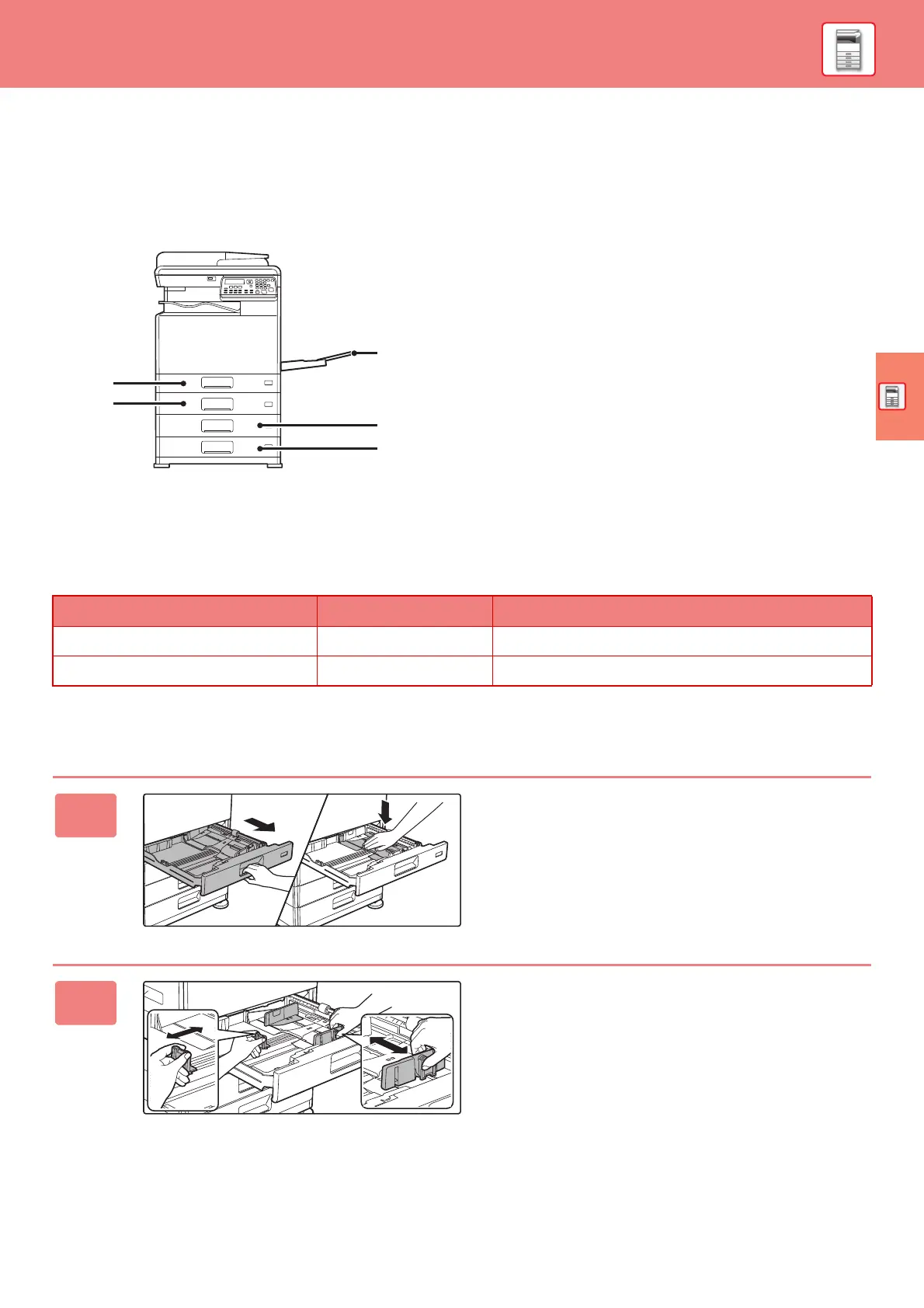

LOADING PAPER
NAMES AND LOCATIONS OF TRAYS
The names of the trays are as follows.
(1) Bypass tray
(2) Tray 1
(3) Tray 2 (when a 500-sheet paper feed tray is installed)
(4) Tray 3 (when a stand/2x500 sheet paper drawer is
installed)
(5) Tray 4 (when a stand/2x500 sheet paper drawer is
installed)
Setting orientation of the print side
The setting orientation varies for the print side of paper, depending on the tray used. For "Letter Head" and
"Pre-Printed", set the paper in the reverse orientation.
Place with the print side facing the direction indicated below.
LOAD PAPER INTO THE TRAY 1
(1)
(2)
(3)
(4)
(5)
Tray In normal status With letter head or pre-printed paper set
Trays 1 - 4 Facing up Facing down
Bypass tray Facing down Facing up
1
Pull out the paper tray.
Gently pull the tray out until it stops.
Push the centre of the pressure plate down until it locks into
place.
2
Adjust guide plates A and B to match
the longitudinal and transversal
dimensions of the paper to be loaded.
The guide plates A and B are slidable. Squeeze the
separator plate lever and slide to the desired paper size.
To Next Page
