CD-BK2100V
– 10 –
(D1)x2
ø3x10mm
(C1)x4
ø4x20mm
(B1)x4
ø4x16mm
Tweeter
Woofer
Front Panel
Sub Woofer
(C2)x1
Super
Tweeter
(E1)x4
ø3x10mm
(A1)x4
CP-BK2100
1 Front Panel 1. Front Panel ............ 10-3
2. Tip .......................... (A1) x4 10-4
2 Woofer 1. Screw ..................... (B1) x4 10-5
3 Sub Woofer 1. Screw ..................... (C1) x4 10-5
2. Sub Woofer Ring ... (C2) x1
4 Tweeter 1. Screw ..................... (D1) x2 10-5
5 Super Tweeter 1. Screw ..................... (E1) x4 10-4
STEP REMOVAL
PROCEDURE

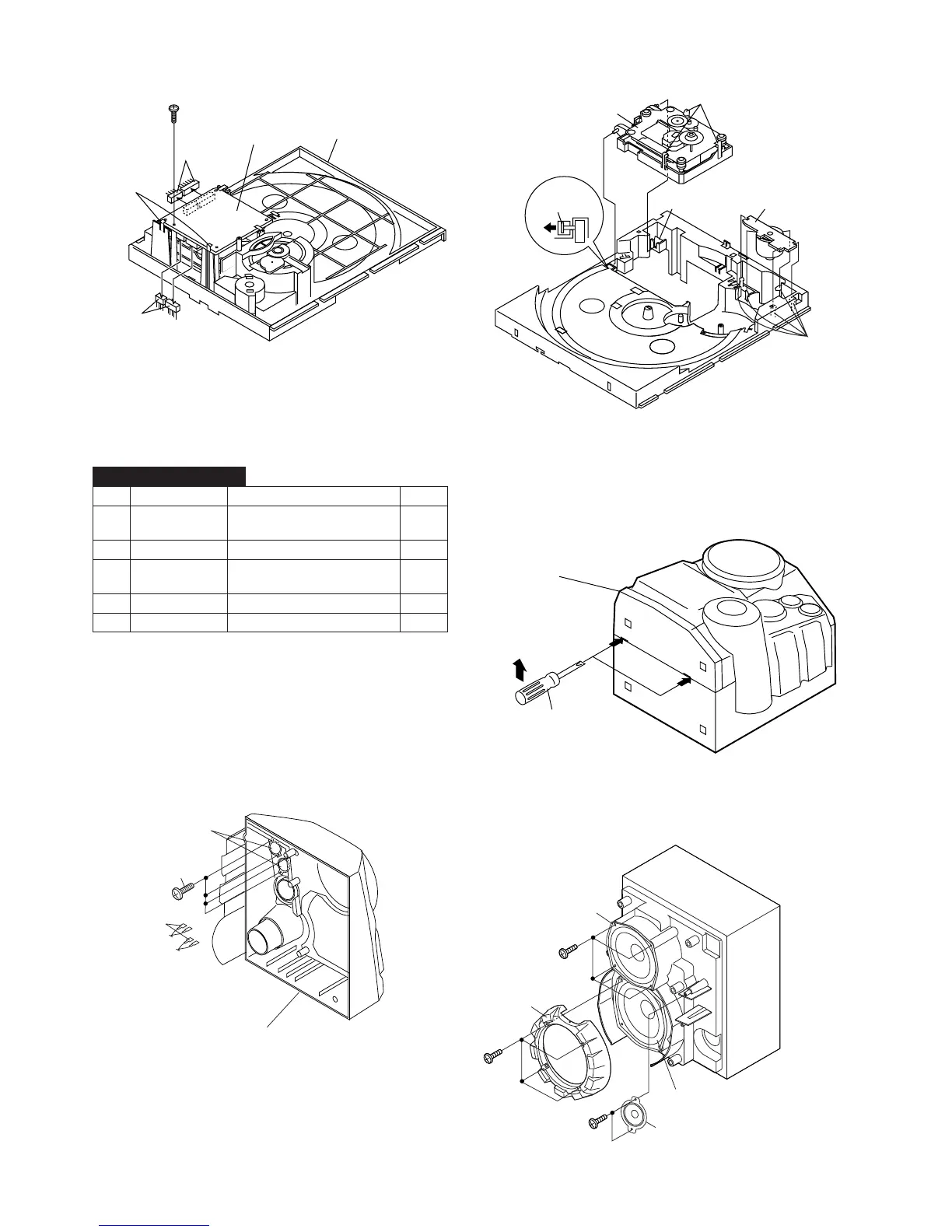

FIGURE
Figure 10-3
Figure 10-4
Figure 10-2
(Q2) x3
(Q1) x1
(R1) x5
(Q1) x1
Loading
Motor
PWB
CD
Mechanism
(P3) x2
(P2) x2
(P3) x2
CD Video
PWB
CD Player
Base
(P1)x1
ø3x8mm
Figure 10-1
Figure 10-5
Driver should
be pried away
from Speaker Box.
Screwdriver
Front Panel
