CD-C422/C422C/C2800/C2800C
– 10 –
How to remove the pickup (See Fig. 10-2)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.

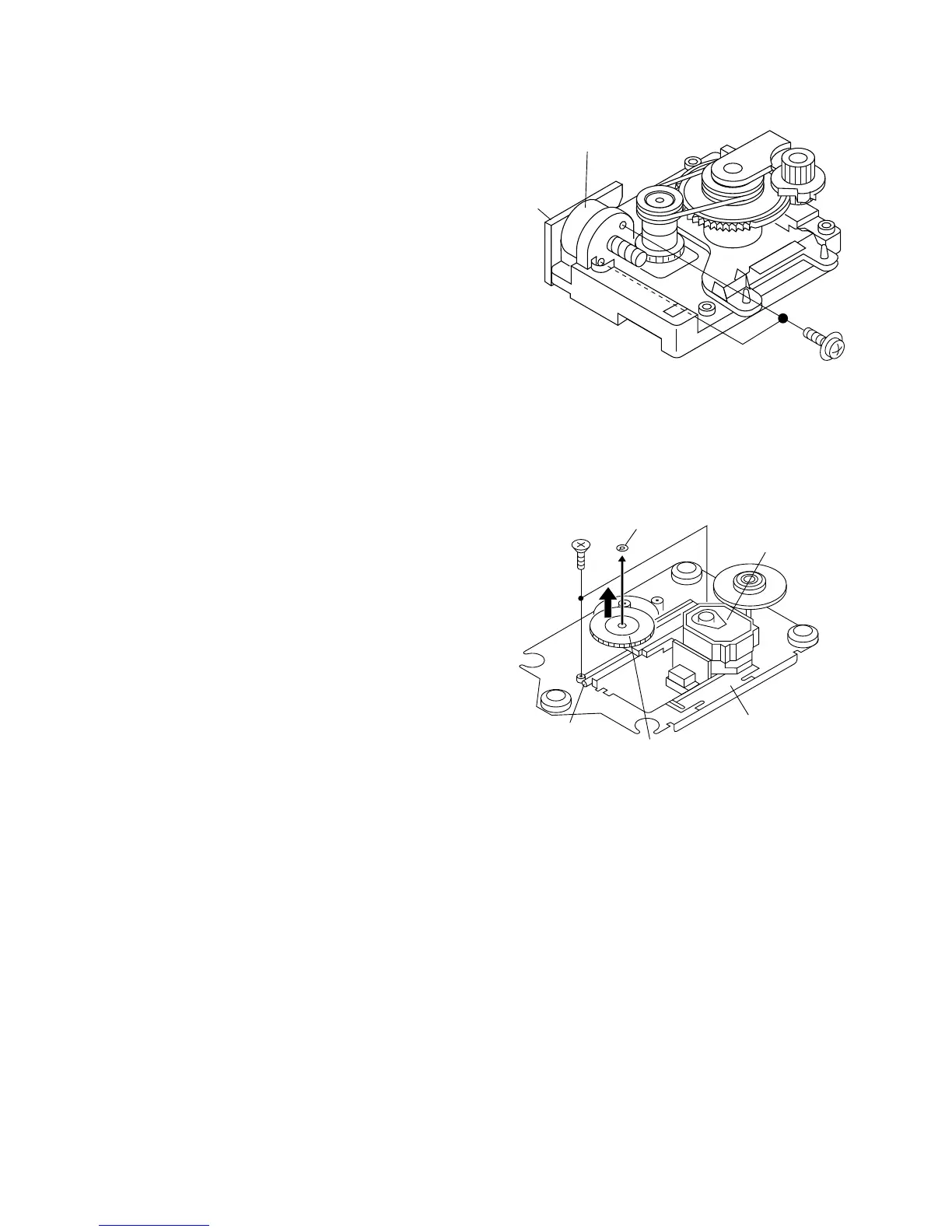

Figure 10-2
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 13 and 14 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 10-1)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 10-1
( A1 ) x2
ø2.6 x5mm
Loading Up / Down Motor
Motor
PWB
( B1 ) x2
ø2.6 x6mm
Shaft
( B2 ) x1
Stop Washer
( B3 ) x1
Gear
( B4 ) x1
CD Mechanism
Pickup
To Next Page
