– 9 –
CD-C290X

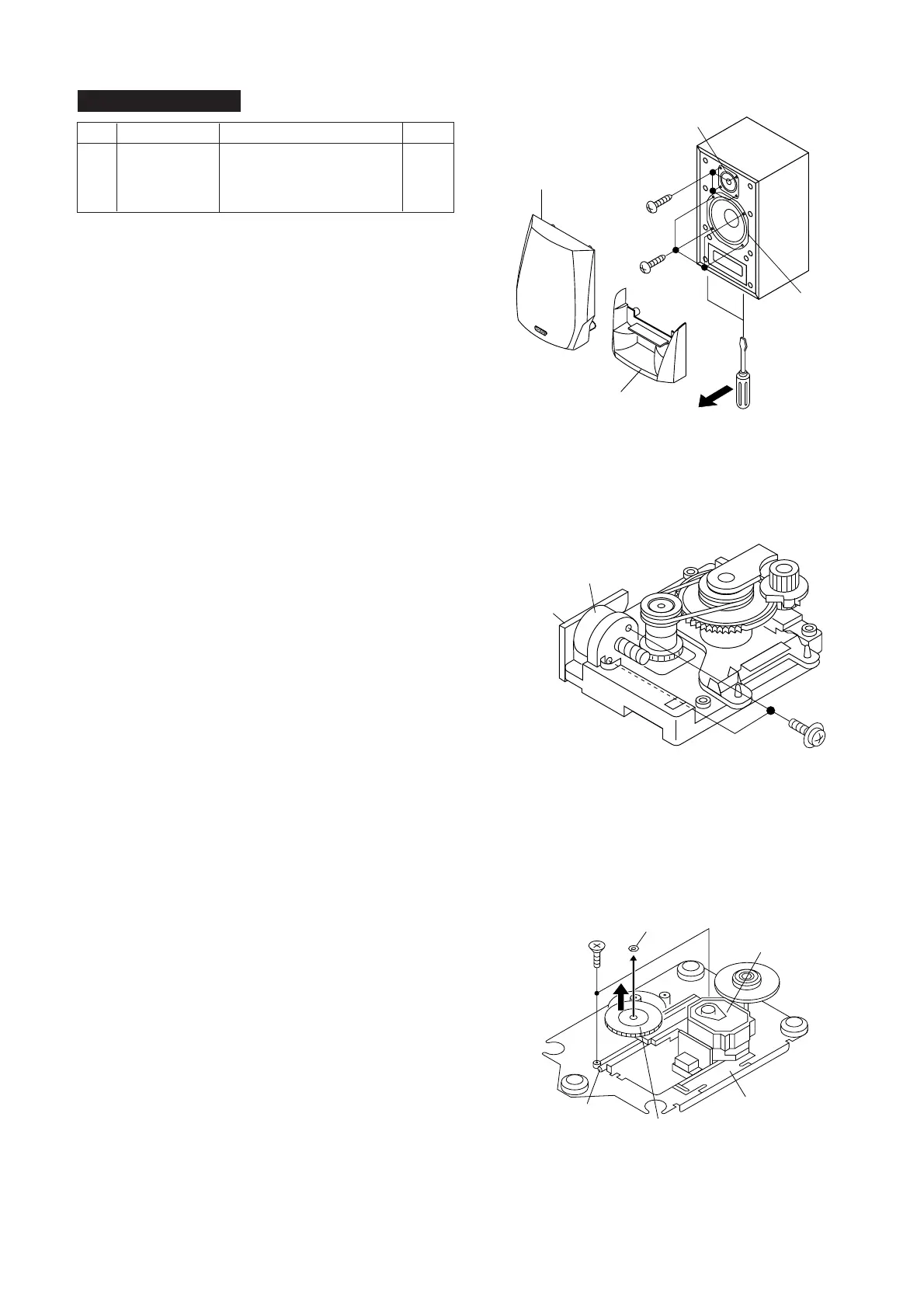

1 Front Speaker 1. Net Frame .............. (A1) x1 9-1
2. Duct Panel ............. (A2) x1
3. Screw ..................... (A3) x4
4. Screw ..................... (A4) x4
Figure 9-1
CP-C290X
STEP
REMOVAL PROCEDURE FIGURE
Notes:
The Surround speakers can be easily disassembled.Therefore
the disassembling method is not discribed.For details refer to
the disassembling drawing in the Parts Guide.
Figure 9-3
Figure 9-2
How to remove the pickup (See Fig. 9-3)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2)
x 1 pc.
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4) x 1 pc.
3. Remove the pickup.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 13 and 14 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 9-2)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
( A1 ) x2
ø2.6 x5mm
Loading / Up
/ Down Motor
Motor
PWB
( B1 ) x2
ø2.6 x6mm
Shaft
( B2 ) x1
Stop Washer
( B3 ) x1
Gear
( B4 ) x1
CD Mechanism
Pickup
Screwdriver
Woofer
Tweeter
Net Frame
( A1 ) x1
( A3 ) x4
ø4x14mm
( A4 ) x4
ø4x14mm
Duct Panel
( A2 ) x1
