IC2 VHiLC78622N-1: Servo/Signal Control (LC78622N) (2/2)
Function
Terminal Name Input/Output
50* SFSY (NC) Output Output terminal of synchronous signal of subcode frame. It drops when subcode stands by.
51 SBCK Input Clock input terminal to read subcode. Schmit input (Connected to 0V when not used.)
52* FSX (NC) Output Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.
53 WRQ Output Output terminal to stand by output of subcode Q.
54 RWC Input Input terminal of read/write. Schmit input.
55 SQOUT Output Output terminal of subcode Q.
56 COIN Input Command input terminal from microcomputer.
57 /CQCK Input Clock input terminal to fetch command input, or pick up subcode from SQOUT. Schmit input.
58 /RES Input Reset input terminal of LC78622. When turning on power, set it at "L".
59* TEST11 (NC) Output Output terminal for test. Used in the open state ("L" output as ordinary).
60* 16M (NC) Output Output terminal of 16.9344Hz.
61 4M Output Output terminal of 4.2336MHz.
62 TEST5 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
63 /CS Input Chip selection input terminal. Pull-down resistor is integrated.
Connected to 0when not controlled.
64 TEST1 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
Pin No.
Note: The same potential must be supplied to the power terminals (VDD, VVDD, LVDD, RVDD, XVDD).
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

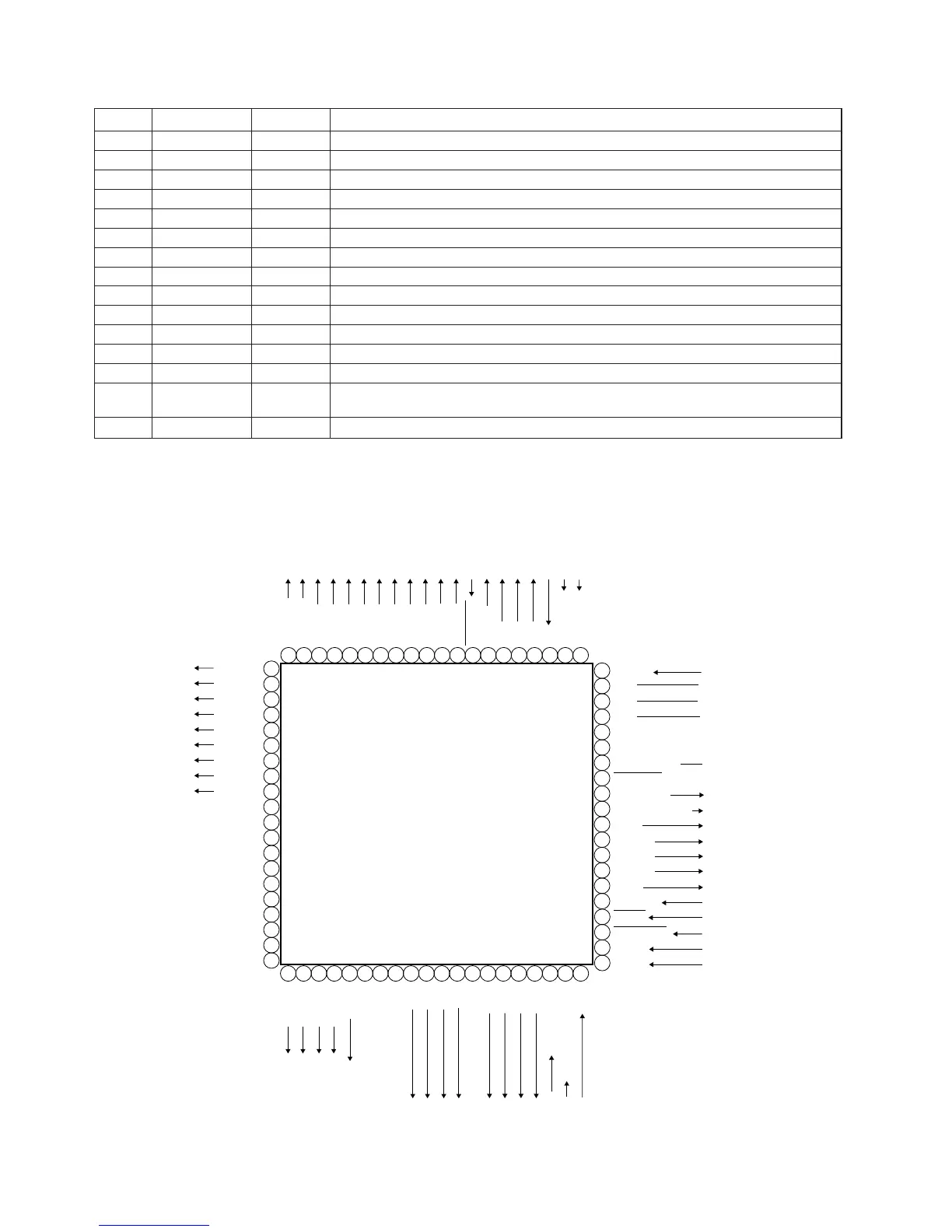

Figure 36 BLOCK DIAGRAM OF IC
IC701 RH-iX0217AWZZ: System Microcomputer (IX0217AW)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
LCD S11
LCD S10
LCD S9
LCD S8
LCD S7
LCD S6
LCD S5
LCD S4
LCD S3
LCD S2
LCD S1
LCD S0
RESET
P73
P72
P71
P70
P63
P62
P61
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
RESET
T1/T2
CE
D1
CL
D0
T1 PLAY
T2 PLAY
3635343332313029282726
2524
232221
6566676869707172737475
7677
787980
COM0
COM1
COM2
COM3
BIAS
VLC0
P40
P41
P42
(NC)VLC1
(NC)VLC2
P43
VSS
P50
P51
P52
40393837
P53
INT4
P01
P02
LCD COM0
LCD COM1
LCD COM2
LCD COM3
LCD BIAS
LCD VLC0
KI0
KI1
KI2
LCD VLC1
LCD VLC1
KI3
GND
KO0
KO1
KO2
KO3
REMOCON
SYSTEM STOP
DRF
61626364
P60
IX0217AW
X2
X1
IC
XT2(NC)
XT1(NC)
VDD(+5V)
P33
P32
P31
P30
P23
P22
P21
P20
P13
P12
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
P11
P10
P03
SPAN
SYSTEM CLOCK
SYSTEM CLOCK
CONNECT VDD
NC
NC
+5V
POWER(NC)
POWER
DSP RESET
SL-
COIN
CQCK
RWC
SL+
SQOUT
PUIN
DISC NO
REC
WRQ
44
43
42
41
LCD S12
LCD S13
LCD S14
LCD S15
LCD S16
LCD S17
LCD S18
LCD S19
LCD S20
LCD S21
LCD S22
LCD S23
LCD BP0
LCD BP1
LCD BP2
LCD BP3
LCD BP4
LCD BP5
LCD BP6
LCD BP7
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
