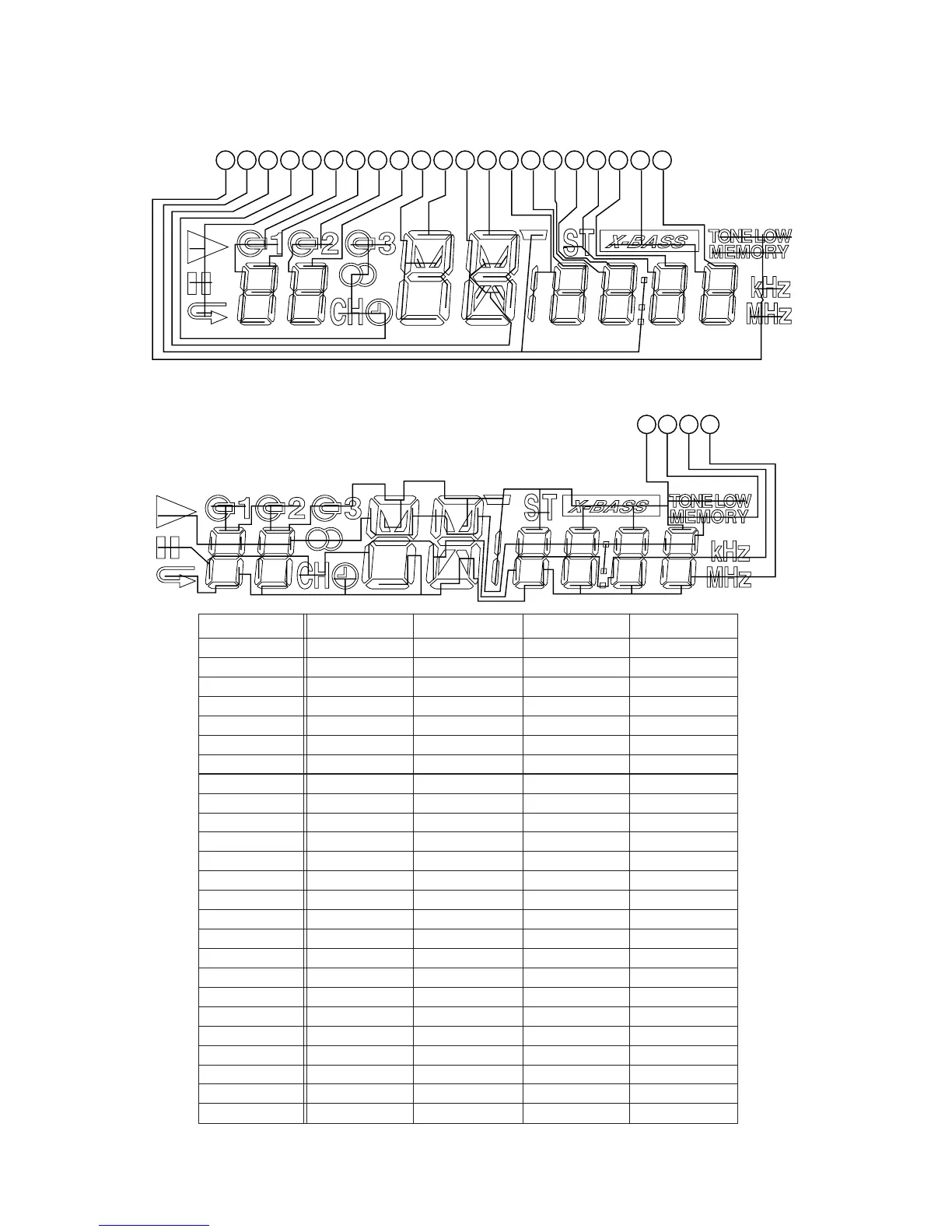

LCD701: RV-LX0024AWZZ LCD Display
SEGMENT
COMMON
Figure 38 LCD SEGMENT
SEG0
1
17
2
SEG1 SEG2
3
45
6
78
9
10
11 12
13
14 15 16 18 19 20 21
SEG3 SEG4 SEG5 SEG6
SEG7 SEG8 SEG9
SEG10
SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
SEG19
SEG20
COM0
22
COM1 COM2 COM3
23 24 25
1 TONE LOW MEMORY kHz MHz
2 X9 COL DP NC
34I4H4K4J
4X6X7CHX8
5NCX1X2X3
6X41F1E1D
71A1B1G1C
8X52F2E2D
92A2B2G2C
10 3H,3I 3F 3E 3D
11 3A 3B 3G 3C
12 NC 4F 4E 4D
13 4A 4B 4G 4C
14 5B,5C 6F 6E 6D
15 6A 6B 6G 6C
16 NC 7F 7E 7D
17 7A 7B 7G 7C
18 ST 8F 8E 8D
19 8A 8B 8G 8C
20 X-BASS 9F 9E 9D
21 9A 9B 9G 9C
22 COM1 NC NC NC
23 NC COM2 NC NC
24 NC NC COM3 NC
25 NC NC NC COM4
COM1 COM2PIN
COM3
COM4
