1 Front Panel 1. Net.......................... (A1) x1 9-1
2. Rubber ................... (A2) x4
3. Screw ..................... (A3) x4
4. Tip .......................... (A4) x2 9-2
2 Woofer 1. Screw ..................... (B1) x4 9-2
3 Tweeter 1. Screw ..................... (C1) x4 9-2
STEP REMOVAL
PROCEDURE
FIGURE

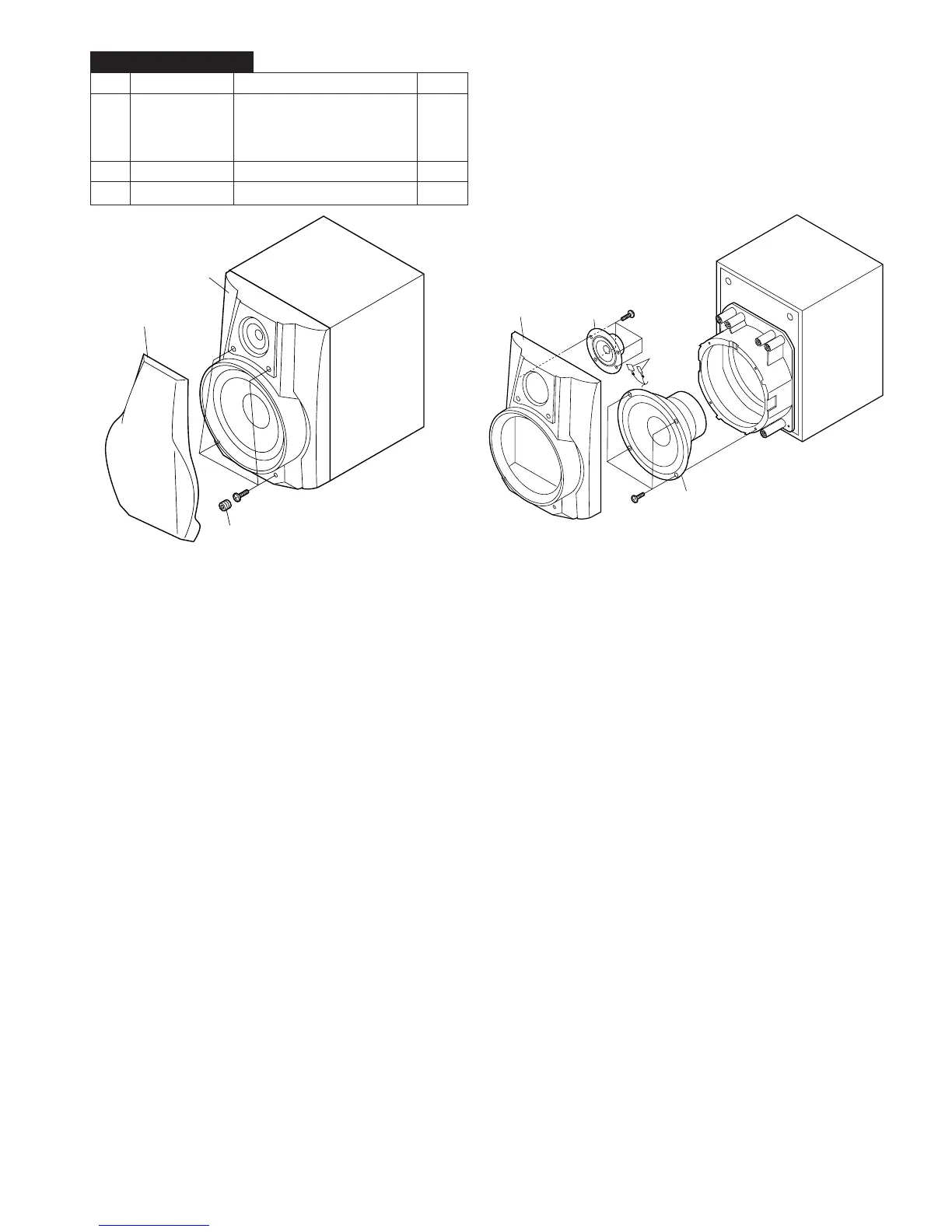

Figure 9-1
(A1)x1
Front Panel
(A3)x4
ø4x16mm
(A2)x4
Front Panel
Tweeter
(C1)x4
ø3x10mm
Woofer
(B1)x4
ø4x16mm
(A4)x2
Figure 9-2
