Sharp CD-DD4500 Service Manual

– 13 –
CD-DD4500

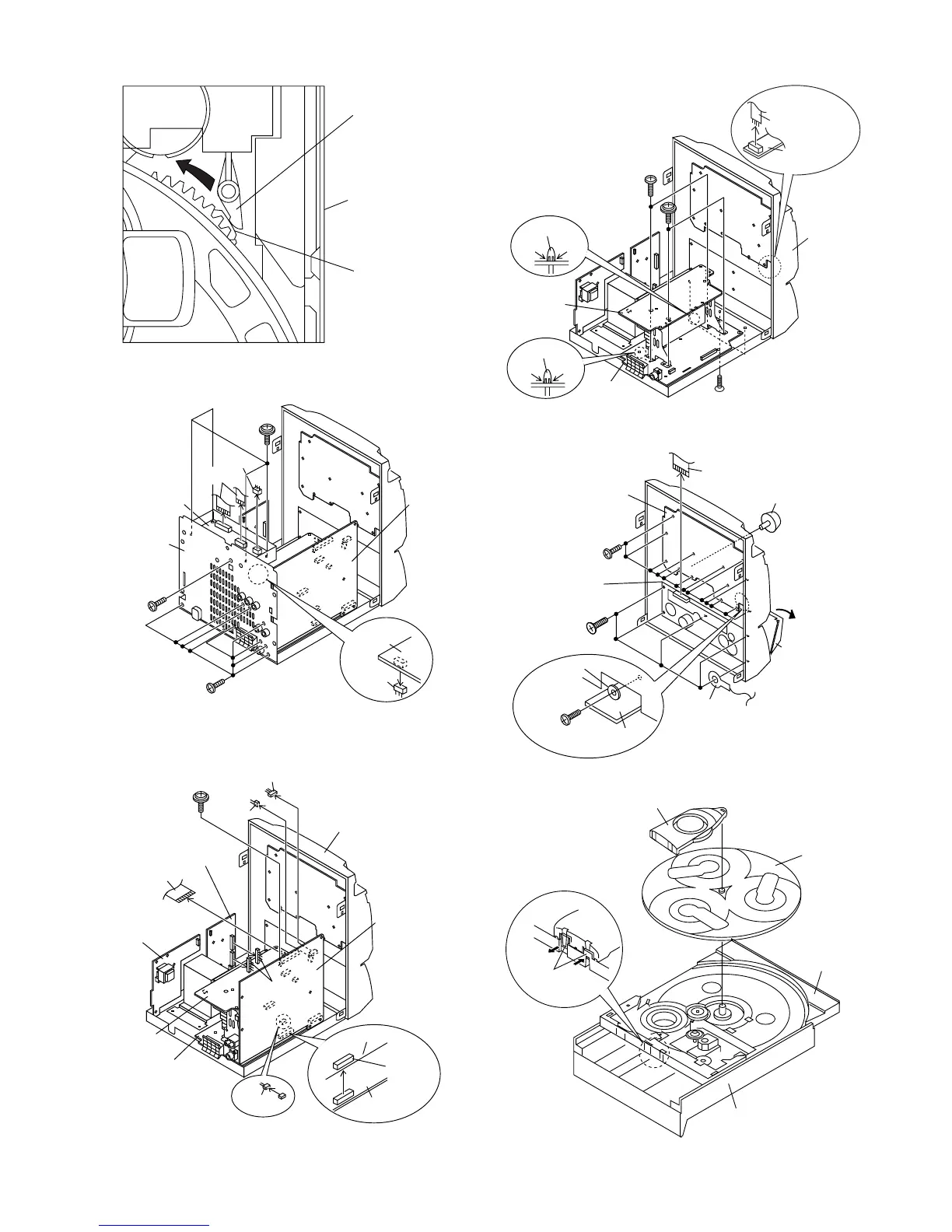

Figure 13-1
Figure 13-2
Figure 13-3
Figure 13-5
Figure 13-6
Clamp Lever
CD Player Unit
(Top View)
Cam Gear Rib
Turntable
Slide
Chassis
(M2) x 1
CD Player Unit
(M1) x 2
Main PWB
Amp. A
PWB
Amp. A
PWB
Amp. B
PWB
(F3) x 1
Main PWB
Transformer
PWB
Front
Panel
(F2) x 1
Power PWB
(F3) x 2
(F3) x 1
(F3) x 1
(F1) x 1
ø3 x 10mm
(F3) x 1
Main PWB
Amp. B
PWB
Dolby
PWB
(E2) x 1
(D2) x 2
(C4) x 1
(E1) x 9
ø3 x 10mm
Rear
Panel
(D1) x 1
ø3 x 10mm
(D1) x 4
ø3 x 10mm
(J3) x 1
(J2) x 13
ø3 x 10mm
(K1) x 5
ø3 x 10mm
(J1) x 1
Display PWB
Headphones
PWB
Open
Cassette
Holder
Tape
Mechanism
(L1) x 1
ø3 x 10mm
Lug Wire
Washer
(H1) x 3
ø3 x 8mm
Headphones
PWB
(G2) x 1
Amp. A
PWB
Amp. B
PWB
Front
Panel
(G1) x 2
ø3 x 6mm
(G1) x 2
ø3 x 10mm
(G3) x 1
PushPush
(G3) x 1
PushPush
Figure 13-4
