Sharp CD-DD4500 - Page 14

CD-DD4500
– 14 –

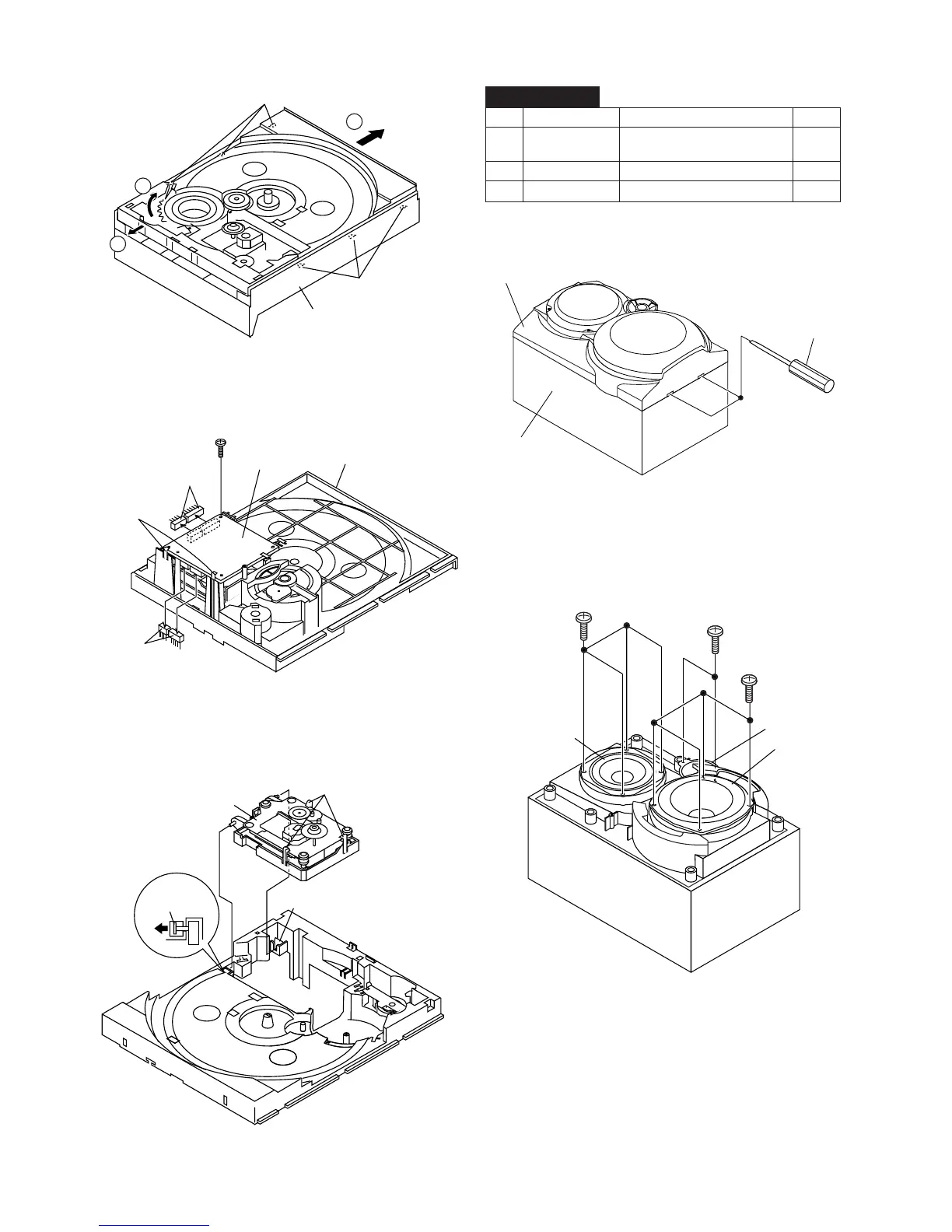

Figure 14-2
Figure 14-3
Figure 14-5
(P3) x 2
(P2) x 2
(P3) x 2
CD Servo
PWB
Slide
Chassis
(P1) x 1
ø3 x 8mm
(Q2) x 3
(Q1) x 1
(Q1) x 1
CD
Mechanism
Figure 14-1
1
3
2
(N1) x 3
(N1) x 3
CD Player Unit
(C1) x 2
ø3 x 10mm
Woofer
Subwoofer
Tweeter
(A2) x 4
ø4 x 16mm
(B1) x 4
ø4 x 16mm
1 Subwoofer 1. Front Panel ............ (A1) x1 14-4
2. Screw ..................... (A2) x4 14-5
2 Woofer 1. Screw ..................... (B1) x4 14-5
3 Tweeter 1. Screw ..................... (C1) x2 14-5
STEP
REMOVAL PROCEDURE
FIGURE
Figure 14-4
CP-DD4500
Screwdriver
Driver should
be pried away
from Speaker Box.
(A1) x 1
Speaker Box
