Preparation for Use

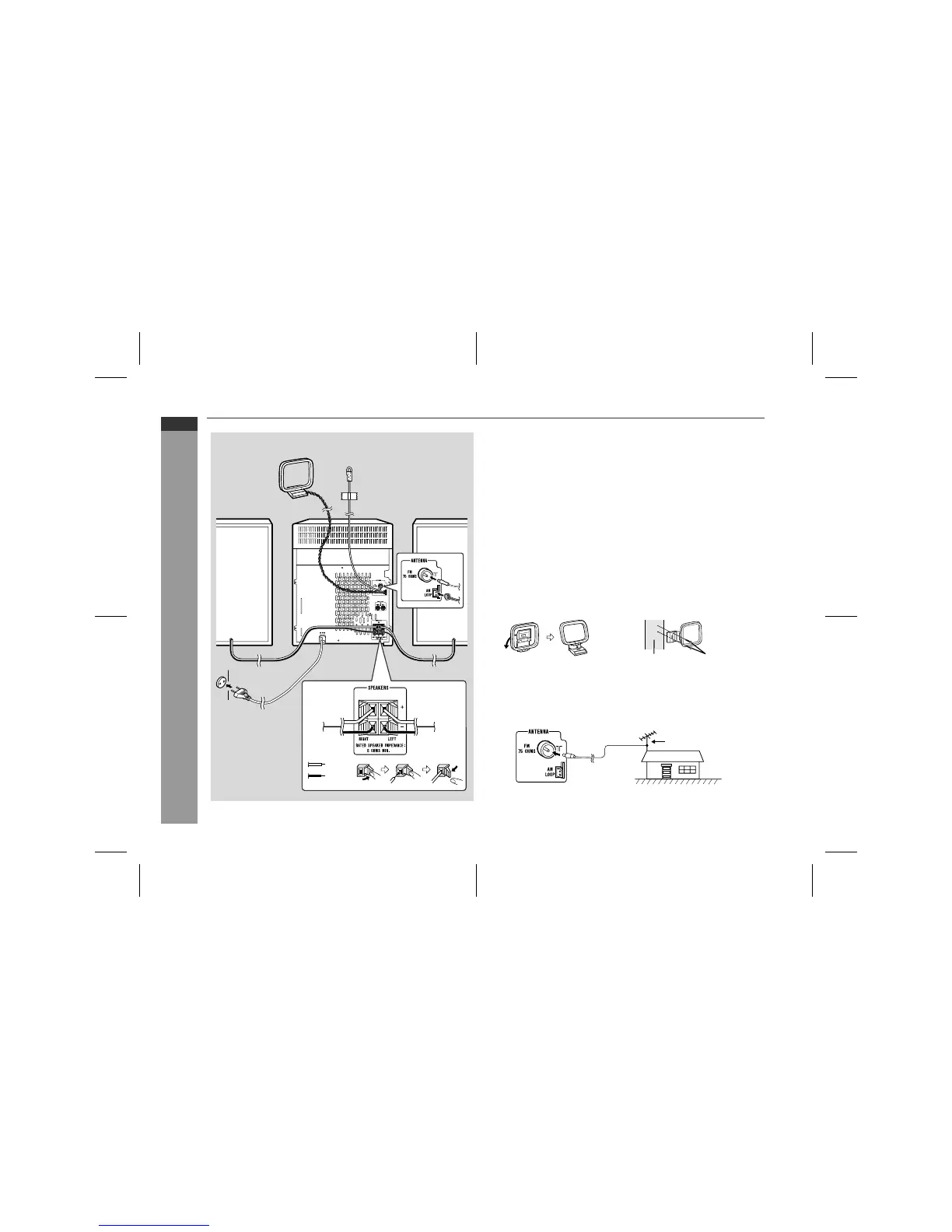

System connections
! Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS socket and position
the FM aerial wire in the direction where the strongest signal can be
received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM LOOP socket. Position the
AM loop aerial for optimum reception. Place the AM loop aerial on a
shelf, etc., or attach it to a stand or a wall with screws (not supplied).
Note:
Placing the aerial on the stereo system or near the AC power lead
may cause noise pickup. Place the aerial away from the stereo sys-
tem for better reception.
Installing the AM loop aerial:
External FM aerial:
Use an external FM aerial if you require better reception. Consult
your dealer.
Black
Red
AM loop aerial
FM aerial
Left speaker
Right speaker
Wall socket
(AC 230 V, 50 Hz)
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
External FM aerial
