References
Maintenance

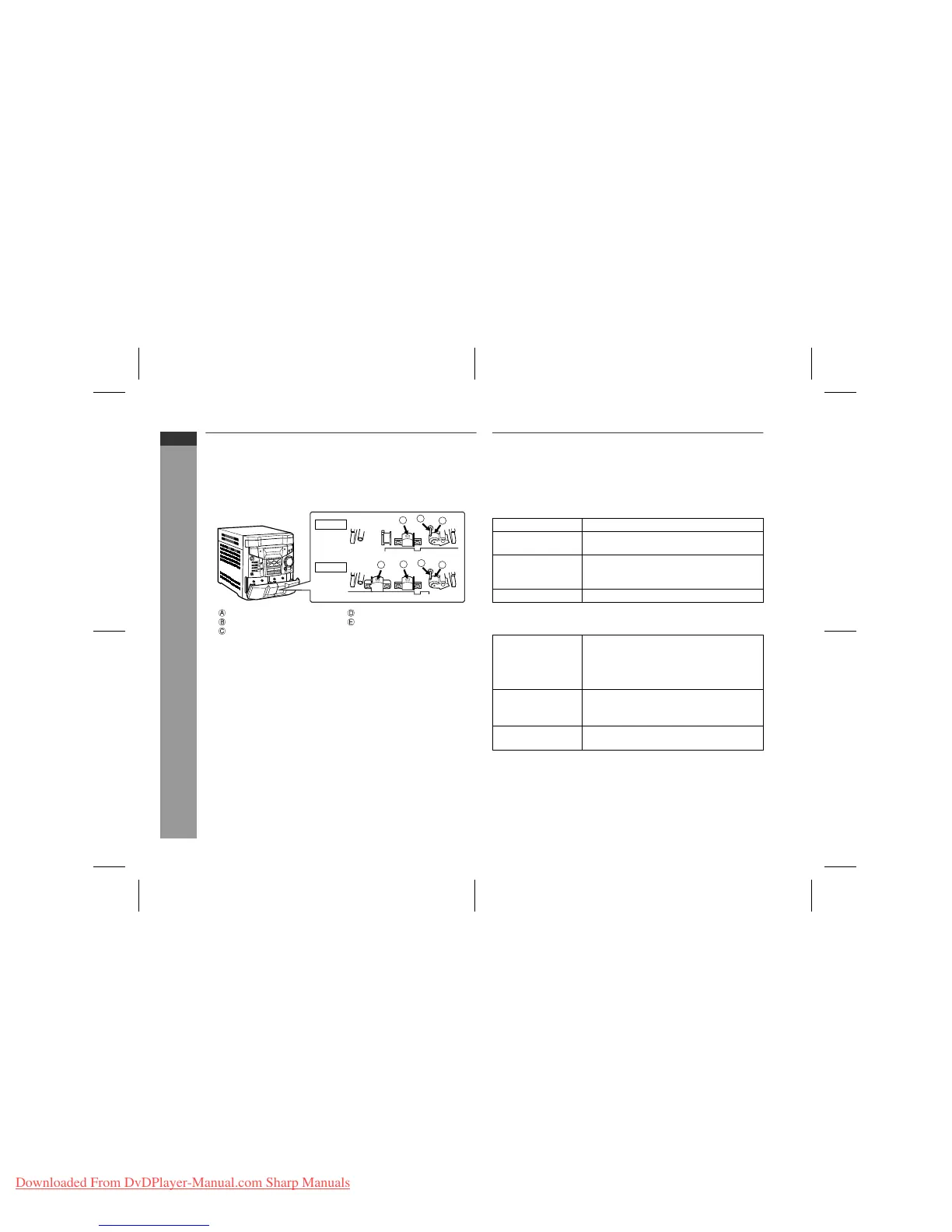

Cleaning the tape-handling parts
z
Dirty heads, capstans or pinch rollers can cause poor sound and
tape jams. Clean these parts with a cotton swab moistened with
commercial head/pinch roller cleaner or isopropyl alcohol.
z
When cleaning the heads, pinch rollers, etc., unplug the unit which
contains high voltages.
z
After long use, the deck's heads and capstans may become mag-
netised, causing poor sound. Demagnetise these parts once ev-
ery 30 hours of playing/recording time by using a commercial tape
head demagnetiser. Read the demagnetiser's instructions care-
fully before use.
Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap so-
lution, then with a dry cloth.
Caution:
z
Do not use chemicals for cleaning (petrol, paint thinner, etc.). It
may damage the cabinet finish.
z
Do not apply oil to the inside of the unit. It may cause malfunc-
tions.
Specifications
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product im-
provement without prior notice. The performance specification fig-
ures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
General
Amplifier
Playback head Erase head
Capstan Recording/Playback head
Pinch roller
TAPE 1
TAPE 2
B
C
A
D
B
C
E
Power source AC 230 V, 50 Hz
Power
consumption
34 W
Dimensions Width: 270 mm (10-5/8")
Height: 305 mm (12")
Depth: 342 mm (13-1/2")
Weight 5.5 kg (12.1 lbs.)
Output power PMPO: 60 W
MPO: 30 W (15 W + 15 W) (DIN 45 324)
RMS: 20 W (10 W + 10 W) (DIN 45 324)
RMS: 14 W (7 W + 7 W) (DIN 45 500)
Output terminals Speakers: 8 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 k
ohms
To Next Page
